Chapter 4
Installing Additional Components and Configuring
Converting SCSI From Simplex to Duplex
67
• Align the bracket tabs with the slots on the side of the disk drive cage.
• Press the bracket against the disk drive cage until the bracket locks into place.
• Align the connector of the duplex board with the connector on the SCSI backplane.
• Press the board connector into the backplane connector.
NOTE When the duplex board is installed properly, the board will be secured in the duplex board bracket.
The SCSI B cable will be connected to the connector at the immediate left of the duplex board.

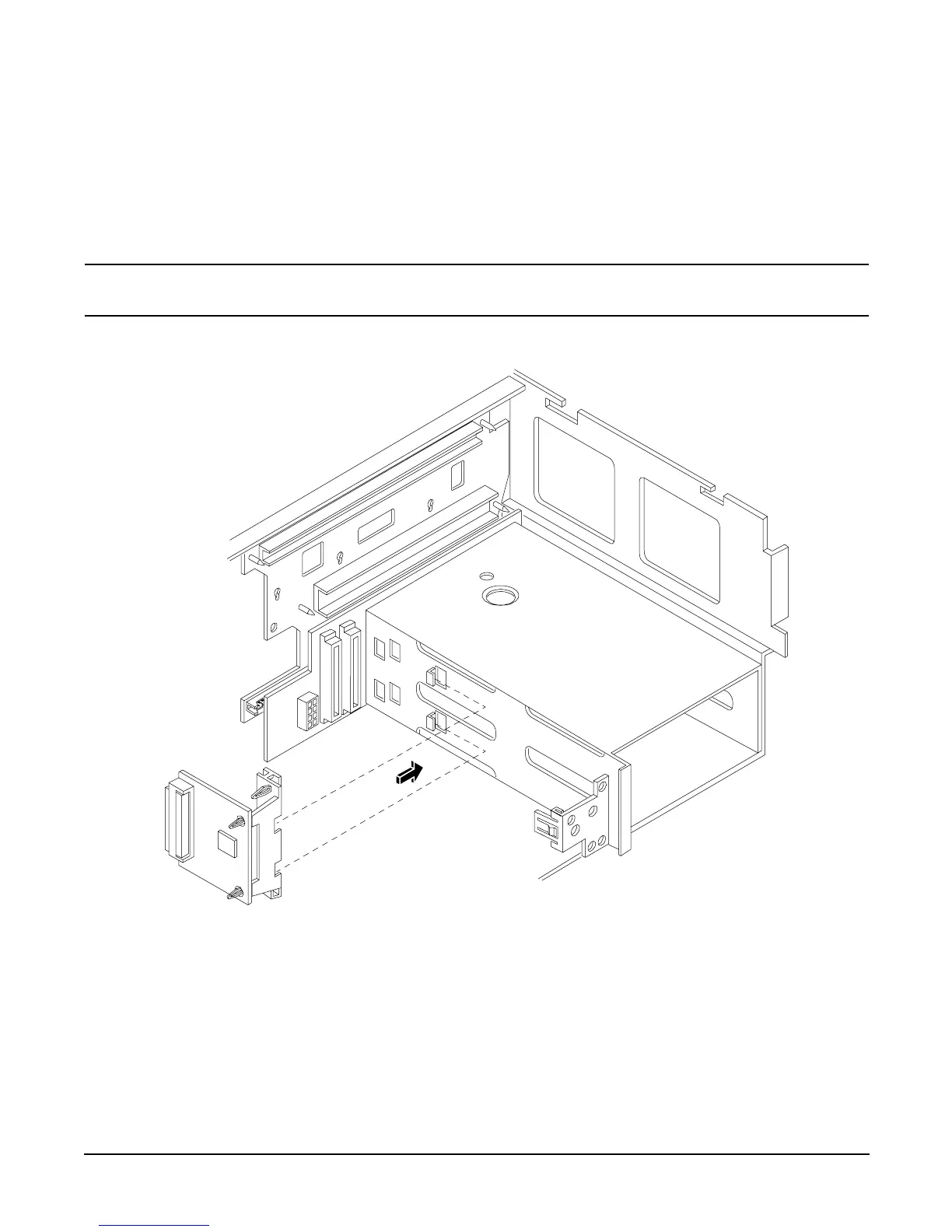

Figure 4-19Installing the Duplex Board
Step 3. Install the SCSI cable B to the SCSI backplane board. See Figure 4-20, “Installing SCSI Cable B to the SCSI
Backplane.”
• Release the SCSI B cable from its stowed position within the chassis.
To Next Page
