LED Indicators, Switches, and Jumpers
3
4
5
2
1

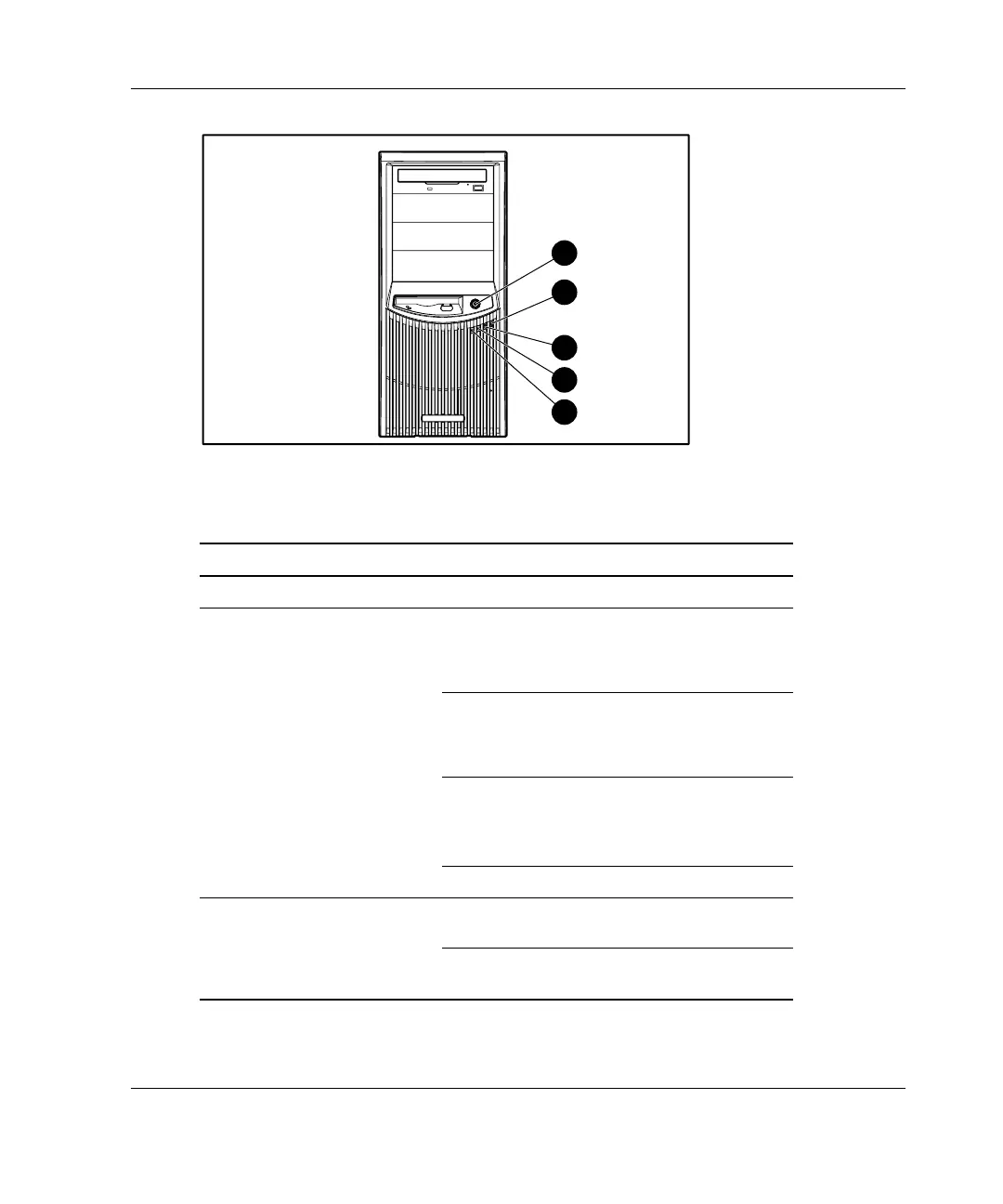

Figure E-1: Power button and server LEDs
Table E-1: Power Button and Server LEDs
Item Description Status Means
1 Power button N/A N/A
Green
flashing
Server is in standby mode.
Do not remove power from
the server.
2 Power On/Standby
LED
Green Server on, AC power OK.
Do not remove power from
server.
Amber AC power OK. Server
ready to be turned on. It is
safe to disconnect AC
power from server.
Off Server off, no AC power.
3 Hard drive LED On or
flashing
A hard drive is being
accessed.
Off No hard drive is currently
being accessed.
