Cabling Guidelines
68-to-50 pin SCSI Adapter
If installing a device that uses a Fast SCSI-2 interface, you must provide a 68-to-50
pin SCSI adapter (part number 199618-001). This adapter should be installed
between the 50-pin interface on the device and the 68-pin SCSI cable connected to
the SCSI channel on the system board.

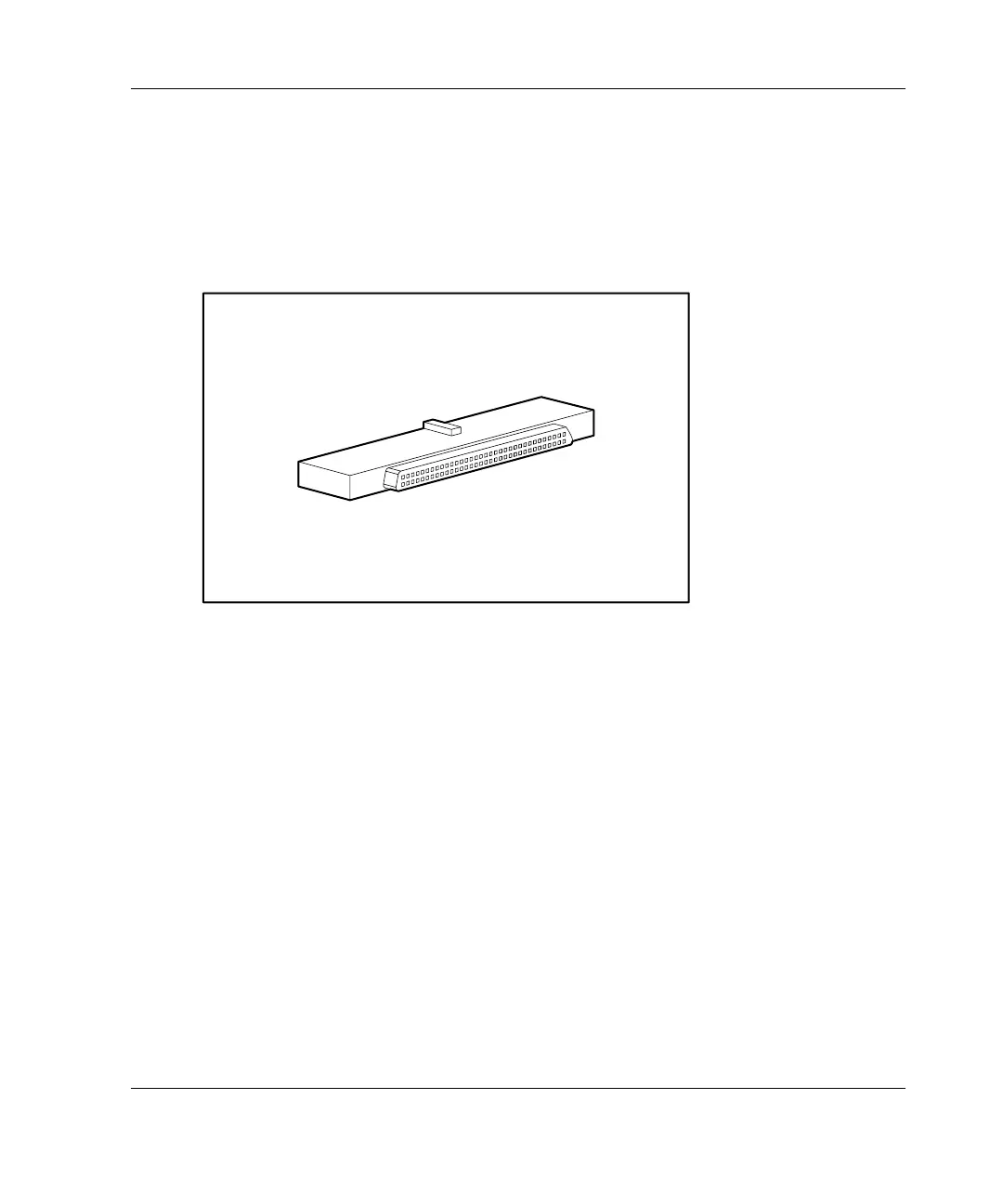

Figure 4-3: 68-to-50 pin (wide-to-narrow) SCSI adapter
HP ProLiant ML310 Server Setup and Installation Guide 4-5
