HP ProLiant ML310 - Figure 3-23: Releasing the Expansion Board Retainer; Figure 3-24: Installing an Expansion Board

Hardware Options Installation
3. If installing a full-length PCI card, release the expansion board retainer by
loosening the screw (1) and turning the retainer back towards the front of the
chassis (2).
1
2

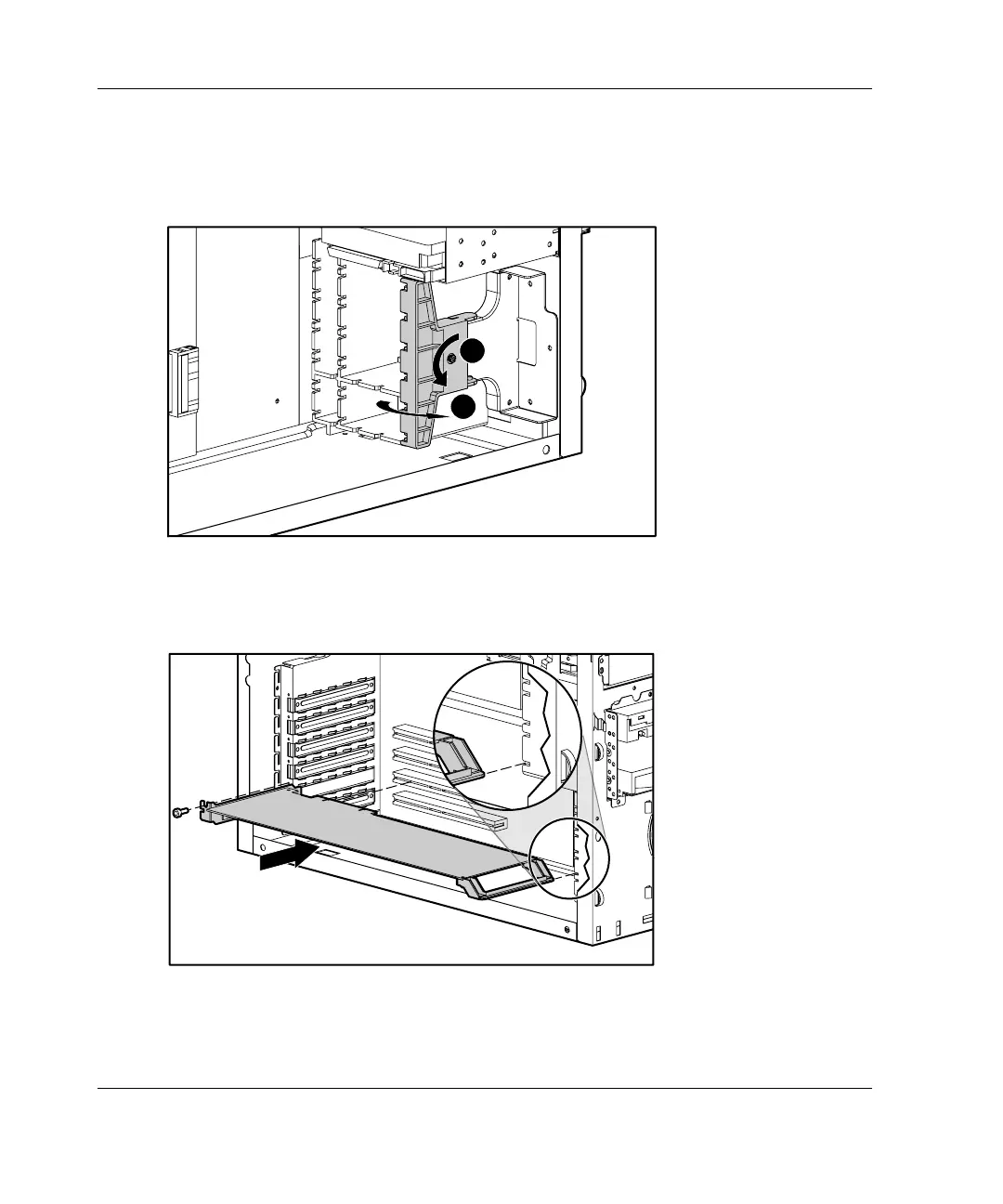

Figure 3-23: Releasing the expansion board retainer
4. Insert the expansion board into the slot, and then secure it with a screw on the top
of the board.
Figure 3-24: Installing an expansion board
3-26 HP ProLiant ML310 Server Setup and Installation Guide
