HP ProLiant ML310 - Front Panel Components; Figure 1-3: Front Panel Components; Table 1-2: Front Panel Components

Server Features
Front Panel Components

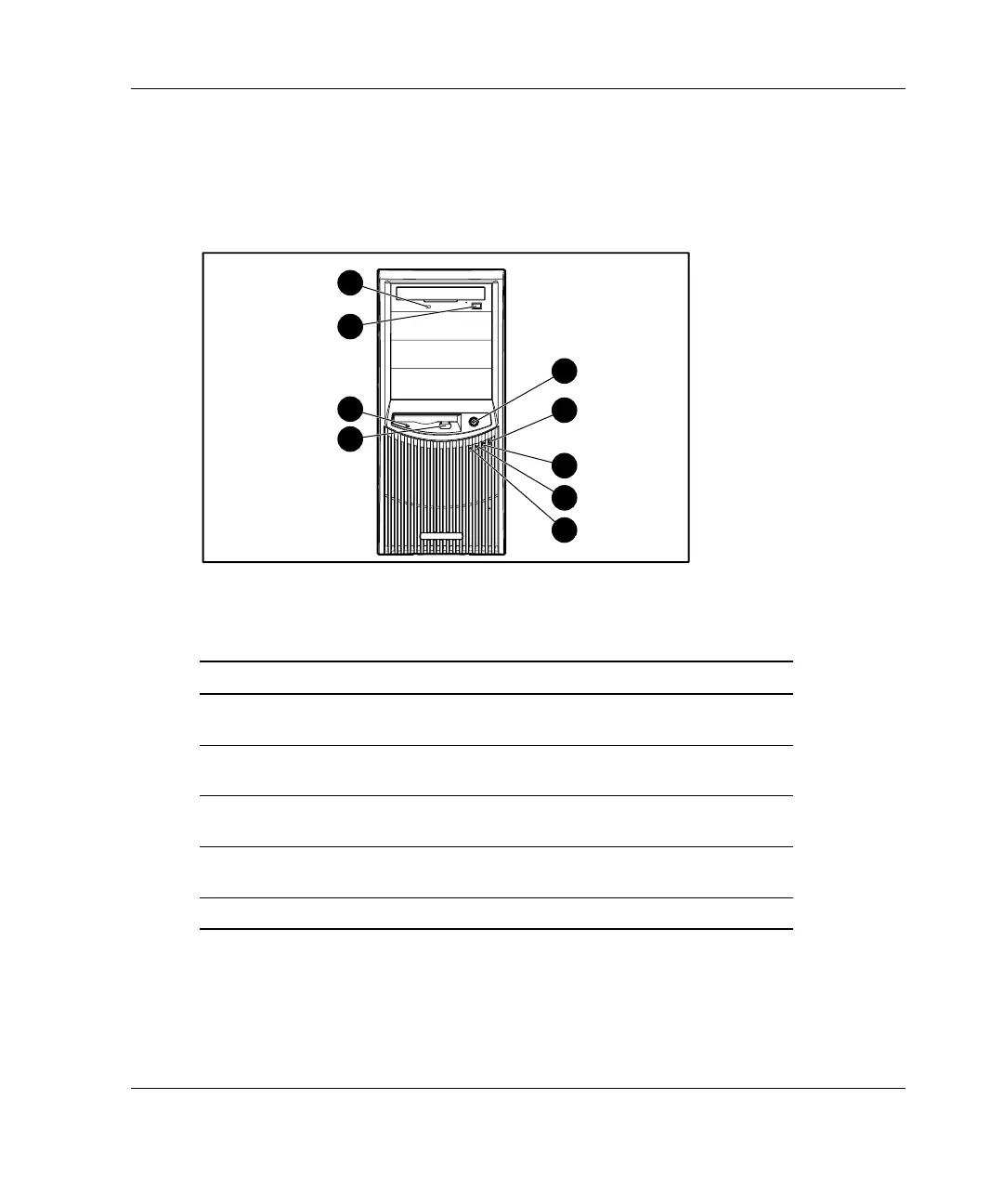

Figure 1-3 and Table 1-2 show the front panel components, including buttons and
LEDs.
9
8
7
6
3
4
5
2
1
Figure 1-3: Front panel components
Table 1-2: Front Panel Components
Item Component Item Component
1 Power button 6 Diskette drive eject
button
2 Power LED 7 Diskette drive activity
LED
3 Hard drive activity LED 8 CD-ROM drive eject
button
4 NIC link/activity LED 9 CD-ROM drive activity
LED
5 Internal health LED
