Hardware Options Installation
3. Remove the rails from the drive tray, and then install them onto the tape drive.
Using a Torx T-15 tool, remove the guide screws, (1) and then remove the rails
from a removable media bay blank (2).
1
1
2

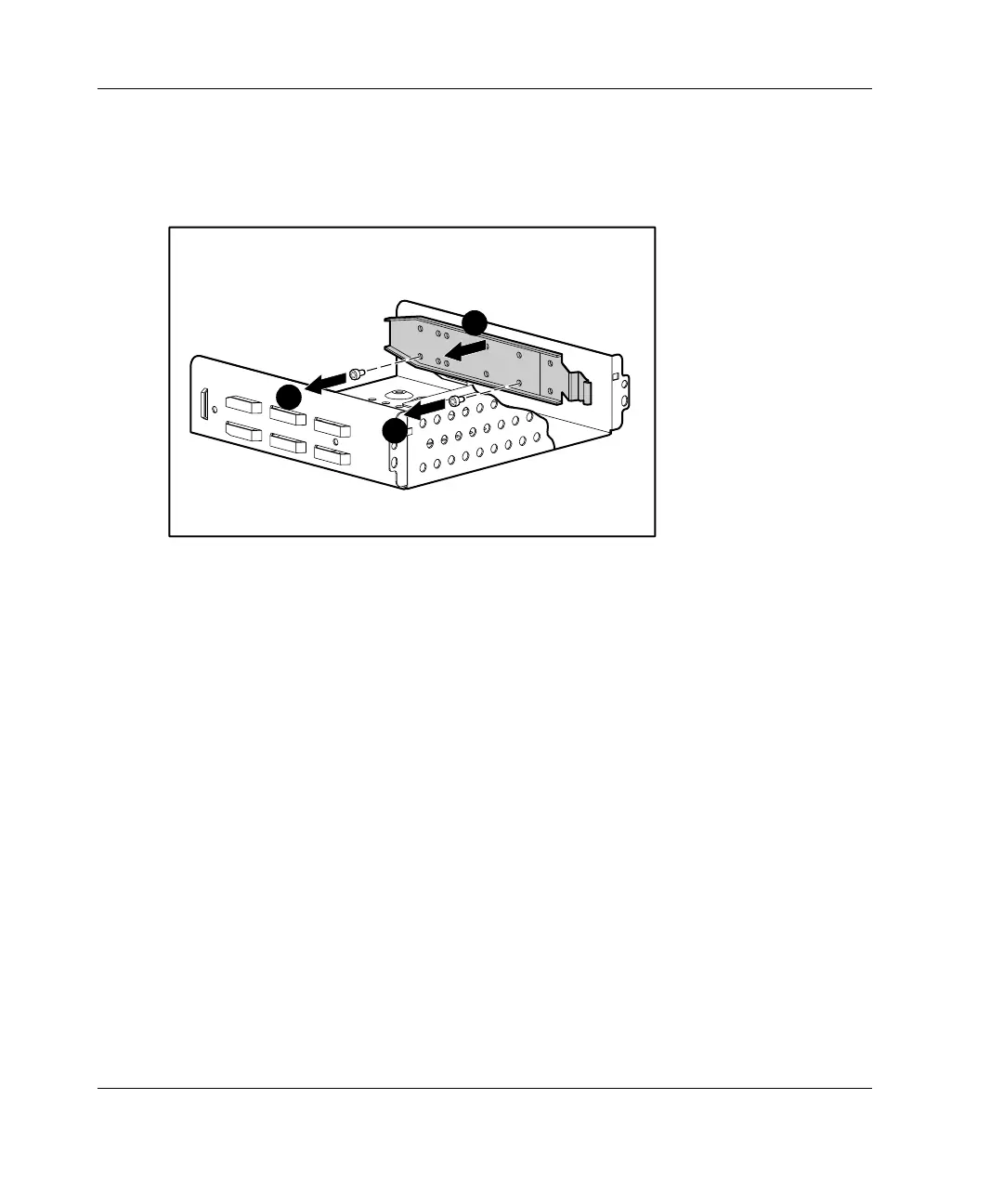

Figure 3-14: Removing the rails from the drive tray
Refer to “Removing a Drive Tray” in this chapter for more information.
3-18 HP ProLiant ML310 Server Setup and Installation Guide
HP CONFIDENTIAL
Writer: Ted Weiman File Name: d-ch3.doc
Codename: Son of Beast Part Number: 274431-002 Last Saved On: 11/22/02 1:58 PM
