HP ProLiant ML310 Setup And Installation Guide

Hardware Options Installation
Installing the Two-Bay Hot-Plug SCSI Drive Cage Into a Removable
Media Bay
To install the two-bay hot-plug SCSI drive cage into the removable media bay:
1. Remove the bezel that ships attached to the drive cage:
a. Using a Torx T-10 tool, loosen the two screws (1).
b. Remove the screws from the bezel (2).
c. Remove the bezel from the drive cage (3).
NOTE: For additional information about the two-bay hot-plug SCSI drive cage, refer to the HP
Internal Two-Bay Hot-Plug SCSI Drive Cage Installation Instructions.
3
2
2
1
1

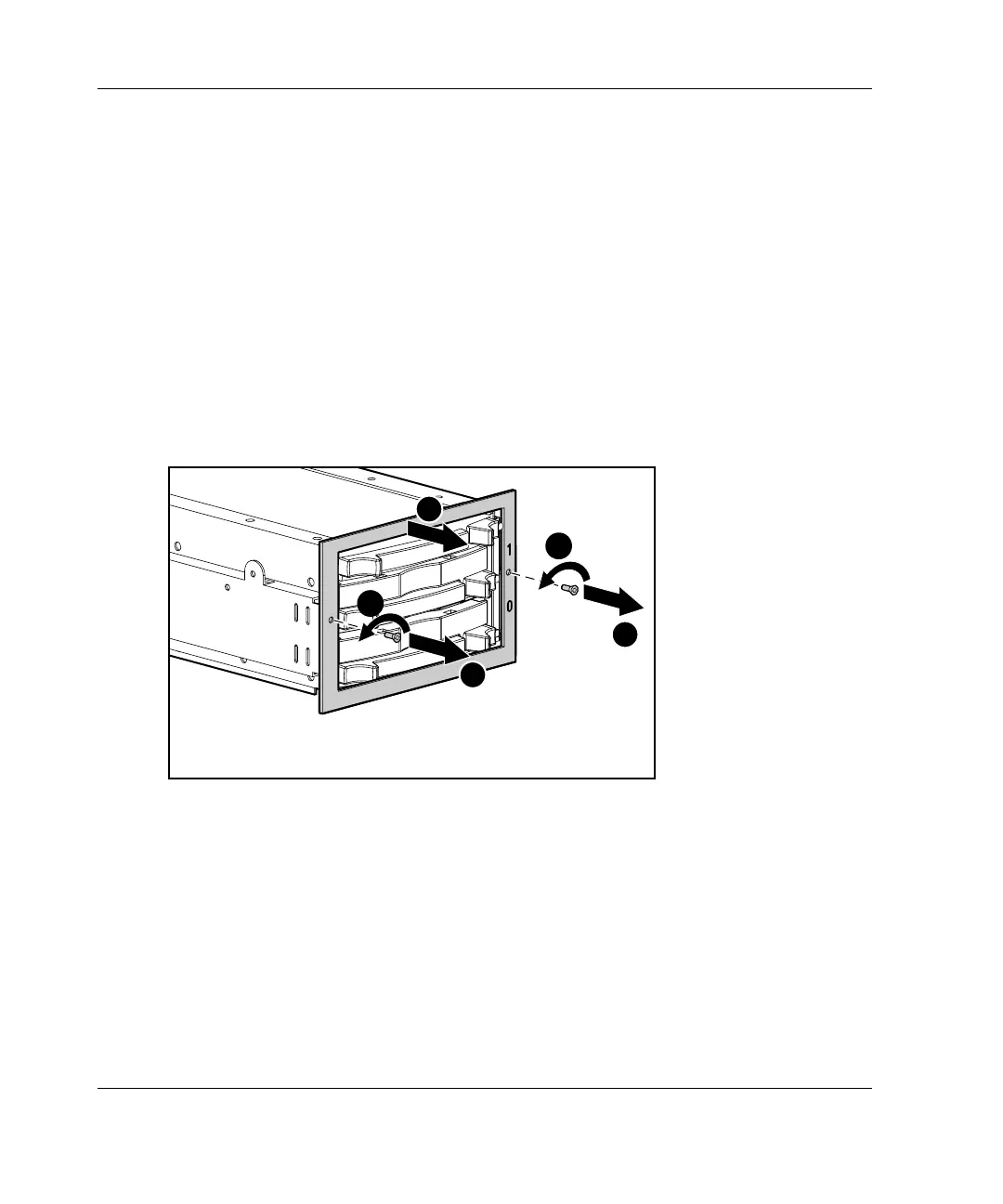

Figure 3-16: Removing the bezel from the drive cage
IMPORTANT: Be sure that the unit identification numbers (0 and 1) appear on the right side
of the drive cage front panel.
For identification purposes, the number 2 appears on the back of the bezel shipped with the
option kit.
2. Reverse step 1 to install the bezel from the Two-Bay Hot-Plug SCSI Drive Cage
option kit.
