HP ProLiant ML310 Setup And Installation Guide

Cabling Guidelines
Cabling ATA/100 RAID Devices
To connect cables from an Integrated ATA/100 RAID controller to an internal ATA
hard drive:
1. Install the device. Refer to “Installing a Hard Drive into a Removable Media
Bay” or “Installing a Tape Drive or Other Removable Media Device,” in
Chapter 3 for instructions.
2. Be sure that the jumper on the drive or device is set to Cable Select (CS).
3. Secure the next available cable connector to the hard drive or ATA device.
Figure 4-10 and Table 4-4 show the cabling configuration when four ATA hard
drives are installed. If fewer than four drives are installed, then follow this
cabling sequence.
IMPORTANT: Do not connect devices other than hard drives to the connectors on the
ATA/100 RAID controller.
2
4
1
3

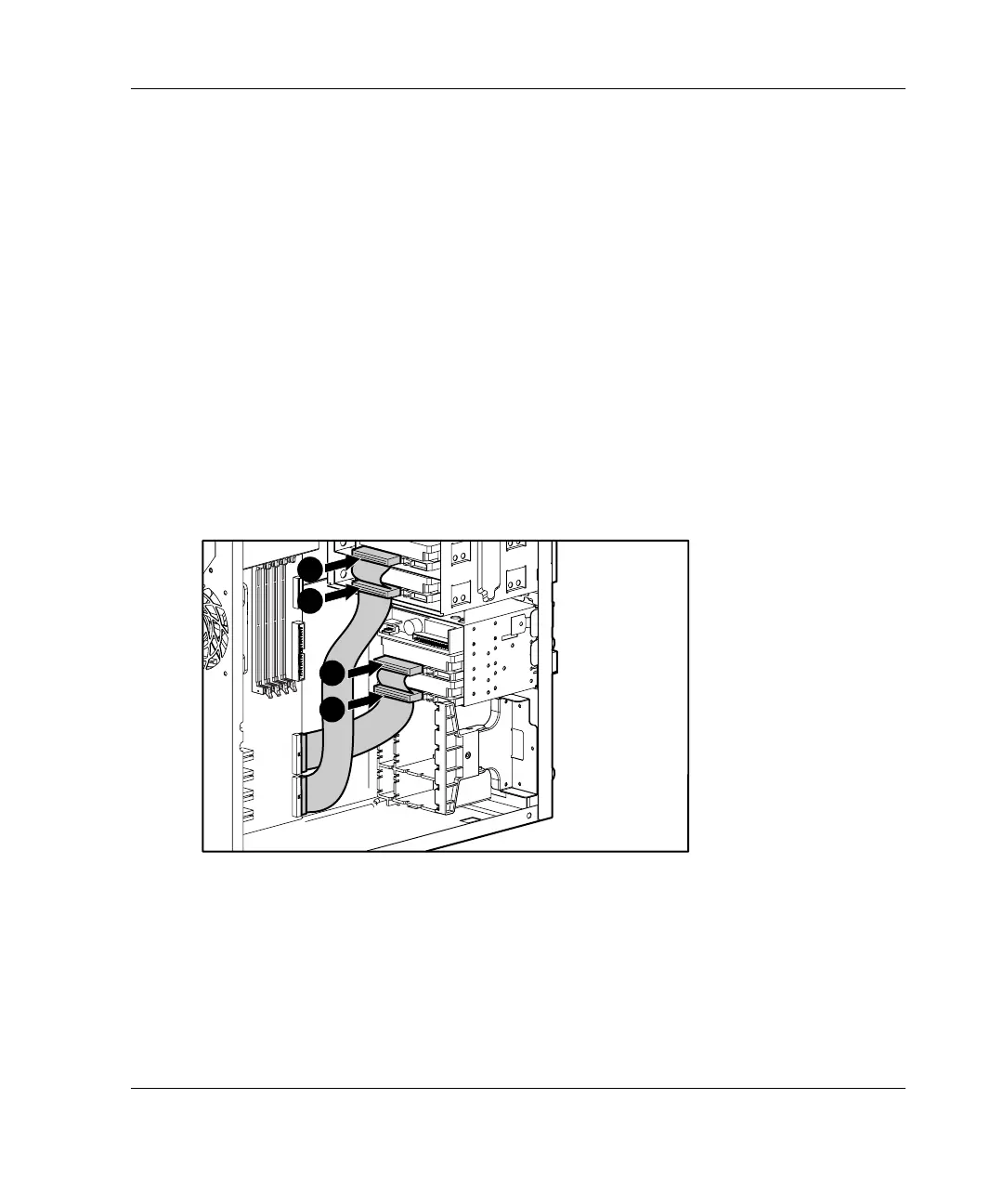

Figure 4-10: ATA cabling sequence
HP ProLiant ML310 Server Setup and Installation Guide 4-13
HP CONFIDENTIAL
Writer: Ted Weiman File Name: e-ch4.doc
Codename: Son of Beast Part Number: 274431-002 Last Saved On: 11/22/02 2:02 PM

HP ProLiant ML310 Specifications

General

Form Factor	Tower
Processor Sockets	1
Maximum Memory	32GB
Memory Slots	4
Storage Controller	HP Dynamic Smart Array B120i
Processor	Intel Xeon E3-1200 series
Memory Type	DDR3
RAID Support	RAID 0, 1, 10
Storage	Up to 4 LFF (3.5-inch) drives
Hard Drive Interface	SATA
Network	1Gb Ethernet
Power Supply	350W
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	1 x PCIe 2.0 x1
