Hardware Options Installation
NOTE: Turn the access panel over to locate the System Configuration label. This label
provides information about the system board of the server.
To replace the access panel, reverse steps 2 and 3.
Removing Bezel Blanks
When installing a device other than a hard drive into a removable media bay, it is
necessary to remove the corresponding bezel blank from the front bezel. To remove a
bezel blank:
CAUTION: To prevent damage to equipment or loss of information, be sure that the
server is powered down, all cables are disconnected from the back of the server, and
the power cord is disconnected from the grounded (earthed) AC outlet before
removing the front bezel.
NOTE: It is not necessary to remove a bezel blank when installing a hard drive into a
removable media bay.
1. Follow the procedures in “Removing the Front Bezel” in this chapter.
2. On the back of the front bezel, pinch the tabs on each end of the bezel blank
toward each other (1), and then push the bezel blank through the front bezel (2).
1
2

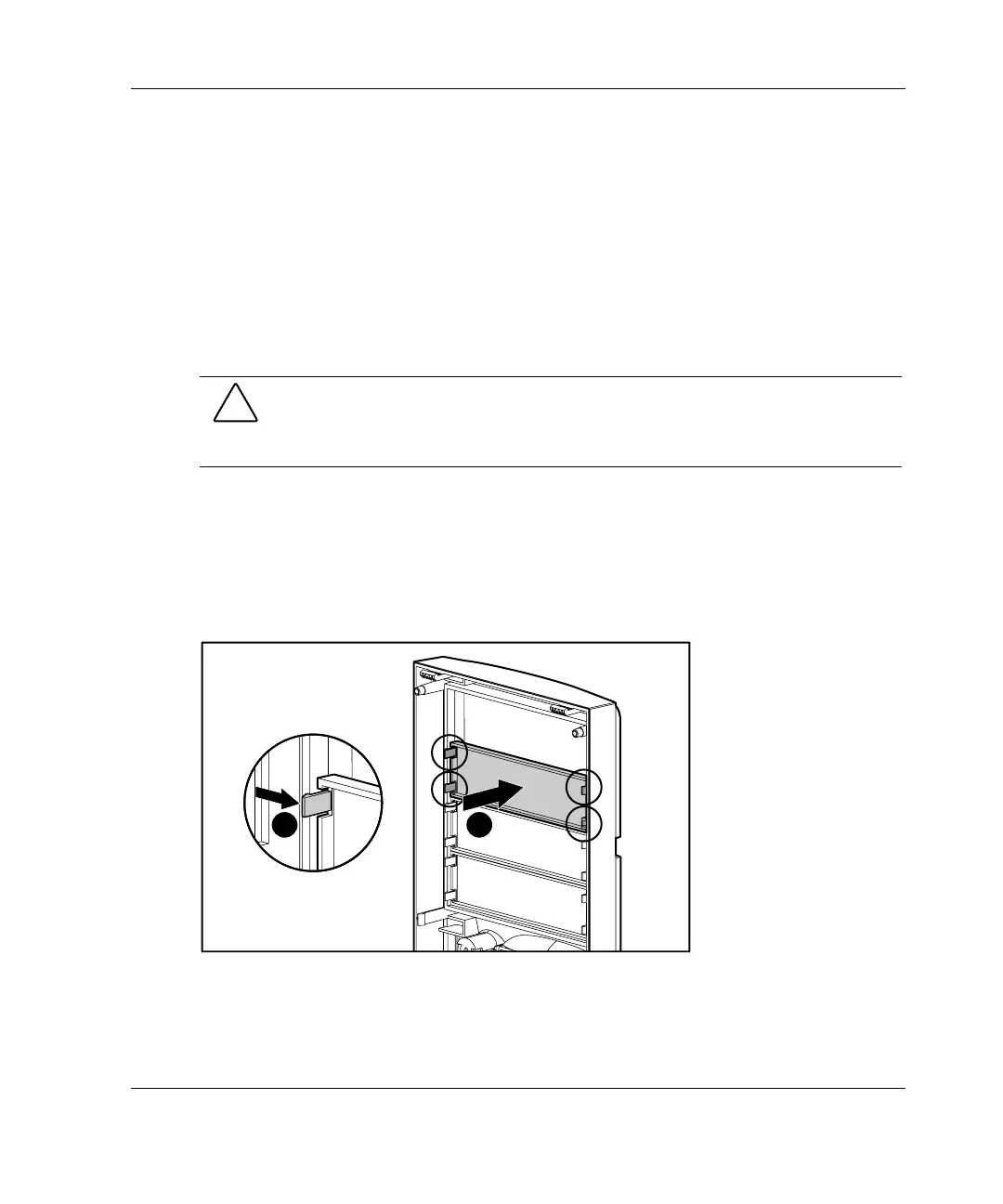

Figure 3-3: Removing a bezel blank
To replace a bezel blank, reverse steps 1 and 2.
HP ProLiant ML310 Server Setup and Installation Guide 3-5
