HP ProLiant ML310 Setup And Installation Guide

Cabling Guidelines
Connect the SCSI cable to the Smart Array Controller.

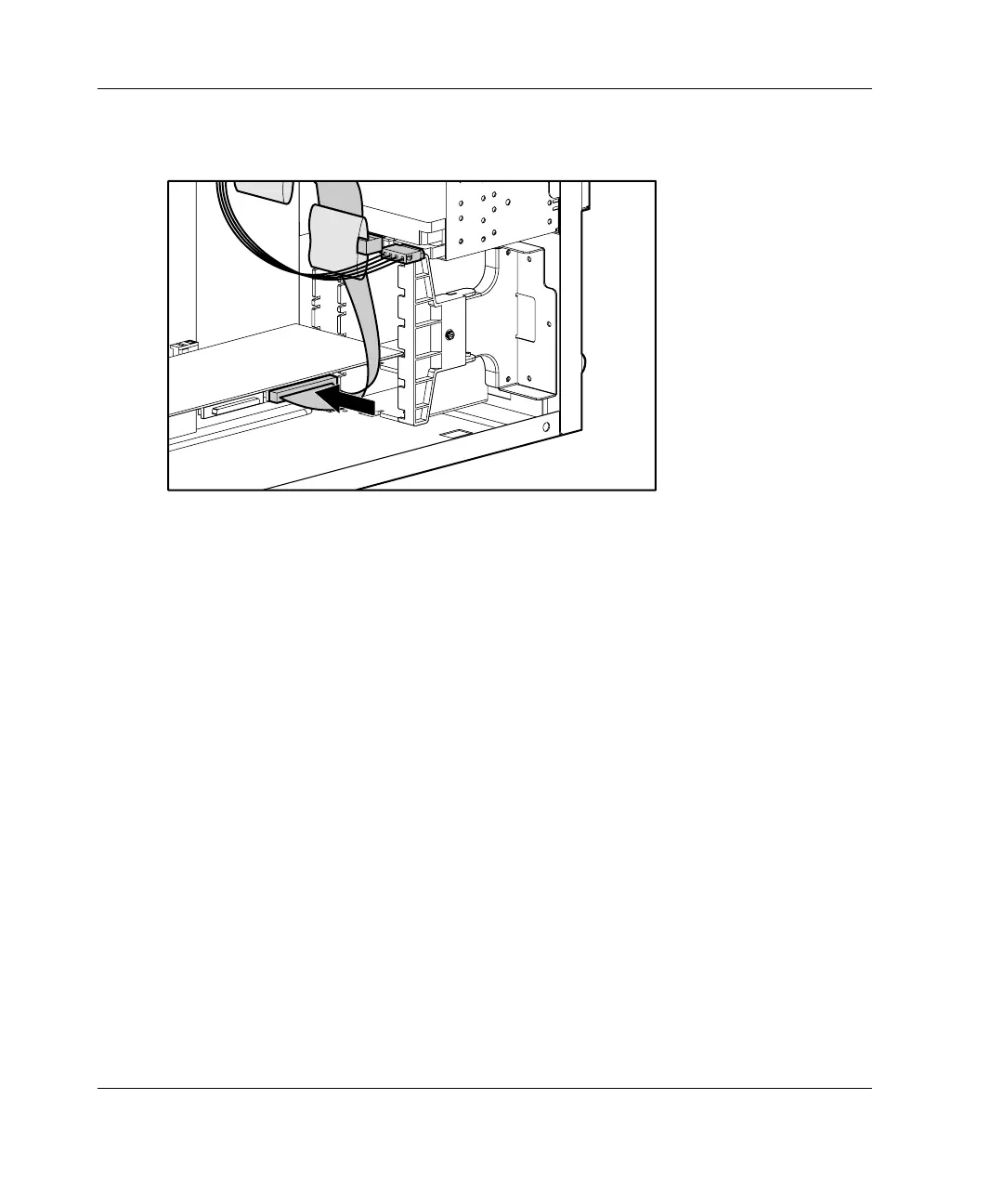

Figure 4-6: Connecting the SCSI cable to the
Smart Array Controller
Cabling a Two-Bay Hot-Plug SCSI Drive Cage
To cable the two-bay hot-plug SCSI drive cage:
1. Install the drive cage. Refer to “Installing the Two-Bay Hot-Plug SCSI Drive
Cage Into a Removable Media Bay,” in Chapter 3, for instructions.
2. Locate the point-to-point SCSI cable included in the drive cage option kit.
3. Connect one end of the SCSI cable to the drive cage.
4. Connect the other end of the SCSI cable to the controller intended for use with
the new drive cage.
4-8 HP ProLiant ML310 Server Setup and Installation Guide
HP CONFIDENTIAL
Writer: Ted Weiman File Name: e-ch4.doc
Codename: Son of Beast Part Number: 274431-002 Last Saved On: 11/22/02 2:02 PM

HP ProLiant ML310 Specifications

General

Form Factor	Tower
Processor Sockets	1
Maximum Memory	32GB
Memory Slots	4
Storage Controller	HP Dynamic Smart Array B120i
Processor	Intel Xeon E3-1200 series
Memory Type	DDR3
RAID Support	RAID 0, 1, 10
Storage	Up to 4 LFF (3.5-inch) drives
Hard Drive Interface	SATA
Network	1Gb Ethernet
Power Supply	350W
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	1 x PCIe 2.0 x1
