Cabling Guidelines
Identifying SCSI Components
SCSI Cable Components
The SCSI cable supports up to five SCSI devices and comes with a terminator on the
end. One cable is included with SCSI models of the server.

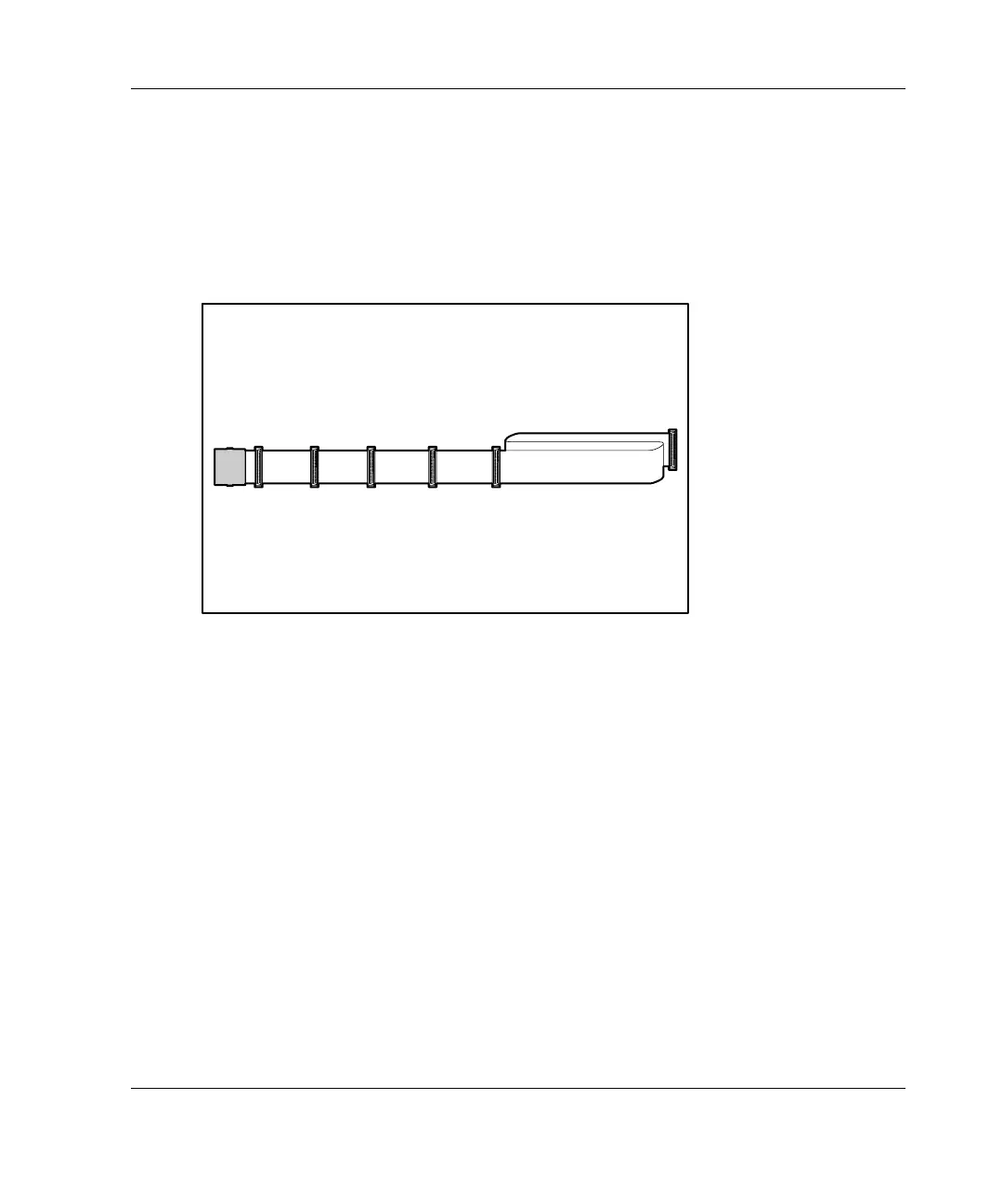

Figure 4-1: SCSI cable with terminator
HP ProLiant ML310 Server Setup and Installation Guide 4-3
