HP ProLiant ML310 Setup And Installation Guide

Cabling Guidelines
Cabling a Smart Array Controller
Many configurations are possible when multiple SCSI controllers are added. This
section outlines the cabling procedure for an installed Smart Array Controller. Refer
to the Smart Array Controller option documentation for further installation
information.
To cable the Smart Array Controller:
1. Install the Smart Array Controller as instructed in the option kit documentation.
2. If hard drives are not already installed, follow the appropriate steps in Chapter 3,
“Hardware Options Installation,” to install the devices.
3. Locate the cable connected to the SCSI channel on the system board.
4. Remove the cable from the SCSI channel.

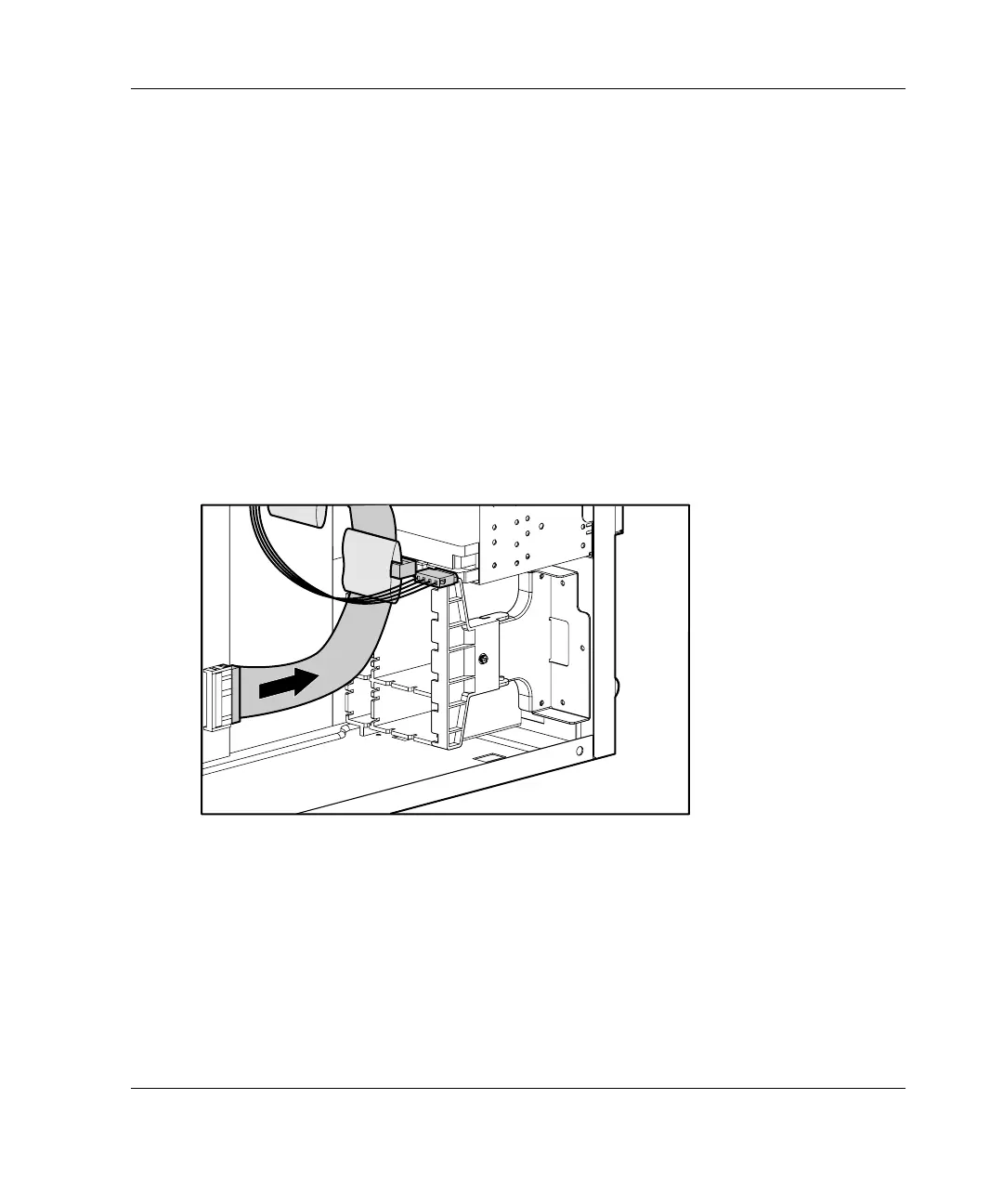

Figure 4-5: Removing the SCSI cable from the
system board
HP ProLiant ML310 Server Setup and Installation Guide 4-7
HP CONFIDENTIAL
Writer: Ted Weiman File Name: e-ch4.doc
Codename: Son of Beast Part Number: 274431-002 Last Saved On: 11/22/02 2:02 PM

HP ProLiant ML310 Specifications

General

Form Factor	Tower
Processor Sockets	1
Maximum Memory	32GB
Memory Slots	4
Storage Controller	HP Dynamic Smart Array B120i
Processor	Intel Xeon E3-1200 series
Memory Type	DDR3
RAID Support	RAID 0, 1, 10
Storage	Up to 4 LFF (3.5-inch) drives
Hard Drive Interface	SATA
Network	1Gb Ethernet
Power Supply	350W
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	1 x PCIe 2.0 x1
