Hardware Options Installation
4. After the rails are attached to the tape drive, slide the drive into the drive bay.

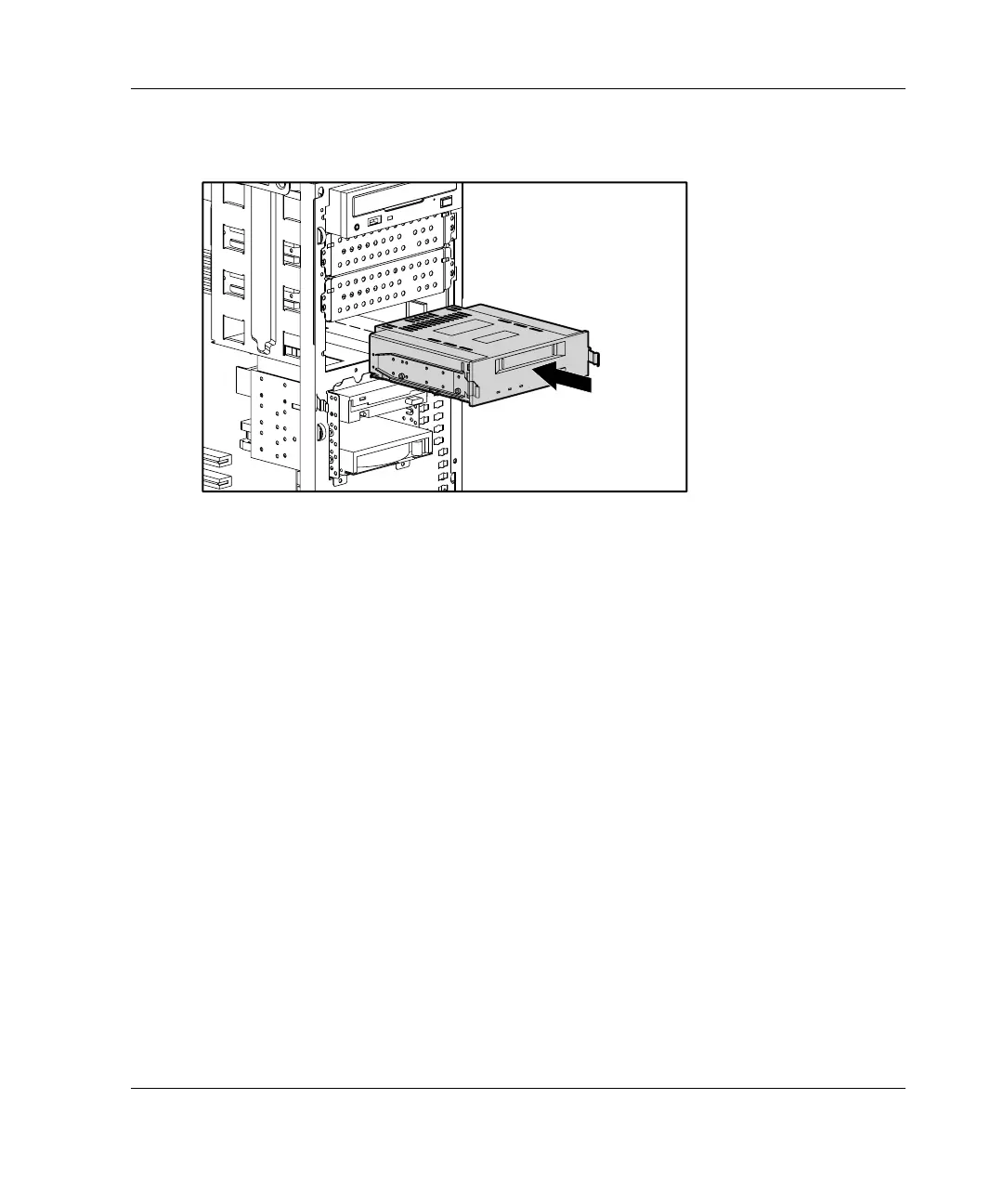

Figure 3-15: Installing a tape drive
5. Connect the data and power cables to the back of the drive, as instructed in
Chapter 4, “Cabling Guidelines.”
6. Replace the access panel and the front bezel.
7. Restore power to the server.
HP ProLiant ML310 Server Setup and Installation Guide 3-19
