Server Features
1
2
3
4
5
6
7
Table 1-1: Drive Bay Dimensions
Item Component Location Dimension
1 IDE CD-ROM drive Media bay 1 13.34 x 4.06 cm
5.25 x 1.60 in
2 Available removable
media bay
Media bay 2 13.34 x 4.06 cm
5.25 x 1.60 in
3 Available removable
media bay
Media bay 3 13.34 x 4.06 cm
5.25 x 1.60 in
4 Available removable
media bay
Media bay 4 13.34 x 4.06 cm
5.25 x 1.60 in
5 Diskette drive Hard drive bay 1 8.9 x 2.54 cm
3.5 x 1.0 in
6 Hard drive bay Hard drive bay 2 8.9 x 2.54 cm
3.5 x 1.0 in
7 Hard drive bay Hard drive bay 3 8.9 x 2.54 cm
3.5 x 1.0 in

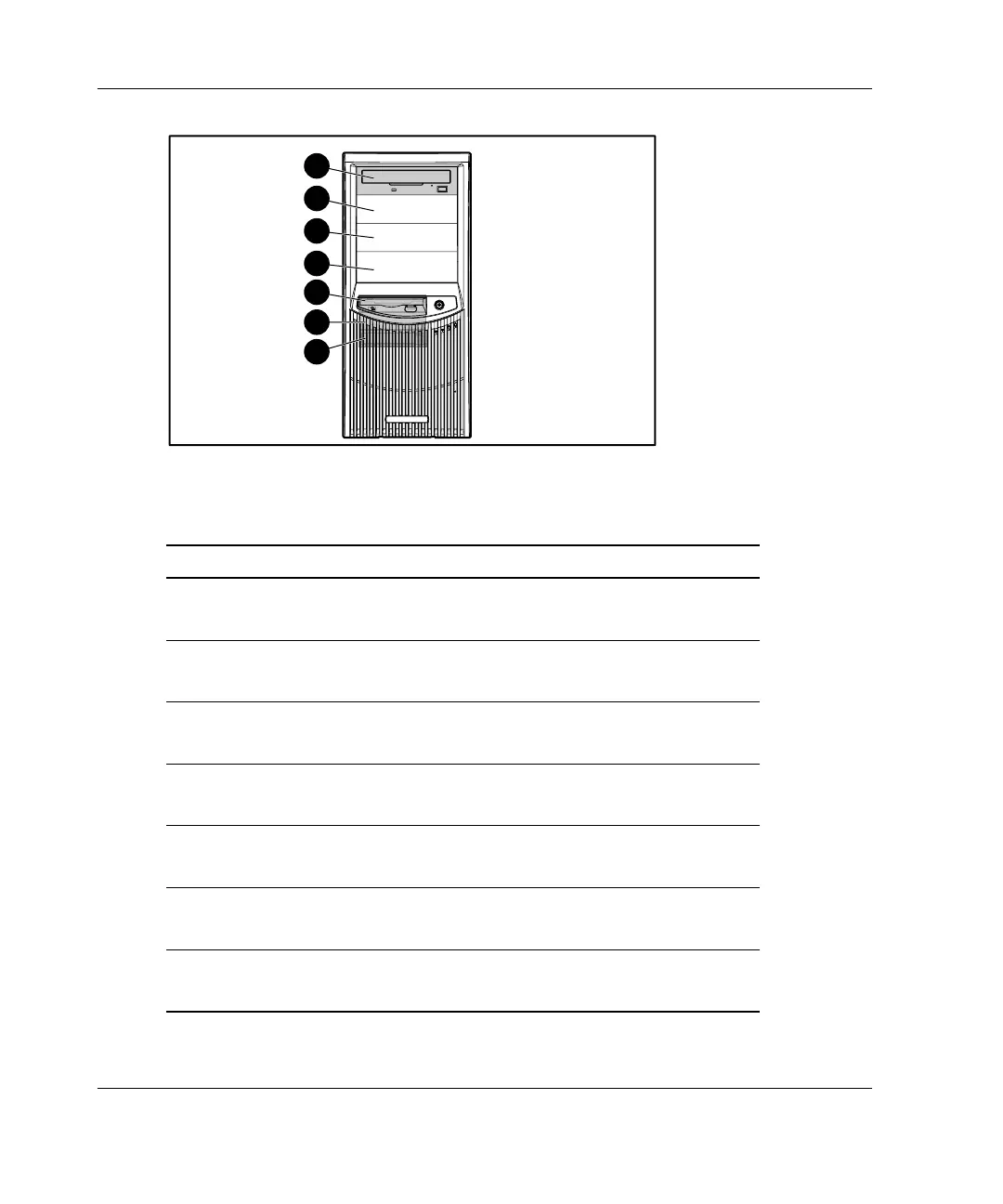

Figure 1-2: Drive bay configuration
