LED Indicators, Switches, and Jumpers
Table E-1: Power Button and Server LEDs continued
Item Description Status Means
4 NIC Link/Activity Green Link established.
Flashing Network currently active.
Off Not linked to network.
5 Internal health
LED
Green Server powered on and
server health is good.
Off Server off or AC power is
not connected.
Amber System health degraded,
pre-failure warning.
Red System health critical,
attention needed.
System Board LEDs
The LEDs identified in Figure E-2 and Table E-2 are located on the system board of
the server and indicate error conditions, such as processor, PPM, or memory module
failures.
21
11
12
13
10
3
4
5
6
7
8
9

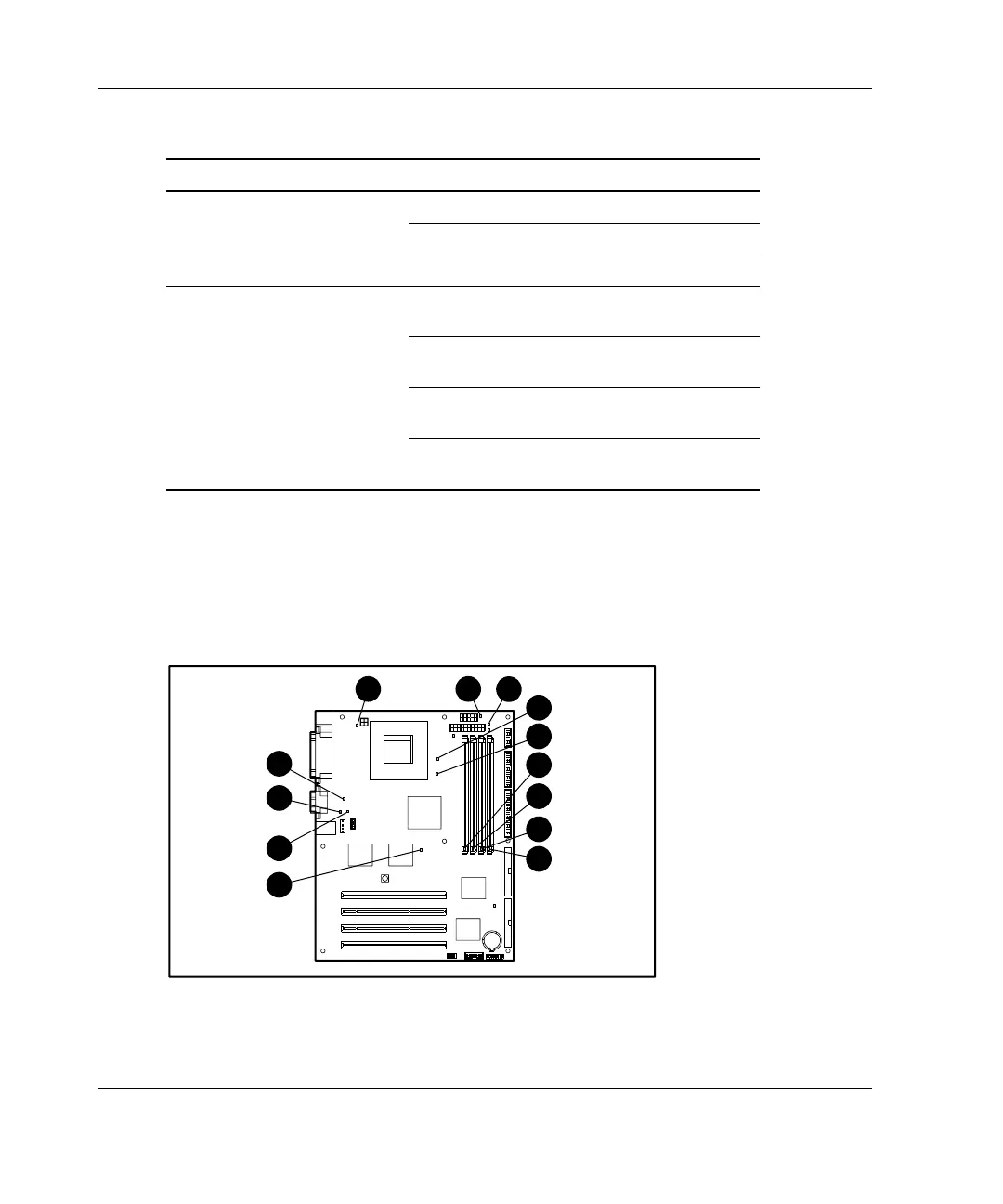

Figure E-2: System Board LEDs
E-4 HP ProLiant ML310 Server Setup and Installation Guide
HP CONFIDENTIAL
Writer: Ted Weiman File Name: l-appe.doc
Codename: Son of Beast Part Number: 274431-002 Last Saved On: 11/22/02 2:10 PM
