3. Remove two media bay blanks and move the CD-ROM drive to the lowest media
bay to prepare a space for the drive cage:
a. Remove the screws from the media bay blanks (1).
b. Remove the media bay blanks from the media bays (2).
1
2
1

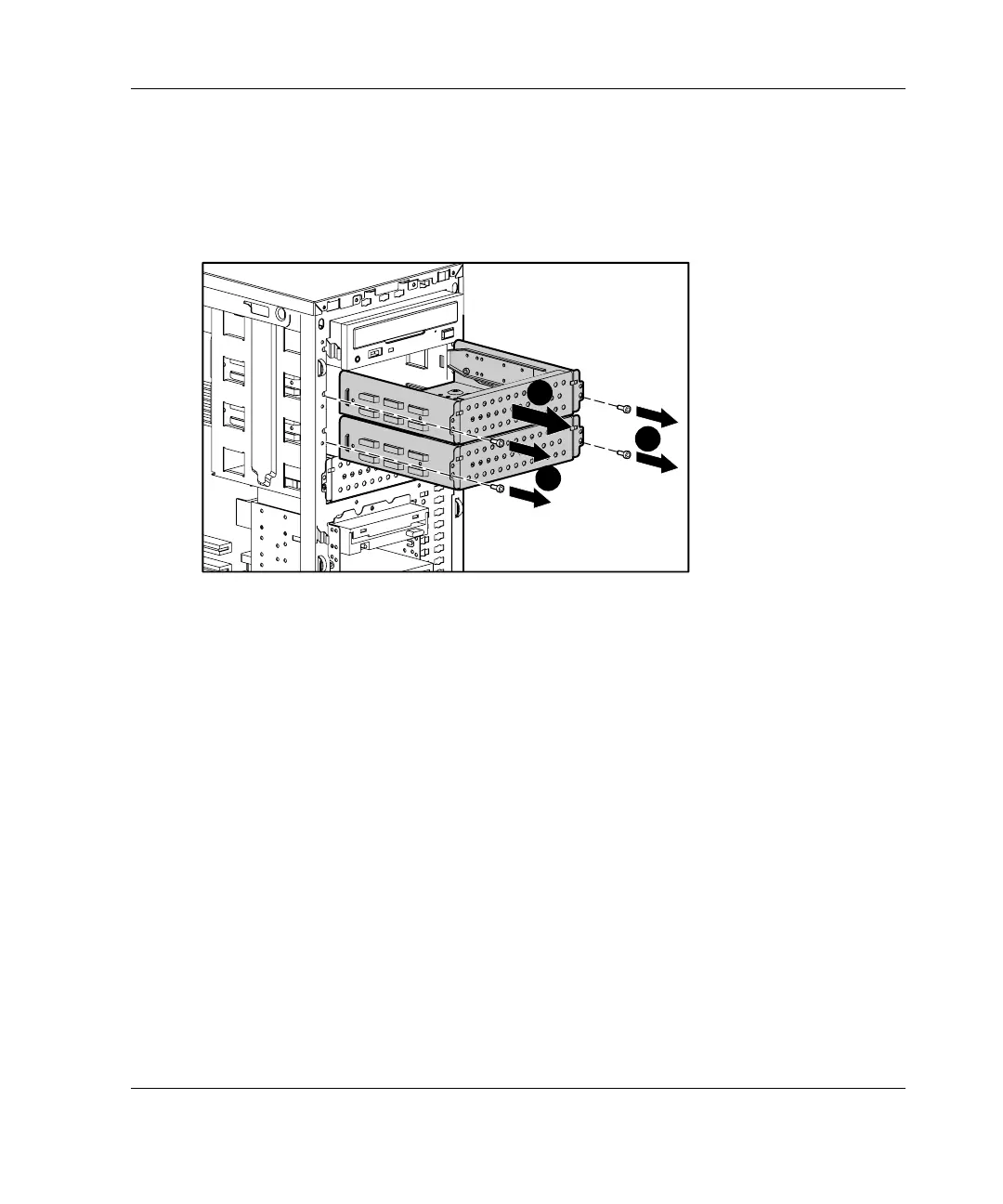

Figure 3-17: Removing media bay blanks
c. Press the release latches on the CD-ROM drive (1).
d. Remove the CD-ROM drive from the media bay (2).
HP ProLiant ML310 Server Setup and Installation Guide 3-21
