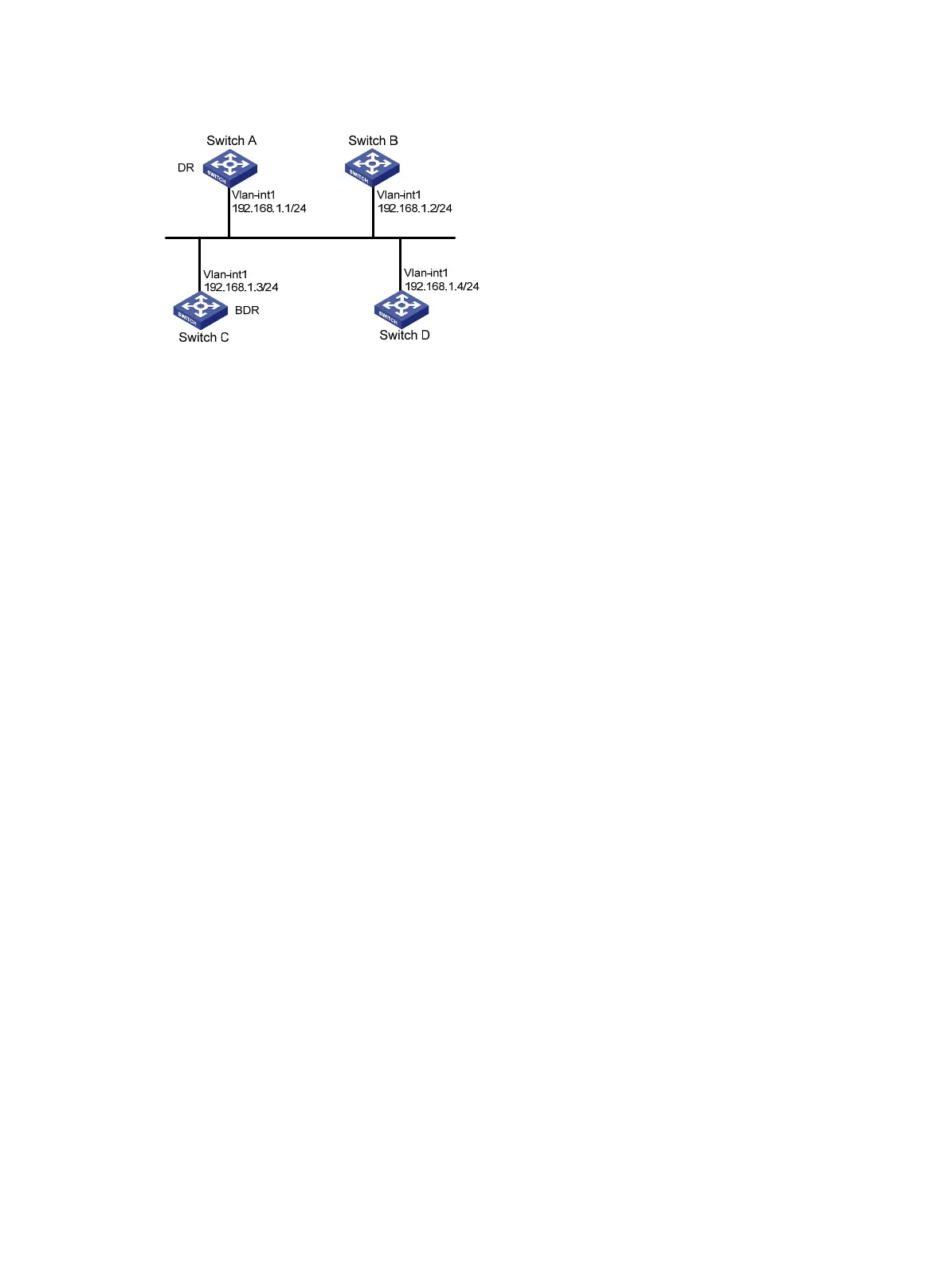

Figure 43 Network diagram

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure OSPF basic functions:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] router id 1.1.1.1

[SwitchA] ospf

[SwitchA-ospf-1] area 0

[SwitchA-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255

[SwitchA-ospf-1-area-0.0.0.0] quit

[SwitchA-ospf-1] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] router id 2.2.2.2

[SwitchB] ospf

[SwitchB-ospf-1] area 0

[SwitchB-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255

[SwitchB-ospf-1-area-0.0.0.0] quit

[SwitchB-ospf-1] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] router id 3.3.3.3

[SwitchC] ospf

[SwitchC-ospf-1] area 0

[SwitchC-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255

[SwitchC-ospf-1-area-0.0.0.0] quit

[SwitchC-ospf-1] quit

# Configure Switch D.

<SwitchD> system-view

[SwitchD] router id 4.4.4.4

[SwitchD] ospf

[SwitchD-ospf-1] area 0

[SwitchD-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255

[SwitchD-ospf-1-area-0.0.0.0] quit
