System Id: 0000.0000.0002

Interface: Vlan-interface100 Circuit Id: 0000.0000.0001.01

State: Up HoldTime: 28s Type: L2 PRI: 64

[SwitchD] display isis interface

Interface information for ISIS(1)

---------------------------------

Interface: Vlan-interface100

Id IPV4.State IPV6.State MTU Type DIS

001 Up Down 1497 L1/L2 No/No

Configuring IS-IS route redistribution

Network requirements

As shown in Figure 65, Switch A, Switch B, Switch C, and Switch D reside in the same AS. They use IS-IS

to interconnect. Switch A and Switch B are Level-1 routers, Switch D is a Level-2 router, and Switch C is a

Level-1-2 router.

Redistribute RIP routes into IS-IS on Switch D.

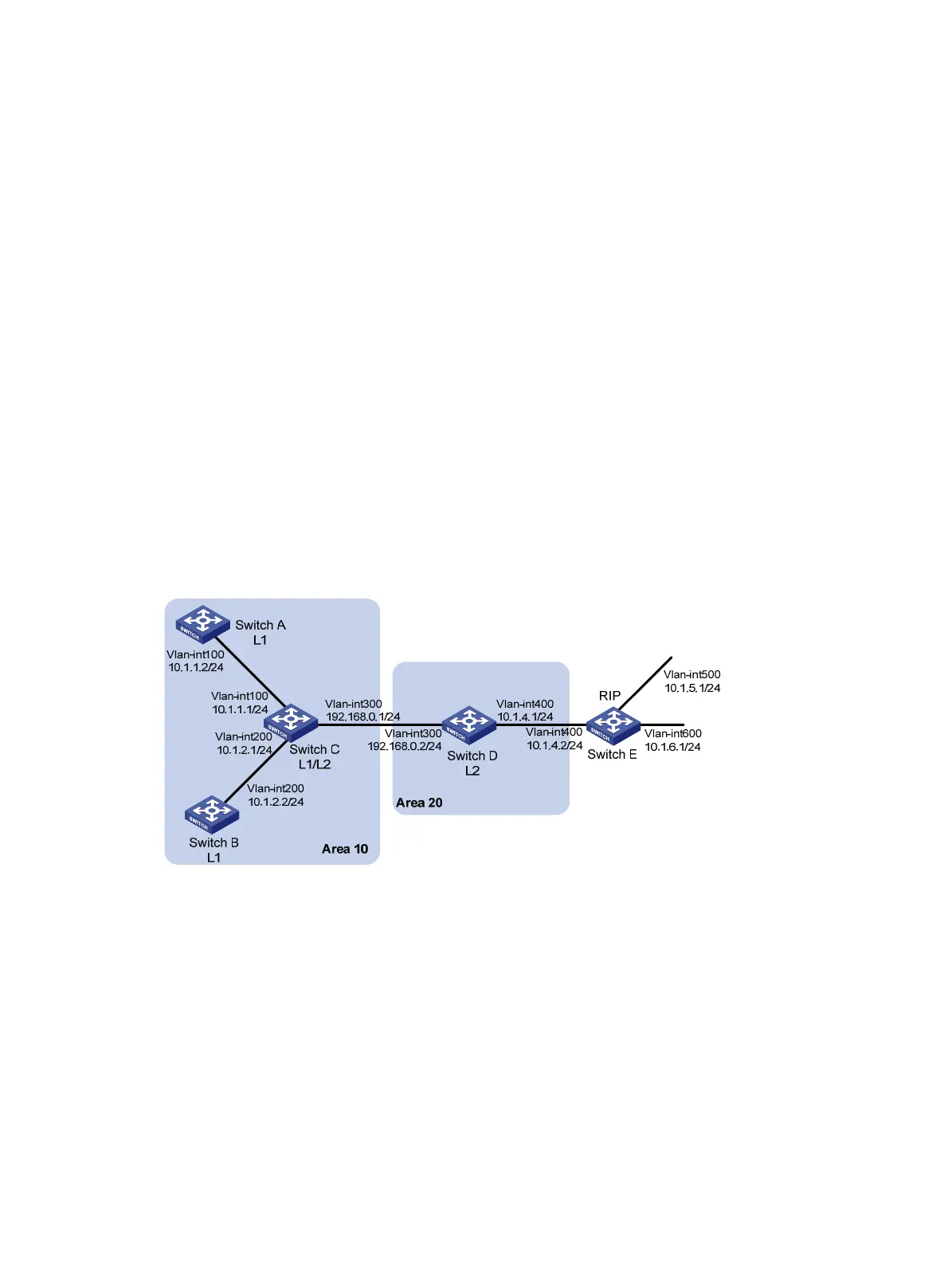

Figure 65 Network diagram for IS-IS route redistribution

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure IS-IS basic functions:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] is-level level-1

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] isis enable 1

[SwitchA-Vlan-interface100] quit
