161

IS-IS configuration examples

IS-IS basic configuration

Network requirements

As shown in Figure 63, Switch A, B, C, and D reside in an IS-IS AS. Switch A and B are Level-1 switches,

Switch D is a Level-2 switch, and Switch C is a Level-1-2 switch. Switch A, B, and C are in Area 10, and

Switch D is in Area 20.

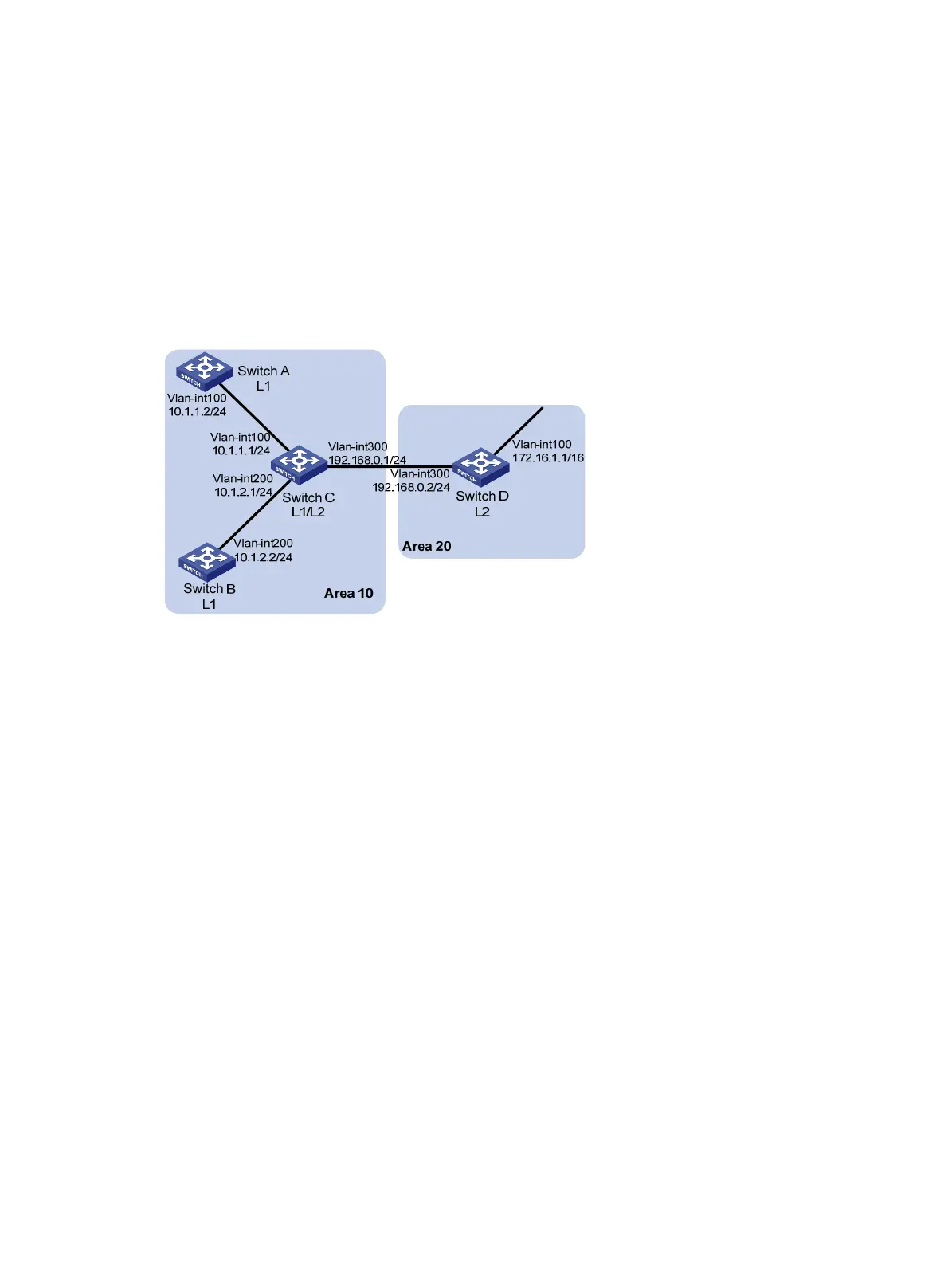

Figure 63 Network diagram for IS-IS basic configuration

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure IS-IS:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] is-level level-1

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] isis enable 1

[SwitchA-Vlan-interface100] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] is-level level-1

[SwitchB-isis-1] network-entity 10.0000.0000.0002.00

[SwitchB-isis-1] quit

[SwitchB] interface vlan-interface 200

[SwitchB-Vlan-interface200] isis enable 1

[SwitchB-Vlan-interface200] quit

# Configure Switch C.

<SwitchC> system-view
