247

BGP GR configuration example

Network requirements

All switches run BGP in Figure 96. Between Switch A and Switch B is an EBGP connection. Switch B and

Switch C are connected over an IBGP connection. Enable GR capability for BGP so that the

communication between Switch A and Switch C is not affected when a master/slave switchover occurs

on Switch B.

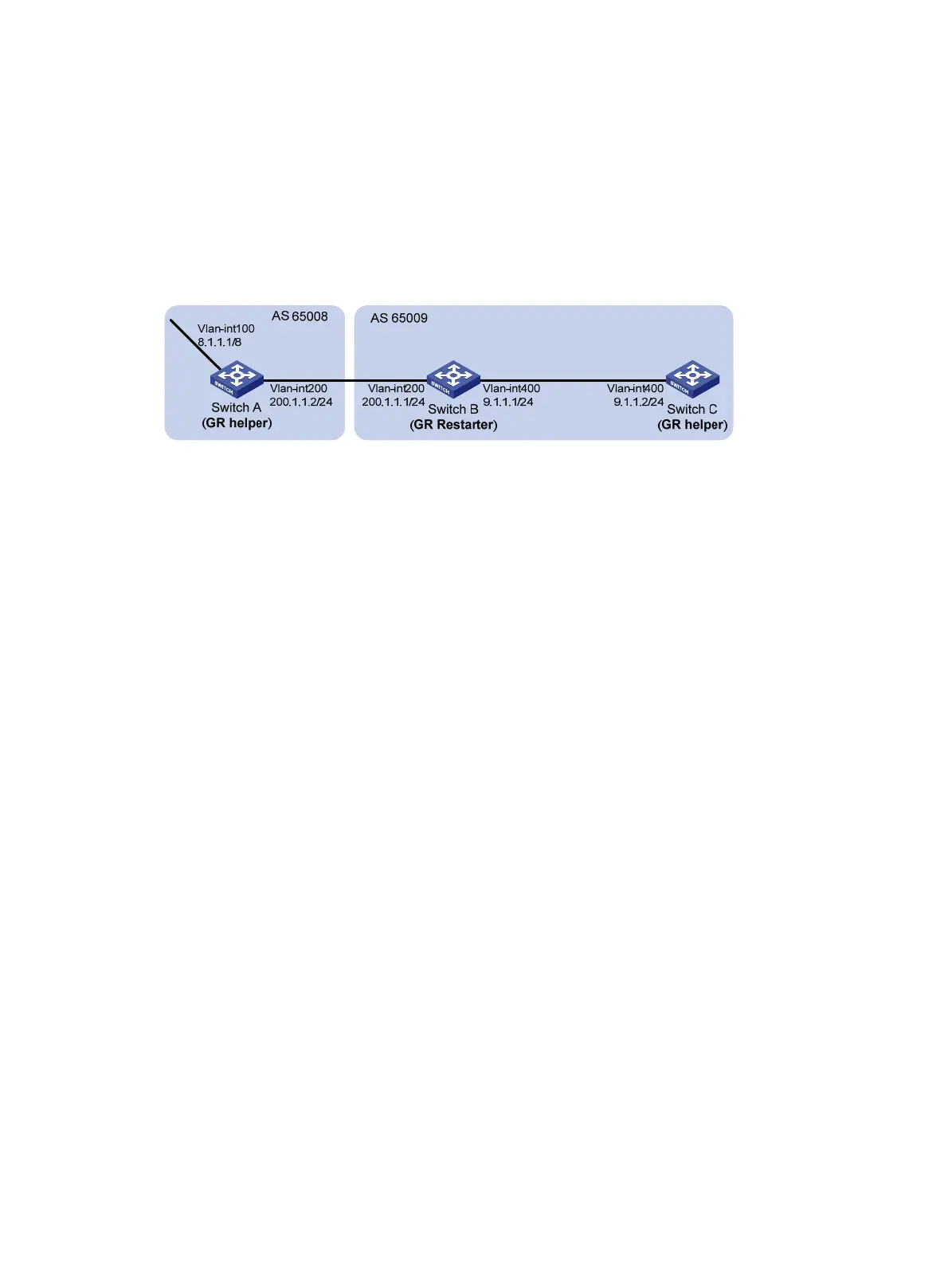

Figure 96 Network diagram

Configuration procedure

1. Configure Switch A:

# Configure IP addresses for interfaces. (Details not shown.)

# Configure the EBGP connection.

<SwitchA> system-view

[SwitchA] bgp 65008

[SwitchA-bgp] router-id 1.1.1.1

[SwitchA-bgp] peer 200.1.1.1 as-number 65009

# Inject network 8.0.0.0/8 to the BGP routing table.

[SwitchA-bgp] network 8.0.0.0

# Enable GR capability for BGP.

[SwitchA-bgp] graceful-restart

2. Configure Switch B:

# Configure IP addresses for interfaces. (Details not shown.)

# Configure the EBGP connection.

<SwitchB> system-view

[SwitchB] bgp 65009

[SwitchB-bgp] router-id 2.2.2.2

[SwitchB-bgp] peer 200.1.1.2 as-number 65008

# Configure the IBGP connection.

[SwitchB-bgp] peer 9.1.1.2 as-number 65009

# Inject networks 200.1.1.0/24 and 9.1.1.0/24 to the BGP routing table.

[SwitchB-bgp] network 200.1.1.0 24

[SwitchB-bgp] network 9.1.1.0 24

# Enable GR capability for BGP.

[SwitchB-bgp] graceful-restart

3. Configure Switch C:

# Configure IP addresses for interfaces. (Details not shown.)
