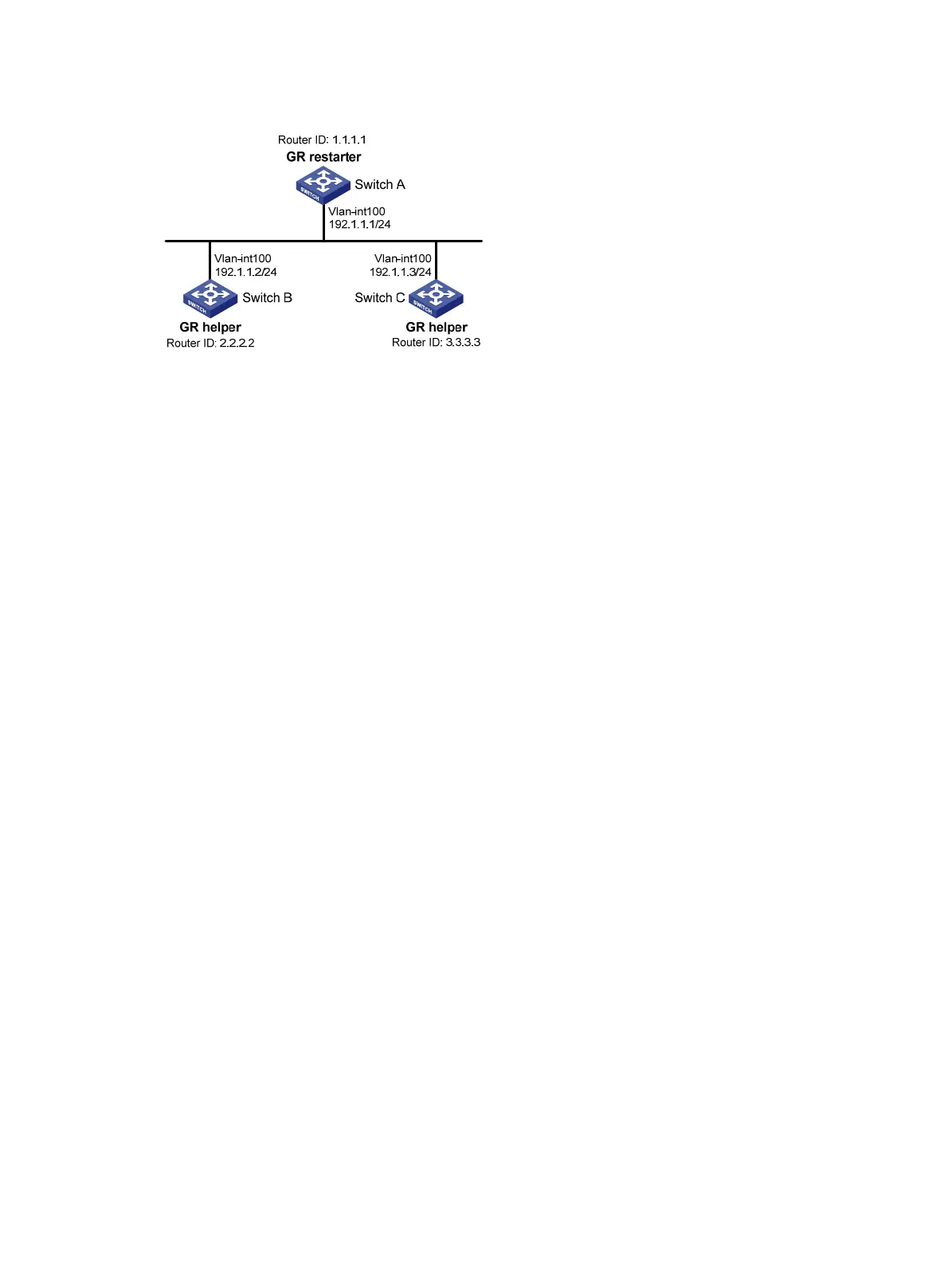

Figure 45 Network diagram

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure OSPF basic functions:

# Configure Switch A

<SwitchA> system-view

[SwitchA] router id 1.1.1.1

[SwitchA] ospf 100

[SwitchA-ospf-100] area 0

[SwitchA-ospf-100-area-0.0.0.0] network 192.1.1.0 0.0.0.255

[SwitchA-ospf-100-area-0.0.0.0] quit

# Configure Switch B

<SwitchB> system-view

[SwitchB] router id 2.2.2.2

[SwitchB] ospf 100

[SwitchB-ospf-100] area 0

[SwitchB-ospf-100-area-0.0.0.0] network 192.1.1.0 0.0.0.255

[SwitchB-ospf-100-area-0.0.0.0] quit

# Configure Switch C

<SwitchC> system-view

[SwitchC] router id 3.3.3.3

[SwitchC] ospf 100

[SwitchC-ospf-100] area 0

[SwitchC-ospf-100-area-0.0.0.0] network 192.1.1.0 0.0.0.255

[SwitchC-ospf-100-area-0.0.0.0] quit

3. Configure OSPF GR:

# Configure Switch A as the non-IETF standard OSPF GR Restarter: enable the link-local signaling

capability, the out-of-band re-synchronization capability, and non IETF standard Graceful Restart

capability for OSPF process 100.

[SwitchA-ospf-100] enable link-local-signaling

[SwitchA-ospf-100] enable out-of-band-resynchronization

[SwitchA-ospf-100] graceful-restart

[SwitchA-ospf-100] return

# Configure Switch B as the GR Helper: enable the link-local signaling capability and the

out-of-band re-synchronization capability for OSPF process 100.
