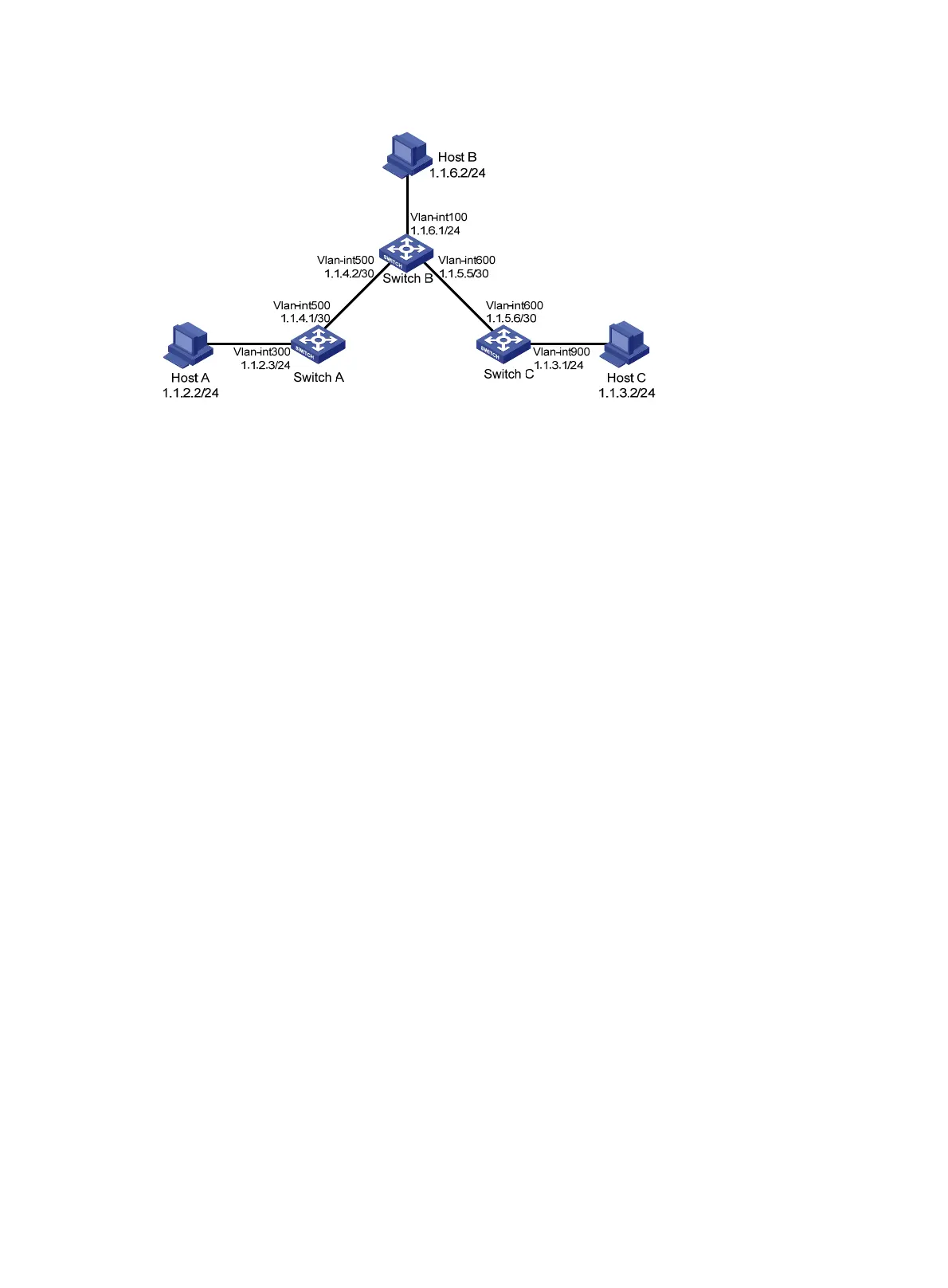

Figure 2 Network diagram

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure static routes:

# Configure a default route on Switch A.

<SwitchA> system-view

[SwitchA] ip route-static 0.0.0.0 0.0.0.0 1.1.4.2

# Configure two static routes on Switch B.

<SwitchB> system-view

[SwitchB] ip route-static 1.1.2.0 255.255.255.0 1.1.4.1

[SwitchB] ip route-static 1.1.3.0 255.255.255.0 1.1.5.6

# Configure a default route on Switch C.

<SwitchC> system-view

[SwitchC] ip route-static 0.0.0.0 0.0.0.0 1.1.5.5

3. Configure the default gateways of hosts A, B, and C as 1.1.2.3, 1.1.6.1, and 1.1.3.1. (Details

not shown.)

4. Verify the configuration:

# Display the IP routing table on Switch A.

[SwitchA] display ip routing-table

Routing Tables: Public

Destinations : 7 Routes : 7

Destination/Mask Proto Pre Cost NextHop Interface

0.0.0.0/0 Static 60 0 1.1.4.2 Vlan500

1.1.2.0/24 Direct 0 0 1.1.2.3 Vlan300

1.1.2.3/32 Direct 0 0 127.0.0.1 InLoop0

1.1.4.0/30 Direct 0 0 1.1.4.1 Vlan500

1.1.4.1/32 Direct 0 0 127.0.0.1 InLoop0

127.0.0.0/8 Direct 0 0 127.0.0.1 InLoop0

127.0.0.1/32 Direct 0 0 127.0.0.1 InLoop0

# Display the IP routing table on Switch B.
