HP VSR1000 Configuration Guide

244

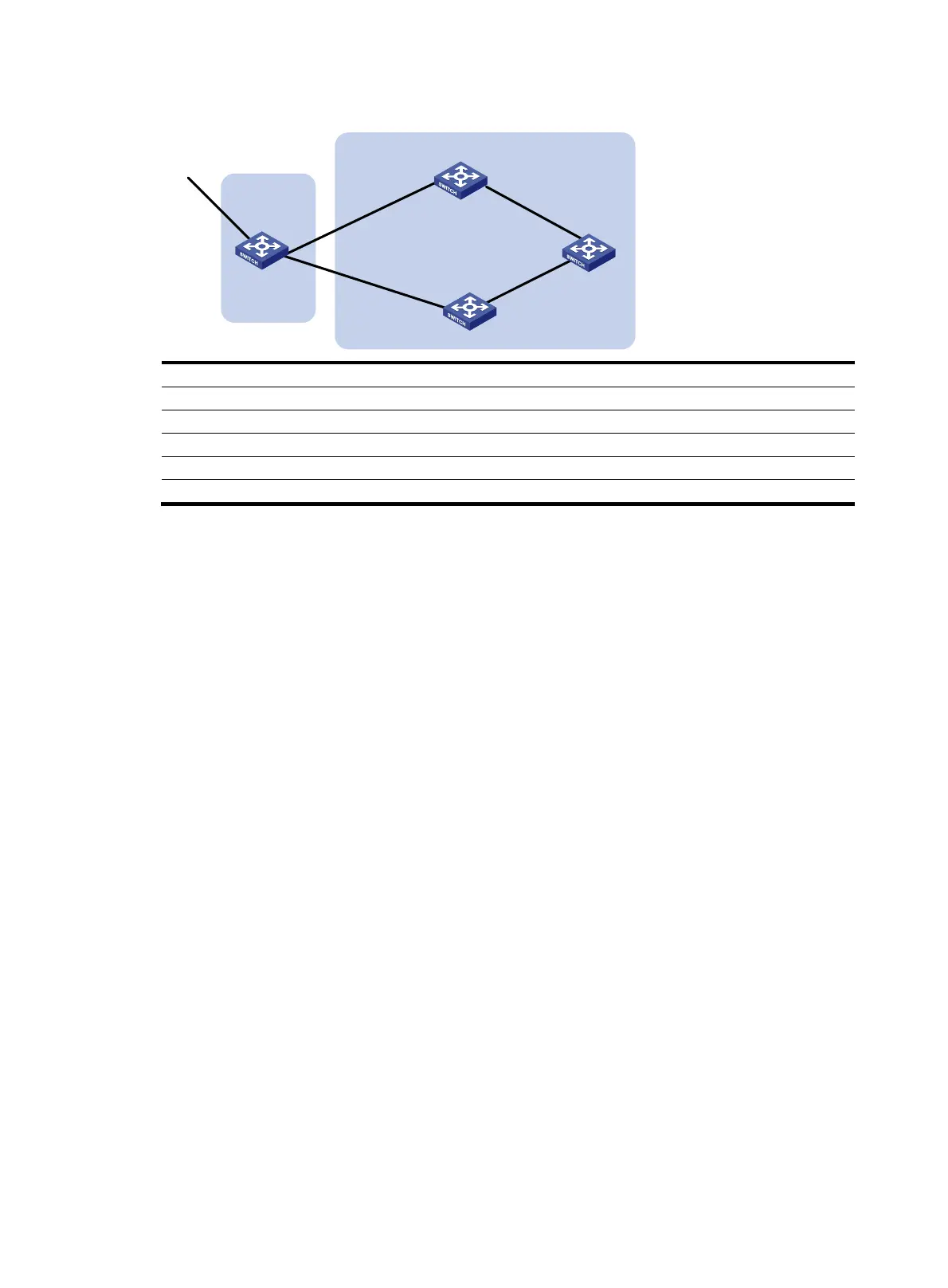

Figure 95 Network diagram
Device Interface IP address Device Interface IP address
Switch A Vlan-int101 1.0.0.0/8 Switch D Vlan-int400 195.1.1.1/24
Vlan-int100 192.1.1.1/24 Vlan-int300 194.1.1.1/24
Vlan-int200 193.1.1.1/24 Switch C Vlan-int400 195.1.1.2/24
Switch B Vlan-int100 192.1.1.2/24 Vlan-int200 193.1.1.2/24
Vlan-int300 194.1.1.2/24
Configuration procedure
1. Configure IP addresses for interfaces. (Details not shown.)
2. Configure OSPF on Switch B, C, and D:
# Configure Switch B.
<SwitchB> system-view
[SwitchB] ospf
[SwitchB-ospf] area 0
[SwitchB-ospf-1-area-0.0.0.0] network 192.1.1.0 0.0.0.255
[SwitchB-ospf-1-area-0.0.0.0] network 194.1.1.0 0.0.0.255
[SwitchB-ospf-1-area-0.0.0.0] quit
[SwitchB-ospf-1] quit
# Configure Switch C.
<SwitchC> system-view
[SwitchC] ospf
[SwitchC-ospf] area 0
[SwitchC-ospf-1-area-0.0.0.0] network 193.1.1.0 0.0.0.255
[SwitchC-ospf-1-area-0.0.0.0] network 195.1.1.0 0.0.0.255
[SwitchC-ospf-1-area-0.0.0.0] quit
[SwitchC-ospf-1] quit
# Configure Switch D.
<SwitchD> system-view
[SwitchD] ospf
[SwitchD-ospf] area 0
[SwitchD-ospf-1-area-0.0.0.0] network 194.1.1.0 0.0.0.255
[SwitchD-ospf-1-area-0.0.0.0] network 195.1.1.0 0.0.0.255
[SwitchD-ospf-1-area-0.0.0.0] quit
[SwitchD-ospf-1] quit
3. Configure BGP connections:
Switch A
AS 100
Vlan-int101
Switch C
AS 200
Vlan-int200
Switch B
Switch D
Vlan-int100
Vlan-int200
Vlan-int400
Vlan-int400
Vlan-int300
Vlan-int300
Vlan-int100
