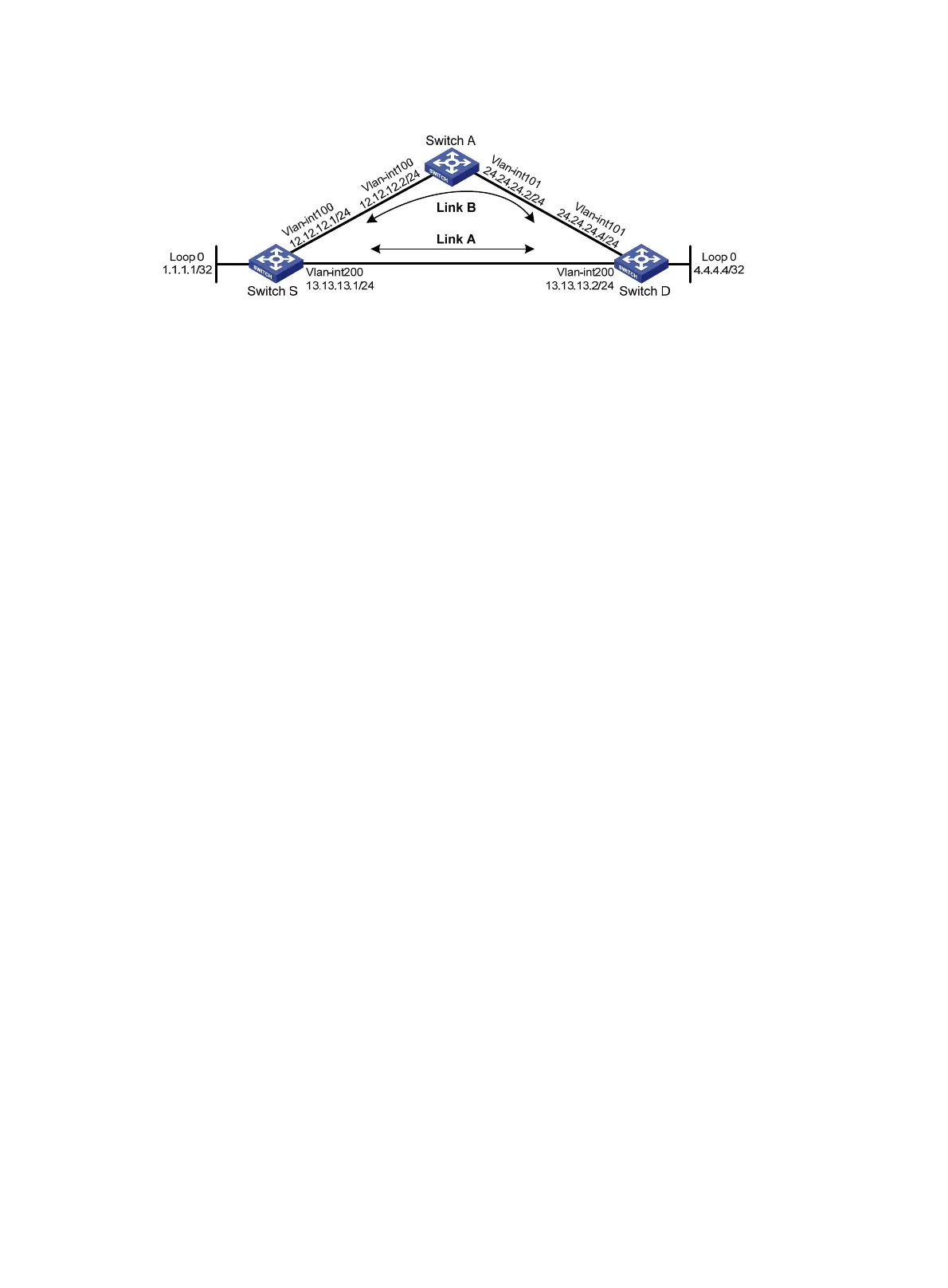

Figure 3 Network diagram

Configuration procedure

1. Configure IP addresses and subnet masks for interfaces on the switches. (Details not shown.)

2. Configure static routes on Switch S, Switch A, and Switch D so that Switch S can reach Loopback

0 on Switch D and Switch D can reach Loopback 0 on Switch S:

# Configure static routes on Switch S.

<SwitchS> system-view

[SwitchS] ip route-static 4.4.4.4 32 vlan-interface 200 13.13.13.2

[SwitchS] ip route-static 4.4.4.4 32 vlan-interface 100 12.12.12.2 preference 65

# Configure static routes on Switch D.

<SwitchD> system-view

[SwitchD] ip route-static 1.1.1.1 32 vlan-interface 200 13.13.13.1

[SwitchD] ip route-static 1.1.1.1 32 vlan-interface 101 24.24.24.2 preference 65

# Configure static routes on Switch A.

<SwitchA> system-view

[SwitchA] ip route-static 4.4.4.4 32 vlan-interface 101 24.24.24.4

[SwitchA] ip route-static 1.1.1.1 32 vlan-interface 100 12.12.12.1

3. Configure static route FRR:

# Configure Switch S.

[SwitchS] bfd echo-source-ip 1.1.1.1

[SwitchS] ip ip-prefix abc index 10 permit 4.4.4.4 32

[SwitchS] route-policy frr permit node 10

[SwitchS-route-policy] if-match ip-prefix abc

[SwitchS-route-policy] apply fast-reroute backup-interface vlan-interface 100

backup-nexthop 12.12.12.2

[SwitchS-route-policy] quit

[SwitchS] ip route-static fast-reroute route-policy frr

# Configure Switch D.

[SwitchD] bfd echo-source-ip 4.4.4.4

[SwitchD] ip ip-prefix abc index 10 permit 1.1.1.1 32

[SwitchD] route-policy frr permit node 10

[SwitchD-route-policy] if-match ip-prefix abc

[SwitchD-route-policy] apply fast-reroute backup-interface vlan-interface 101

backup-nexthop 24.24.24.2

[SwitchD-route-policy] quit

[SwitchD] ip route-static fast-reroute route-policy frr

4. Verify the configuration:
