• Configure IPv6 BGP on the switches. Switches A and B establish an IBGP relationship. Switches B

and C establish an EBGP relationship.

• Configure IPsec policies on the switches to authenticate and encrypt protocol packets.

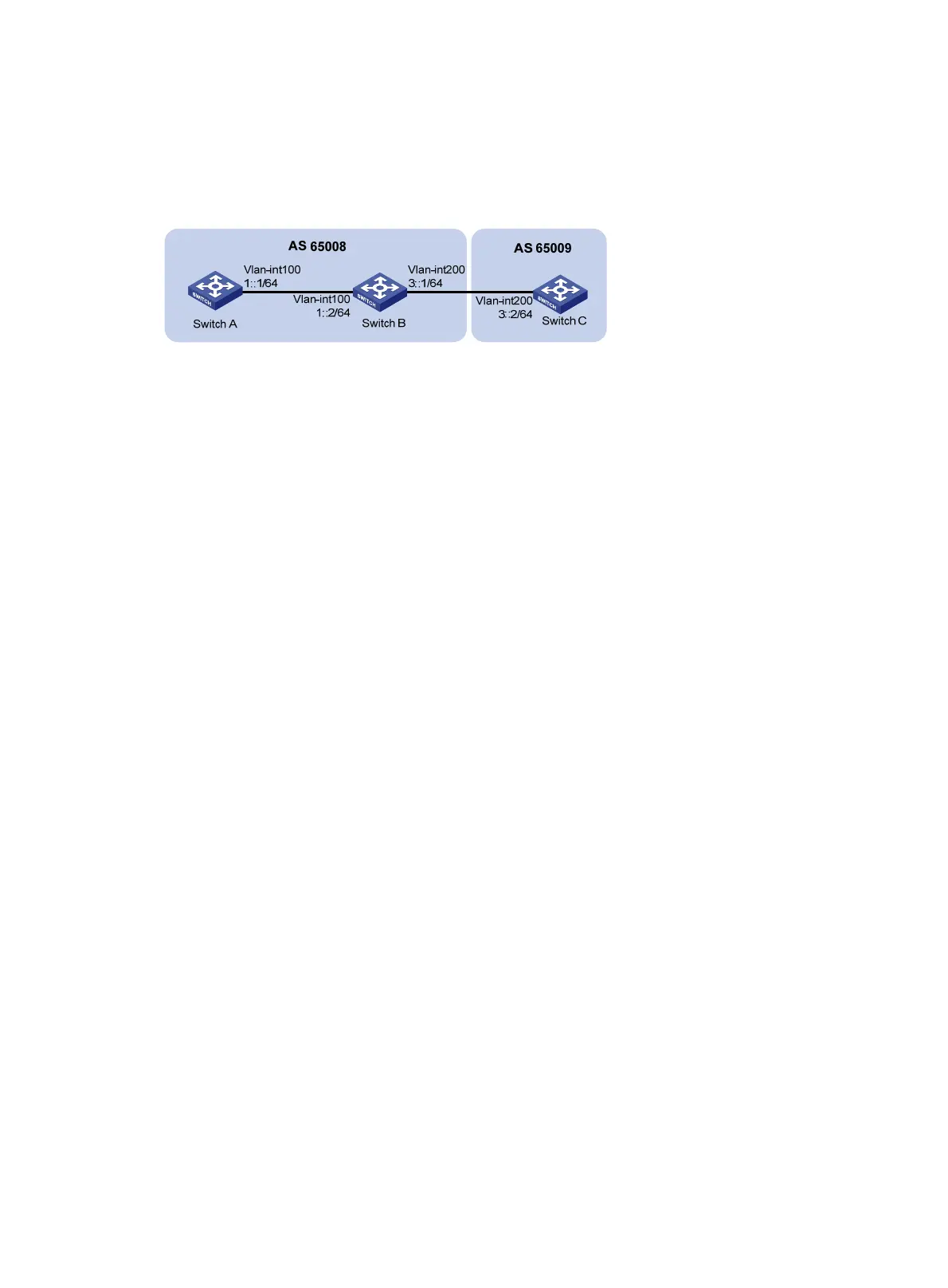

Figure 118 Network diagram

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure the IBGP connection:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] ipv6

[SwitchA] bgp 65008

[SwitchA-bgp] router-id 1.1.1.1

[SwitchA-bgp] ipv6-family

[SwitchA-bgp-af-ipv6] group ibgp internal

[SwitchA-bgp-af-ipv6] peer 1::2 group ibgp

[SwitchA-bgp-af-ipv6] quit

[SwitchA-bgp] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] ipv6

[SwitchB] bgp 65008

[SwitchB-bgp] router-id 2.2.2.2

[SwitchB-bgp] ipv6-family

[SwitchB-bgp-af-ipv6] group ibgp internal

[SwitchB-bgp-af-ipv6] peer 1::1 group ibgp

[SwitchB-bgp-af-ipv6] quit

[SwitchB-bgp] quit

3. Configure the EBGP connection:

# Configure Switch C.

<SwitchC> system-view

[SwitchC] ipv6

[SwitchC] bgp 65009

[SwitchC-bgp] router-id 3.3.3.3

[SwitchC-bgp] ipv6-family

[SwitchC-bgp-af-ipv6] group ebgp external

[SwitchC-bgp-af-ipv6] peer 3::1 as-number 65008

[SwitchC-bgp-af-ipv6] peer 3::1 group ebgp
