371

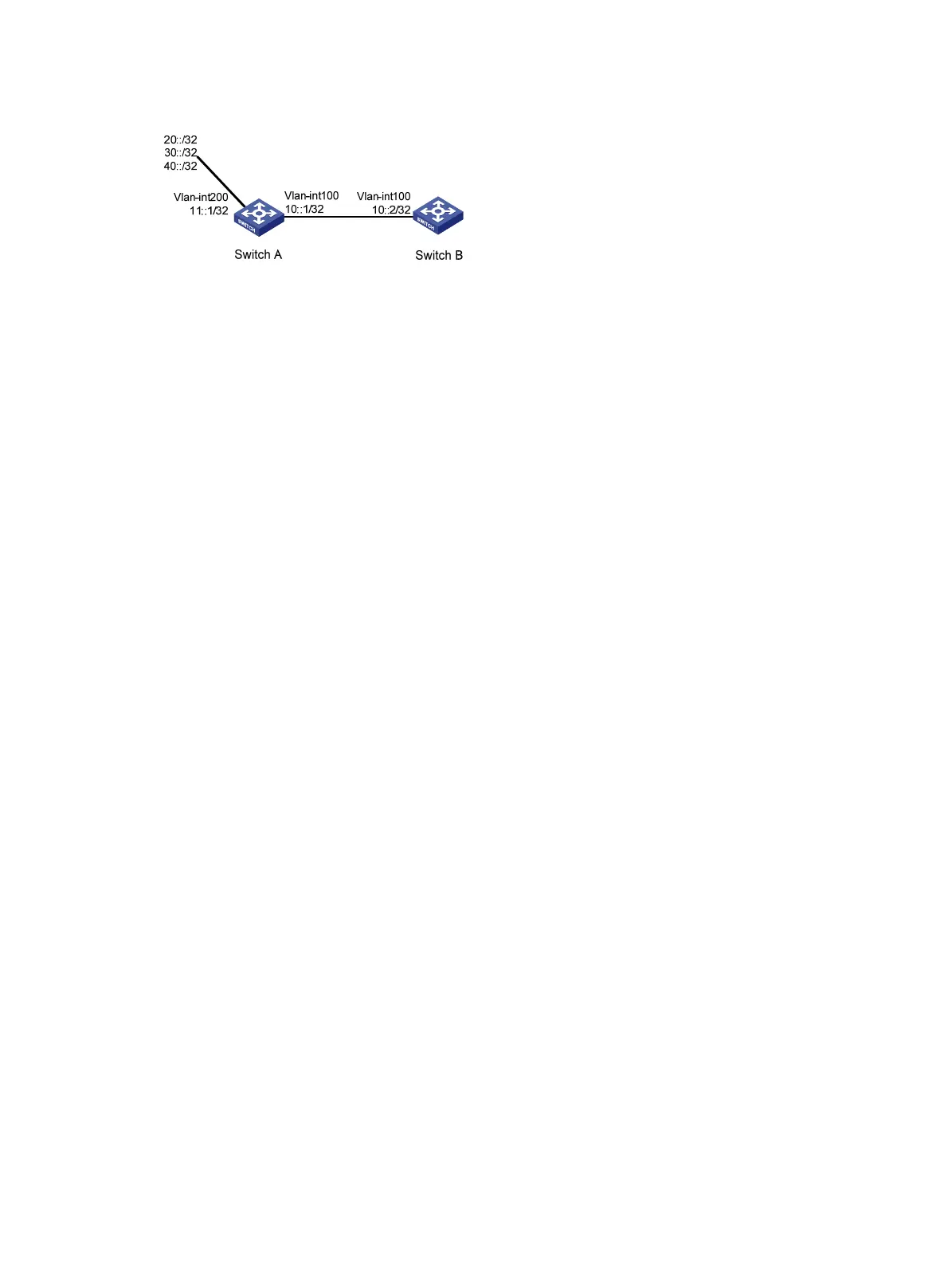

Figure 121 Network diagram

Configuration procedure

1. Configure Switch A:

# Configure IPv6 addresses for VLAN-interface 100 and VLAN-interface 200.

<SwitchA> system-view

[SwitchA] ipv6

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] ipv6 address 10::1 32

[SwitchA-Vlan-interface100] quit

[SwitchA] interface vlan-interface 200

[SwitchA-Vlan-interface200] ipv6 address 11::1 32

[SwitchA-Vlan-interface200] quit

# Enable RIPng on VLAN-interface 100.

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] ripng 1 enable

[SwitchA-Vlan-interface100] quit

# Configure three static routes—with next hop 11::2—and make sure that they are active.

[SwitchA] ipv6 route-static 20:: 32 11::2

[SwitchA] ipv6 route-static 30:: 32 11::2

[SwitchA] ipv6 route-static 40:: 32 11::2

# Configure a routing policy.

[SwitchA] ip ipv6-prefix a index 10 permit 30:: 32

[SwitchA] route-policy static2ripng deny node 0

[SwitchA-route-policy] if-match ipv6 address prefix-list a

[SwitchA-route-policy] quit

[SwitchA] route-policy static2ripng permit node 10

[SwitchA-route-policy] quit

# Enable RIPng and apply the routing policy to static route redistribution.

[SwitchA] ripng

[SwitchA-ripng-1] import-route static route-policy static2ripng

2. Configure Switch B:

# Configure the IPv6 address for VLAN-interface 100.

[SwitchB] ipv6

[SwitchB] interface vlan-interface 100

[SwitchB-Vlan-interface100] ipv6 address 10::2 32

# Enable RIPng on VLAN-interface 100.

[SwitchB-Vlan-interface100] ripng 1 enable

[SwitchB-Vlan-interface100] quit
