Configure a filtering policy on Switch B to filter out the route 10.2.1.1/24 from RIP 100, making the route

not advertised to Switch C.

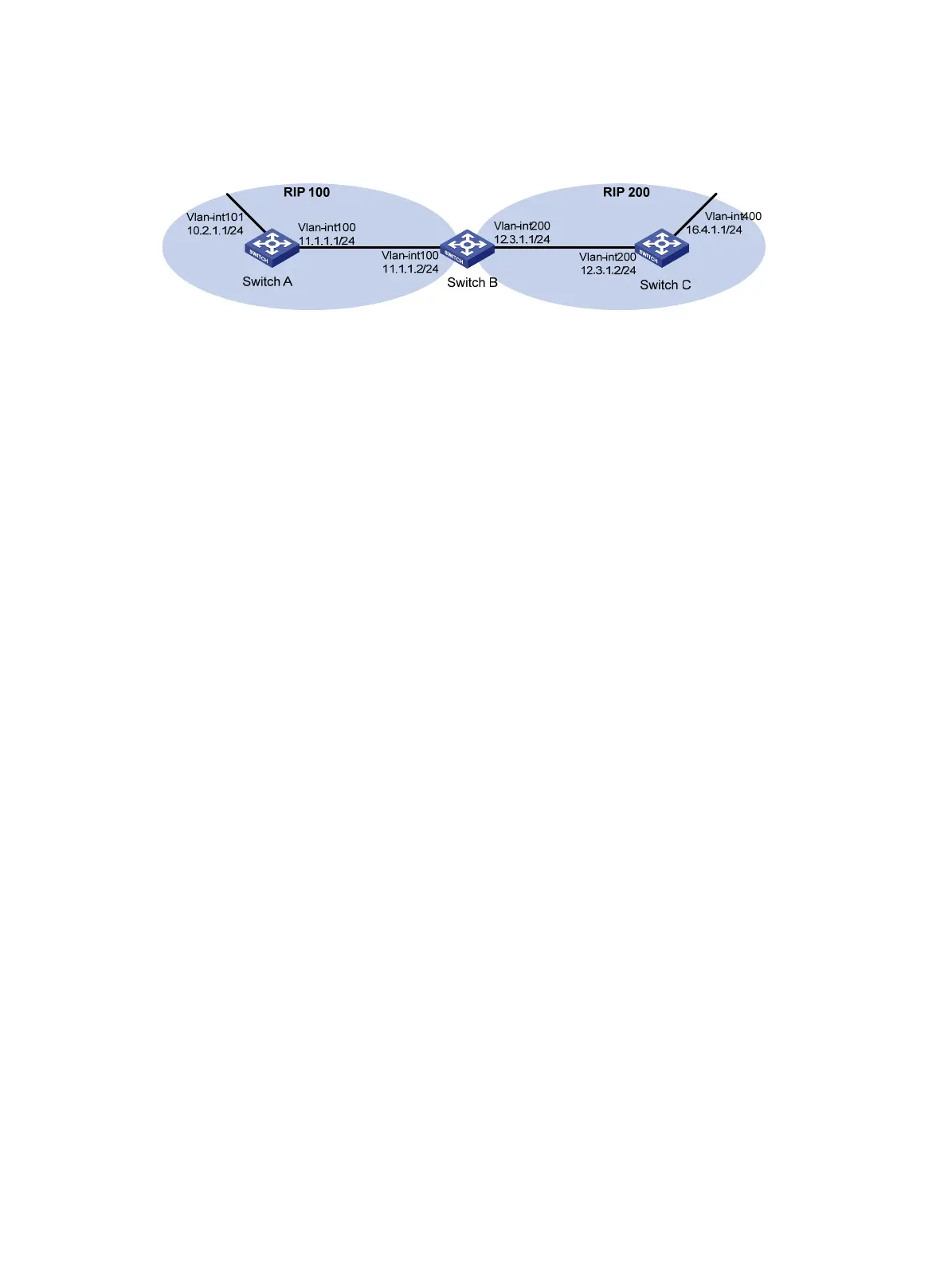

Figure 11 Network diagram

Configuration procedure

1. Configure an IP address for each interface. (Details not shown.)

2. Configure basic RIP functions:

# Enable RIP 100 and specify RIP version 2 on Switch A.

<SwitchA> system-view

[SwitchA] rip 100

[SwitchA-rip-100] network 10.0.0.0

[SwitchA-rip-100] network 11.0.0.0

[SwitchA-rip-100] version 2

[SwitchA-rip-100] undo summary

[SwitchA-rip-100] quit

# Enable RIP 100 and RIP 200 and specify RIP version 2 on Switch B.

<SwitchB> system-view

[SwitchB] rip 100

[SwitchB-rip-100] network 11.0.0.0

[SwitchB-rip-100] version 2

[SwitchB-rip-100] undo summary

[SwitchB-rip-100] quit

[SwitchB] rip 200

[SwitchB-rip-200] network 12.0.0.0

[SwitchB-rip-200] version 2

[SwitchB-rip-200] undo summary

[SwitchB-rip-200] quit

# Enable RIP 200 and specify RIP version 2 on Switch C.

<SwitchC> system-view

[SwitchC] rip 200

[SwitchC-rip-200] network 12.0.0.0

[SwitchC-rip-200] network 16.0.0.0

[SwitchC-rip-200] version 2

[SwitchC-rip-200] undo summary

[SwitchC-rip-200] quit

# Display the routing table of Switch C.

[SwitchC] display ip routing-table

Routing Tables: Public

Destinations : 6 Routes : 6

Destination/Mask Proto Pre Cost NextHop Interface
