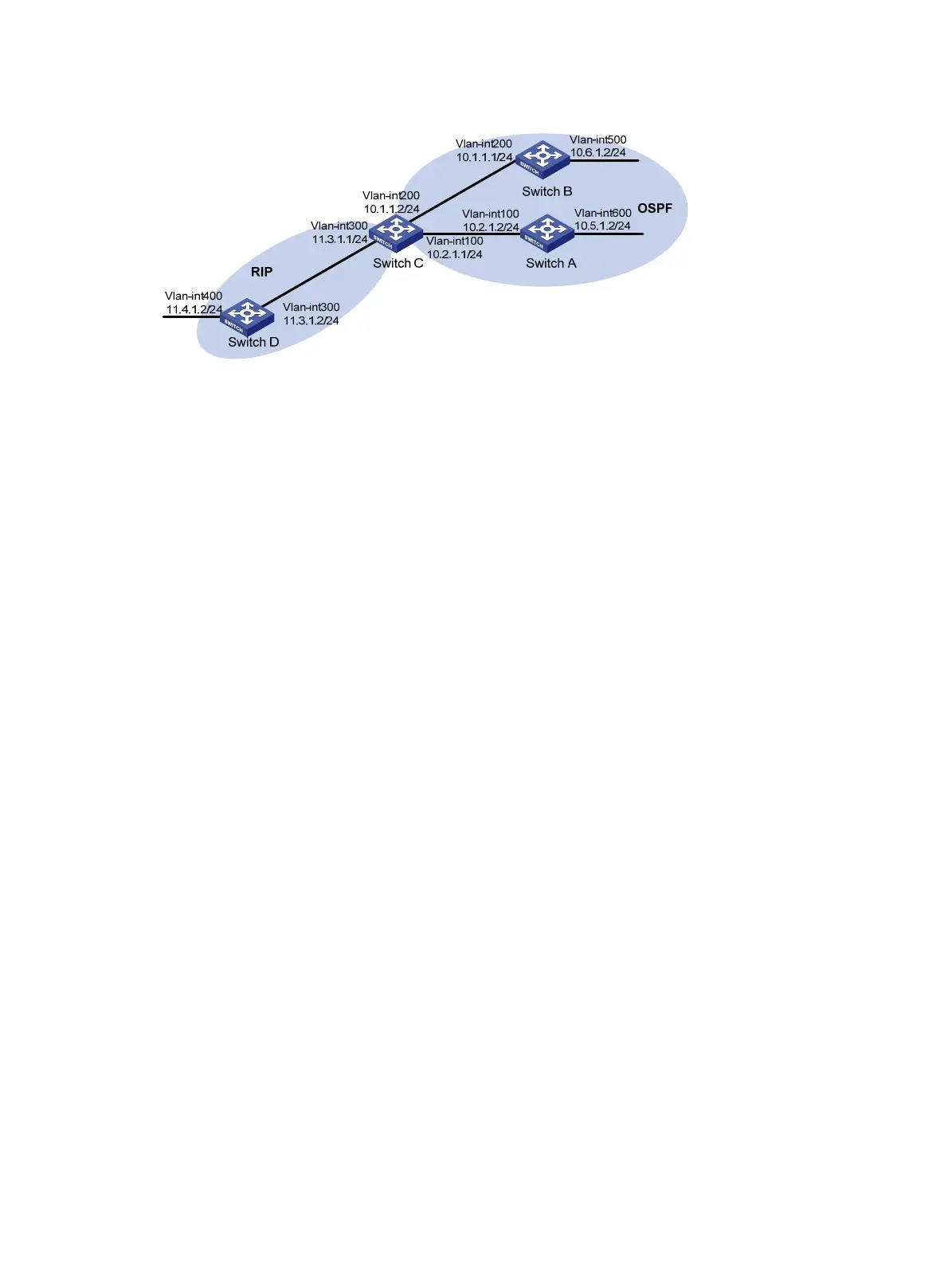

Figure 13 Network diagram

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure OSPF basic functions:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] ospf

[SwitchA-ospf-1] area 0

[SwitchA-ospf-1-area-0.0.0.0] network 10.5.1.0 0.0.0.255

[SwitchA-ospf-1-area-0.0.0.0] network 10.2.1.0 0.0.0.255

[SwitchA-ospf-1-area-0.0.0.0] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] ospf

[SwitchB-ospf-1] area 0

[SwitchB-ospf-1-area-0.0.0.0] network 10.1.1.0 0.0.0.255

[SwitchB-ospf-1-area-0.0.0.0] network 10.6.1.0 0.0.0.255

[SwitchB-ospf-1-area-0.0.0.0] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] ospf

[SwitchC-ospf-1] area 0

[SwitchC-ospf-1-area-0.0.0.0] network 10.1.1.0 0.0.0.255

[SwitchC-ospf-1-area-0.0.0.0] network 10.2.1.0 0.0.0.255

[SwitchC-ospf-1-area-0.0.0.0] quit

[SwitchC-ospf-1] quit

3. Configure RIP basic functions:

# Configure Switch C.

<SwitchC> system-view

[SwitchC] rip 1

[SwitchC-rip-1] network 11.3.1.0

[SwitchC-rip-1] version 2

[SwitchC-rip-1] undo summary

# Configure Switch D.
