learns the static route sent by Switch C with the output interface being the interface connected to Switch

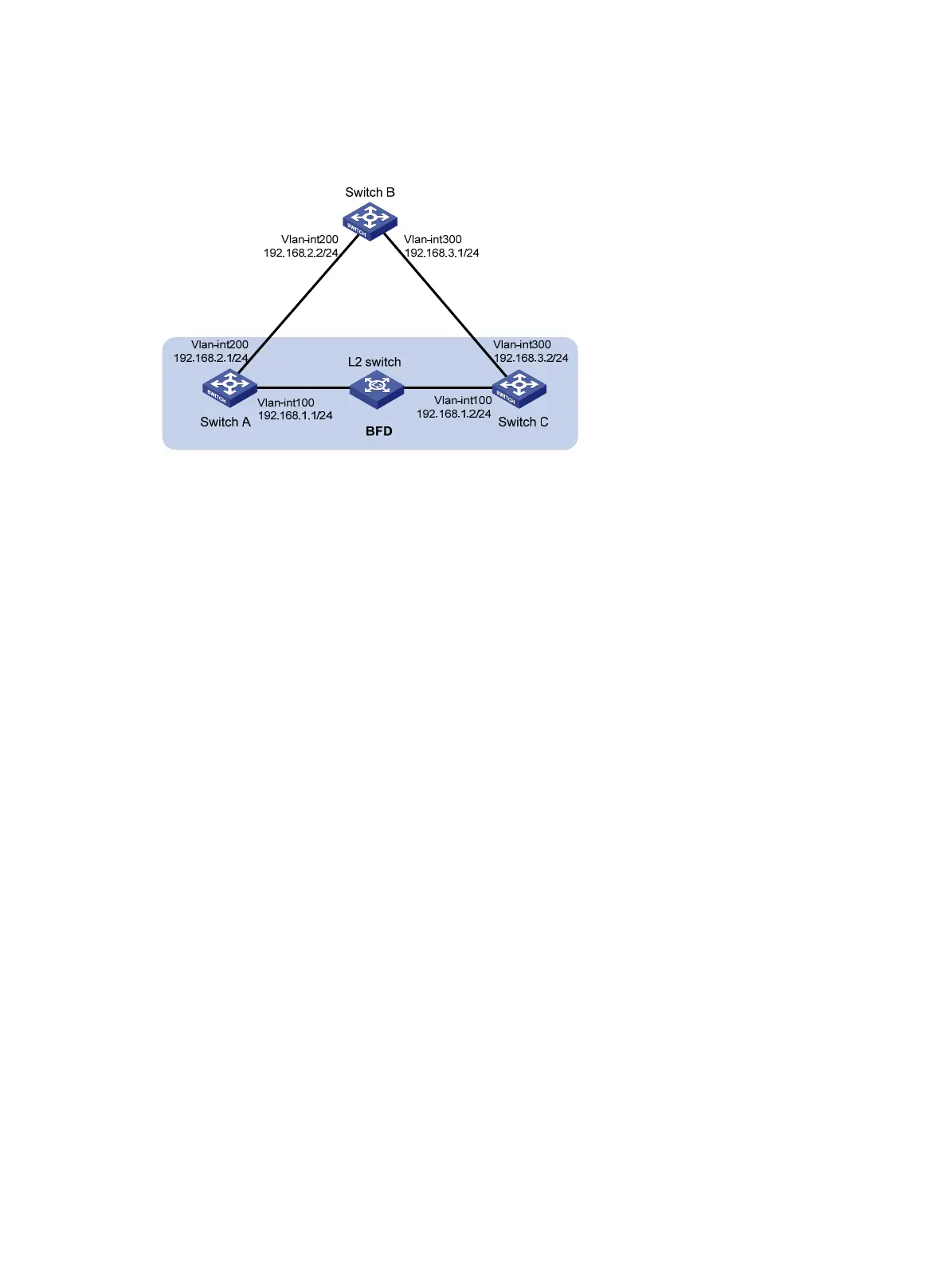

Figure 15 Network diagram

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure RIP basic functions:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] rip 1

[SwitchA-rip-1] version 2

[SwitchA-rip-1] undo summary

[SwitchA-rip-1] network 192.168.1.0

[SwitchA-rip-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] rip bfd enable

[SwitchA-Vlan-interface100] quit

[SwitchA] rip 2

[SwitchA-rip-2] version 2

[SwitchA-rip-2] undo summary

[SwitchA-rip-2] network 192.168.2.0

[SwitchA-rip-2] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] rip 1

[SwitchB-rip-1] version 2

[SwitchB-rip-1] undo summary

[SwitchB-rip-1] network 192.168.2.0

[SwitchB-rip-1] network 192.168.3.0

[SwitchB-rip-1] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] rip 1

[SwitchC-rip-1] version 2
