relationship with Switch C and the route information received from Switch C. Then, Switch A learns the

static route sent by Switch C, the output interface of the route is the interface connected to Switch D.

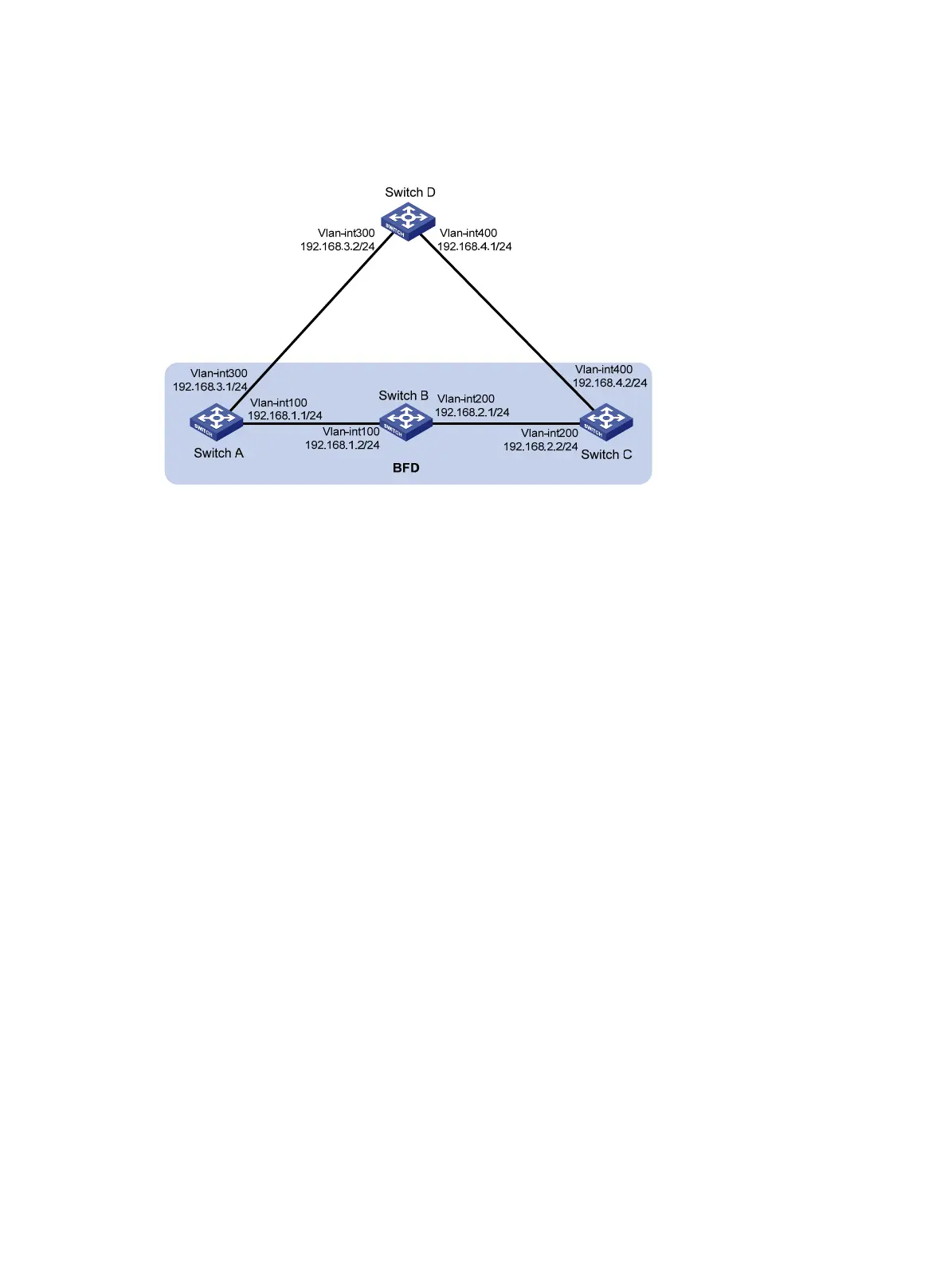

Figure 16 Network diagram

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure RIP basic functions and enable static route redistribution into RIP so that Switch A and

Switch C have routes to send to each other:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] rip 1

[SwitchA-rip-1] version 2

[SwitchA-rip-1] undo summary

[SwitchA-rip-1] network 192.168.1.0

[SwitchA-rip-1] peer 192.168.2.2

[SwitchA-rip-1] undo validate-source-address

[SwitchA-rip-1] import-route static

[SwitchA-rip-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] rip bfd enable

[SwitchA-Vlan-interface100] quit

[SwitchA] rip 2

[SwitchA-rip-2] version 2

[SwitchA-rip-2] undo summary

[SwitchA-rip-2] network 192.168.3.0

[SwitchA-rip-2] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] rip 1

[SwitchC-rip-1] version 2

[SwitchC-rip-1] undo summary

[SwitchC-rip-1] network 192.168.2.0

[SwitchC-rip-1] network 192.168.4.0
