Interface specifications
Table 57 Interface specifications
Item
Specification
Connector type
TNC: For connecting an antenna and accessing WLANs.
RJ-45: For connecting to a third-party WLAN debugging and testing software
such as CAIT of Qualcomm.
Number of connectors
2 TNC RF
1 RJ-45
Interface standard
TNC RF: Omni antenna, supporting GPRS/EDGE/UMTS/HSDPA.
RJ-45: RS232
Cable type
TNC RF: None
RJ-45: AUX cable
Rates
• HSDPA (downlink: 7.2 Mbps)
• HSUPA (uplink: 5.76 Mbps)
• UMTS (downlink: 384 Mbps, uplink: 384 Kbps)
• EDGE (downlink: 236.8 Kbps, uplink: 236.8 Kbps)
• GPRS (downlink: 85.6 Kbps, uplink: 85.6 Kbps)
Services GPRS/EDGE/UMTS/HSDPA
Supported wireless band
850/900/1900/2100MHz WCDMA/HSDPA/HSUPA
850/900/1800/1900MHz GPRS/EDGE
Interface LEDs

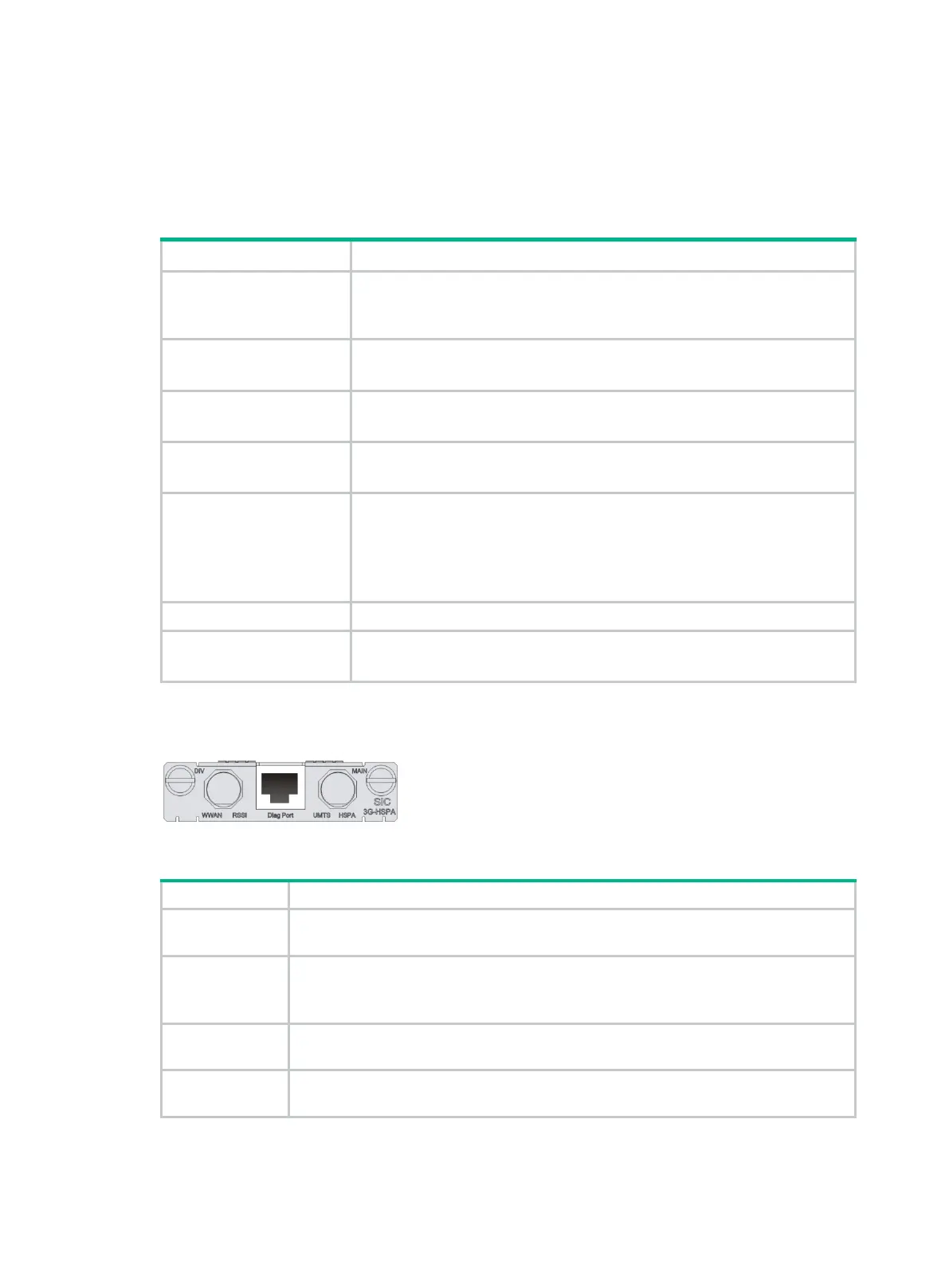

Figure 39 SIC-3G-HSPA+ panel
Table 58 LED description
LED
Description
WWAN
• Steady green means that a link is present.
• Flashing green means that data is being transmitted or received.
RSSI
• Steady green means strong signal.
• Flashing green means middle or low signal.
• Off means weak signal or no signal.
UMTS
• Steady yellow means the service is valid.
• Off means no service.
HSDPA
• Steady yellow means the service is valid.
• Off means no service.
