SIC-WLAN-b/g/n/SIC-WLAN-b/g/n(NA)
Introduction
The SIC-WLAN-b/g/n module receives and sends 802.11b/g/n WIFI protocol data. Two external
omnidirectional antennas are available on the module. The antennas follow the 802.11b/g/n
standard, work on the 2.4 GHz channel and support 2*2 radio MIMO.
The SIC-WLAN-b/g/n (NA) modules are applicable only in North America, and the area code is fixed
at NA. The other specifications for the SIC-WLAN-b/g/n (NA) modules are the same as the
SIC-WLAN-b/g/n modules.
Interface specifications
Table 51 Interface specifications
Item
Specification
Interface standard
Supports 802.11b/g/n standard.
Works at the 2.4 G band.
Rate
54 Mbps
300 Mbps (40 MHz)
130 Mbps(20 MHz)
Operating mode CCK+ OFDM + 2*2 Radio MIMO
Services
WLAN Layer 2/Layer 3 access
WLAN encryption
WLAN security
Interface LEDs

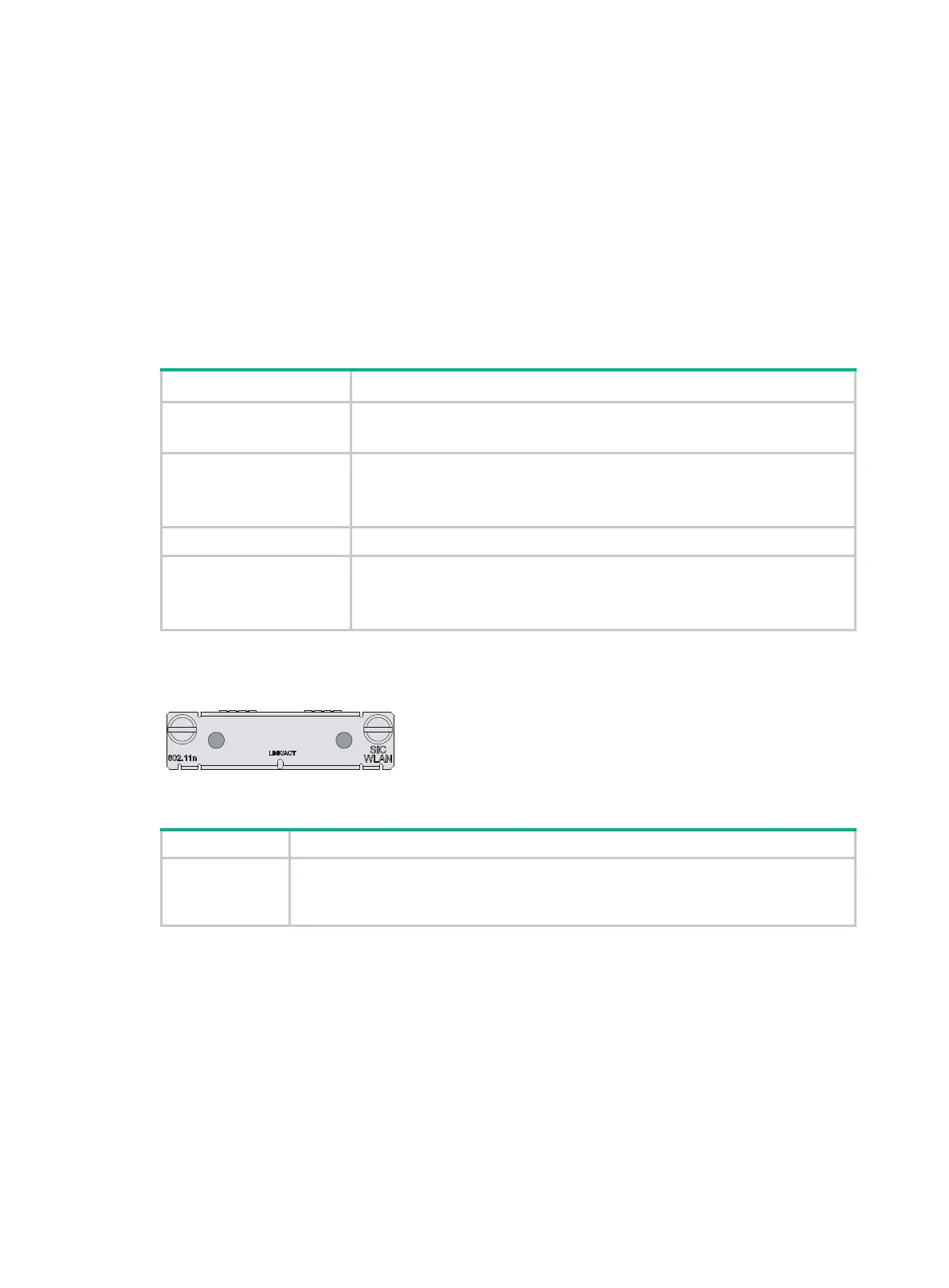

Figure 36 SIC-WLAN-b/g/n panel
Table 52 LED description
LED
Description
LINK/ACT
• Off means the link is idle.
• Steady green means a link is present and a call connection is being established.
• Flashing yellow means a link is present and there is a call activity.
Interface cables and connection methods
For more information about WLAN interface cables and connection methods, see "WLAN interface."
3G interface module
• SIC-3G-GSM
• SIC-3G-HSPA
• SIC-3G-HSPA+
