Compared with ADSL, G.SHDSL allows longer transmission distance and has a wider application
scope. It is an alternative to E1/T1 line for high-speed data service access. However, because
TCPAM uses the band starting from 0 Hz for data transmission, G.SHDSL cannot share the same
line with POTS or ISDN.
The MIM-1SHL-4W provides the following features:
• Manual G.SHDSL line activation/deactivation and easy-to-use fault location tools.
• G.991.2 interface standard and auto-sensing.
• Allows you to set the dual-pair G.SHDSL interface to operate in dual-pair or single-pair mode.
Interface specifications
Table 101 Interface specifications
Item
Specification
Connector RJ-11
Number of connectors 1
Interface standard
ITU-T G991.2
ITU-T G994.1 handshaking
Interface rate
In single-pair mode, supports the sending and receiving independent
symmetric rates in the range from 192 kbps to 2312 kbps in steps of 8
kbps.
In dual-pair mode, supports the sending/receiving independent
symmetric rates in the range from 384 kbps to 4624 kbps in steps of 16
kbps.
Interface cable Tailor-made 4-wire telephone cable
Supported services G.SHDSL access over ordinary telephone lines
Interface LEDs

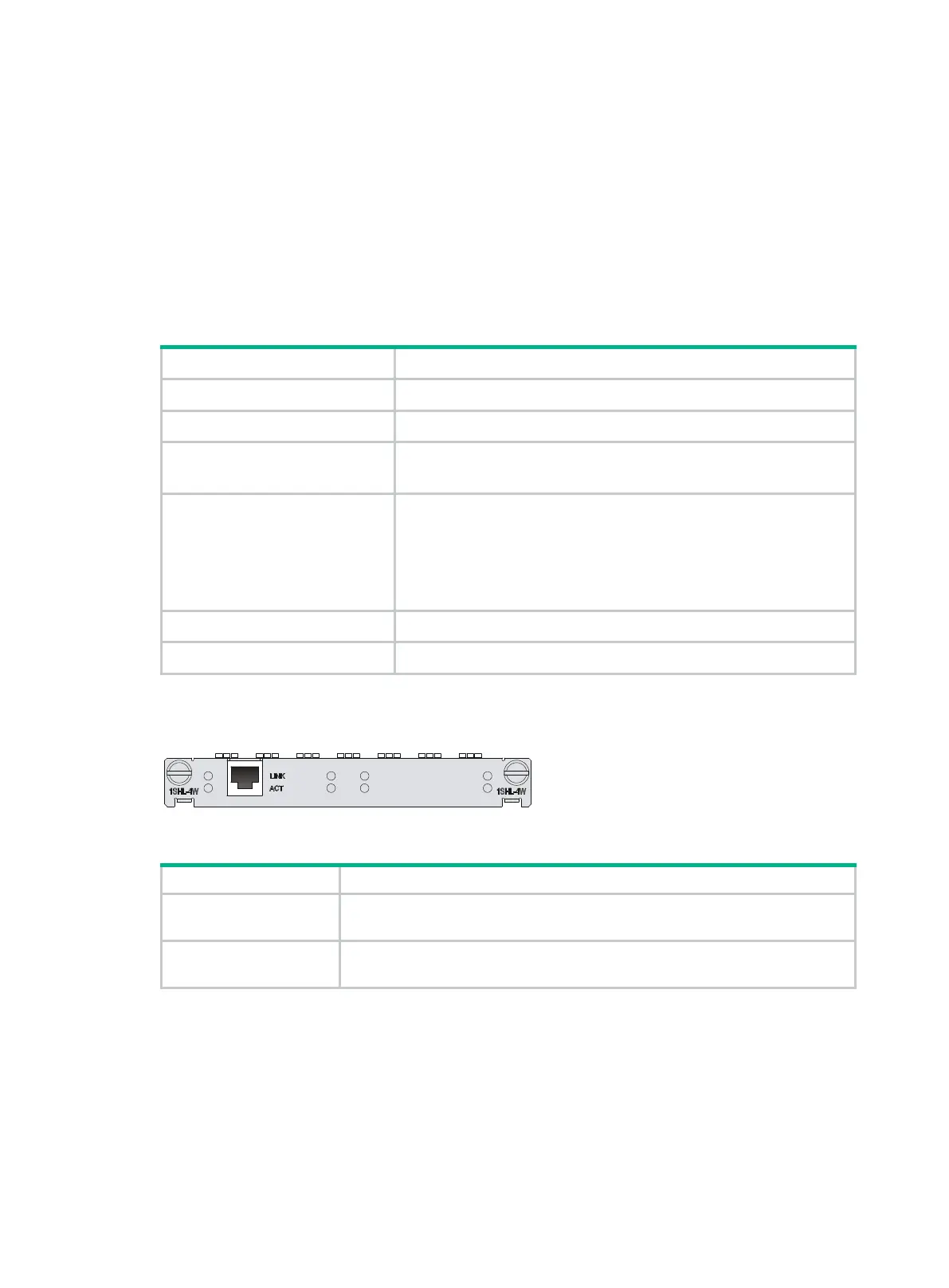

Figure 70 MIM-1SHL-4W panel
Table 102 LED description
LED
Description
LINK
• Off means no link is present.
• On means a link is present.
ACT
• Off means no data is being transmitted or received.
• Flashing means data is being received or transmitted.
Interface cables and connection methods
For more information about G.SHDSL interface cables and connection methods, see "G.SHDSL
interface."
Serial interface module
• MIM-2SAE
