MIM/DMIM/XMIM
The MSR series routers provide a wide range of optional MIM/DMIMs. The MIM/DMIMs provide
interfaces such as synchronous/asynchronous serial interface, Ethernet interface, E1/T1, ISDN
BRI/PRI, audio interface, and Layer 2 switching interface.
The MIM-16FSW and the DMIM-24FSW support PoE to provide –48 VDC power to remote PDs
such as IP phone, AP, and network camera through straight-through network cables when installed
in a PoE router.
Ethernet switching module
• MIM-16FSW
• MIM-16FSW-PoE
• DMIM-24FSW
• DMIM-24FSW-PoE
• XMIM-16FSW
• XMIM-24FSW
XMIM-16FSW/XMIM-24FSW
Introduction
The 16/24-port 10/100 Mbps Ethernet Layer 2 switching MIM interface modules (XMIM-16FSW and
XMIM-24FSW) can be installed on the MSR30-11. Both the XMIM-16FSW and XMIM-24FSW are
suitable for a small enterprise network to act as a switching & routing device, which can be directly
connected to PCs and network devices of the enterprise.
Interface specifications
Table 71 Interface specifications
Connector type RJ-45
Interface type MDI/MDIX
Number of
connectors
16/24 × 100 Mbps RJ-45 connector
Transmission
distance
100 m (328.08 ft) over category-5 twisted pair cables (both crossover and
straight-through)
Operating mode 10/100 Mbps auto-sensing, full duplex/half duplex
Interface LEDs

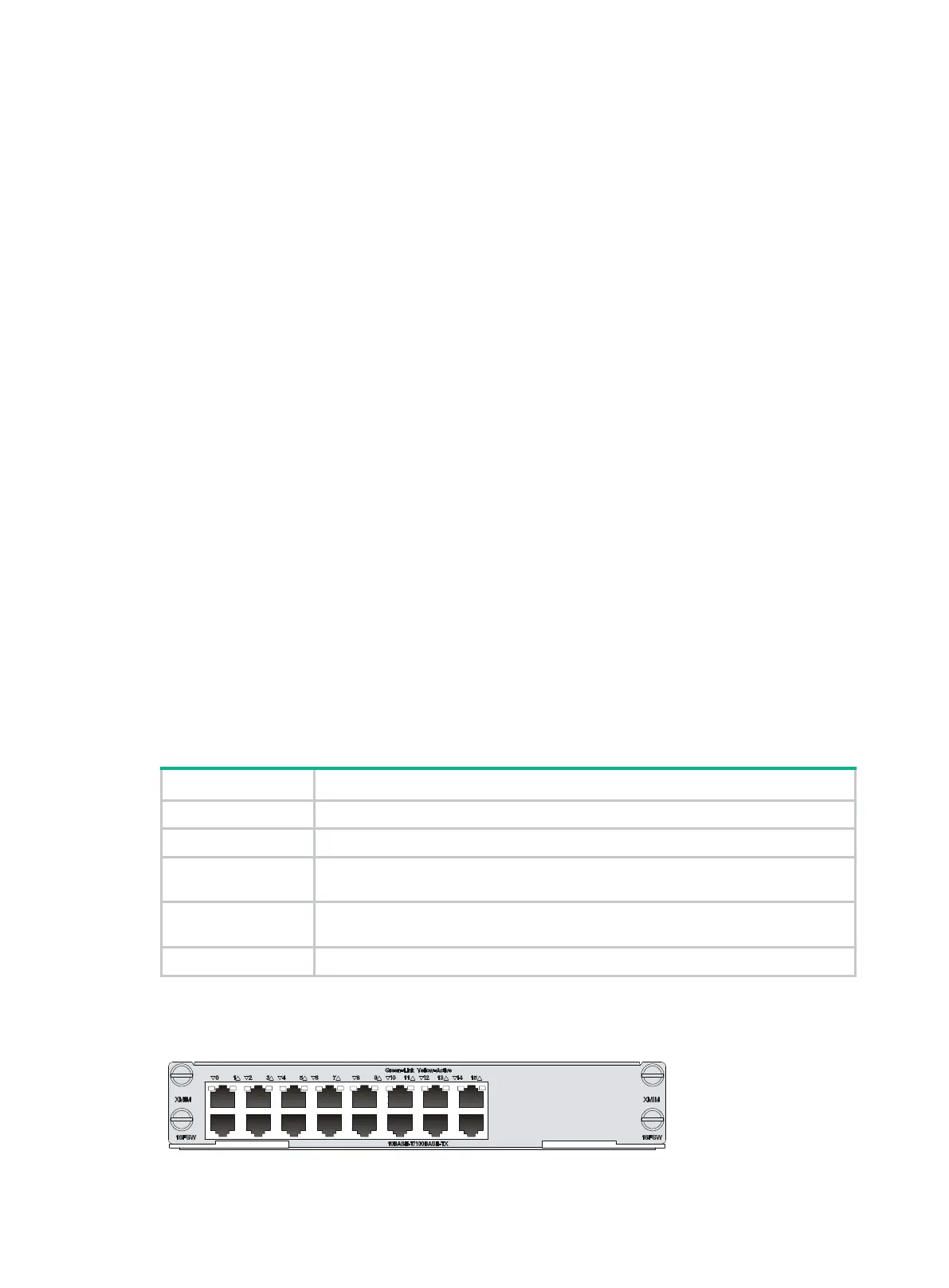

Figure 46 XMIM-16FSW panel
