5
SIC-1FEA
Introduction
The 1-port 10Base-T/100Base-TX Ethernet interface module (SIC-1FEA) implements
communication between Routers and LANs.
Interface specifications
Table 8 Interface specifications
Connector RJ-45
Interface type MDI
Number of connectors 1
Transmission distance
100 m (328.08 ft) over category-5 twisted pair cables (both
crossover and straight-through)
Operating mode 10/100 Mbps autosensing, full duplex/half duplex
Interface LEDs

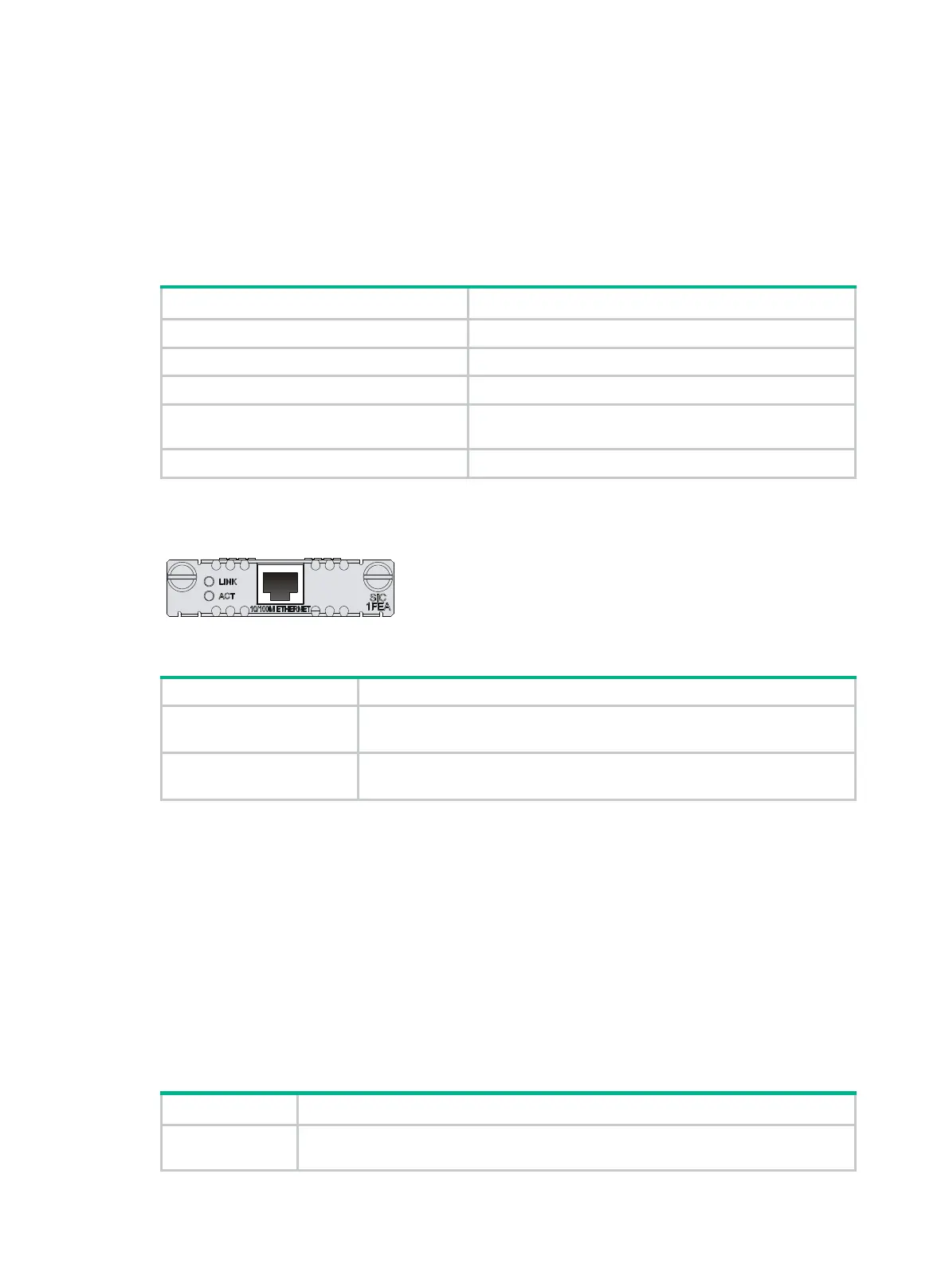

Figure 8 SIC-1FEA panel
Table 9 LED description
LINK
• Off means no link is present;
• On means a link is present.
ACT
• Off means no data is being transmitted or received;
• Flashing means data is being received or/and transmitted.
Interface cables and connection methods
For more information about the Ethernet interface cables and connection methods, see "Ethernet
interface."
SIC-1FEF
Introduction
The 1-port 100 Mbps fiber Ethernet interface module (SIC-1FEF) implements communication
between the router and LAN.
Interface specifications
Table 10 Interface specifications
Number of
connectors
1
