63
Interface standard G.703, G.704, G.751
Interface rate 34.368 Mbps
Interface cable type E3/T3 cable (75-ohm coaxial cable)
Operating mode
E3
CE3
Supported service E3 leased line
Interface LEDs

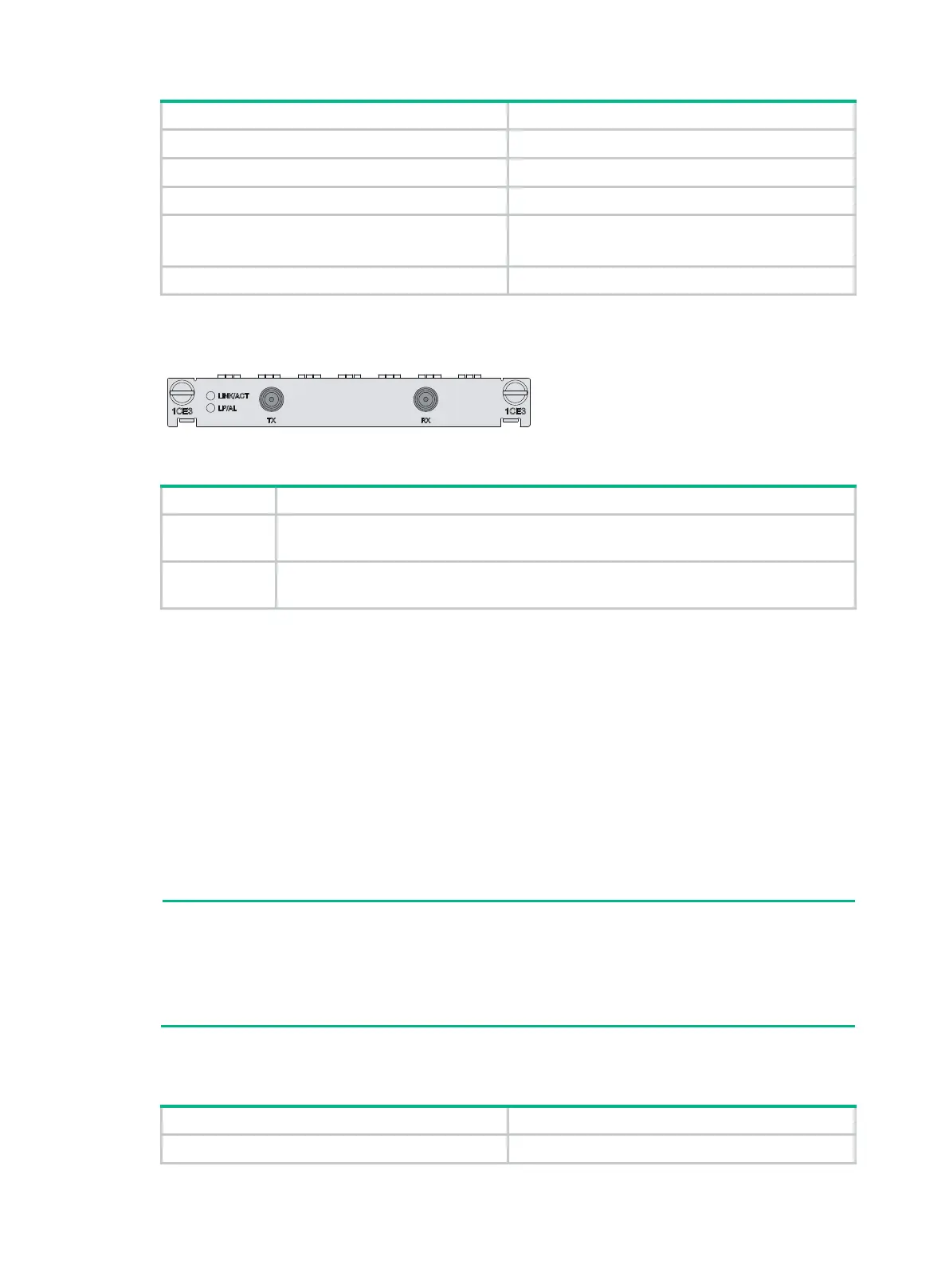

Figure 68 MIM-1CE3 panel
Table 98 LED description
LINK
• Off means the link is not set up.
• On means the link has been set up.
ACT
• Off means no data is being transmitted or received;
• Flashing means data is being received or/and transmitted.
Interface cables and connection methods
For more information about E3 interface cables and connection methods, see "E3/T3 interface."
MIM-1CT3
Introduction
The 1-port channelized T3 interface module (MIM-1CT3) provides the following features:
• Transmits and receives and handles one channel of T3 fast traffic, and provides access to T3
traffic when operating in T3 mode
• Provides low-speed accessing service at n × 64 kbps or 56 kbps when operating in CT3 mode.
n is smaller than or equal to 128.
T3 represents the tertiary group rate
(44.736 Mbps)
of T system in the TDM system. A T3 channel
can be channelized into 28 T1 lines through the demultiplexing processes of T23 and T12
. E
s the operating modes of CT1. T23 is used to indicate either T2-to-
-to-T2 demultiplex, and T12 to indicate T1-to-T2 multiplex or T2-to-T1 demultiplex. "T23" and
"T12" discussed here represent the demultiplex process.
Interface specifications
Table 99 Interface specifications
Connector SMB
