HPE FlexNetwork MSR Series Guide

80
LED
Description
ACT
• Off means no data is being transmitted or received on the interface.
• Flashing means data is being transmitted and/or received.
Fiber ports, optical fibers, and the connection methods
For more information about fiber ports, optical fibers, and the connection methods, see "Fiber port."
Ethernet interface module
• HMIM-2GEE
• HMIM-4GEE
• HMIM-8GEE
• HMIM-2GEF
• HMIM-4GEF
• HMIM-8GEF
HMIM-2GEE/HMIM-4GEE/HMIM-8GEE
Introduction
The HMIM-GEE module completes the communication between a router and a LAN. It includes the
following types:
• HMIM-2GEE—2-port 10Base-T/100Base-TX/1000Base-T Ethernet electrical interface module
• HMIM-4GEE—4-port 10Base-T/100Base-TX/1000Base-T Ethernet electrical interface module
• HMIM-8GEE—8-port 10Base-T/100Base-TX/1000Base-T Ethernet electrical interface module
Interface specifications
Table 127 Interface specifications
Item
HMIM-2GEE
HMIM-4GEE
HMIM-8GEE
Connector type RJ-45
Number of connectors 2 4 8
Interface type MDI/MDIX
Interface standard 802.3, 802.3u, and 802.3ab
Transmission
distance
100 m (328.08 ft) over category-5 twisted pair cables (both crossover and
straight-through)
Operating mode 10/100/1000 Mbps autosensing, full duplex/half-duplex
Interface LEDs

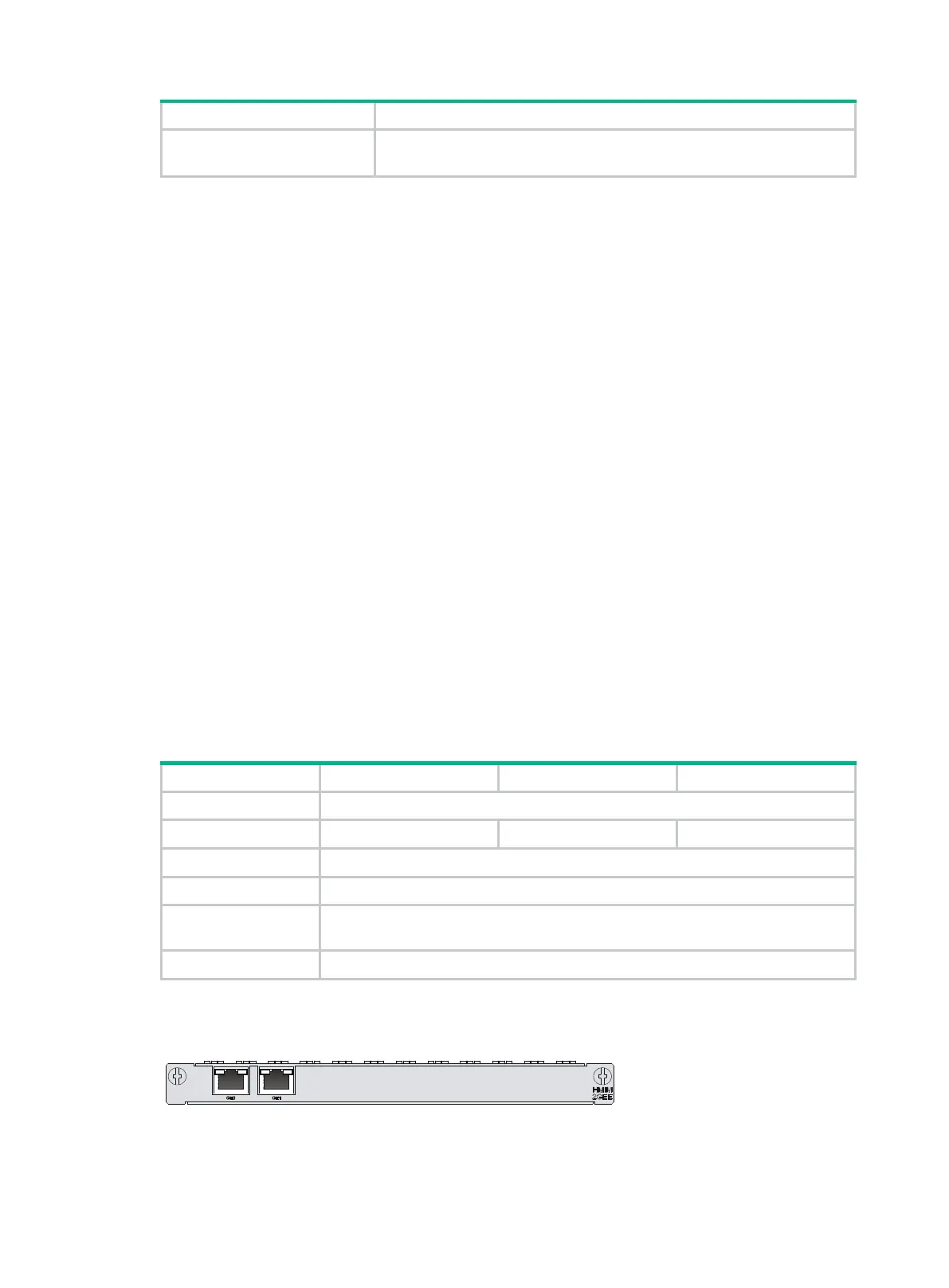

Figure 90 HMIM-2GEE panel
