Interface specifications
Table 175 Interface specifications
Item
FIC-1GEF
FIC-2GEF
Connector SFP
Number of
interfaces
1 2
Interface standard 802.3, 802.3u, 802.3ab
Operating mode 1000 Mbps, full duplex
Interface LEDs

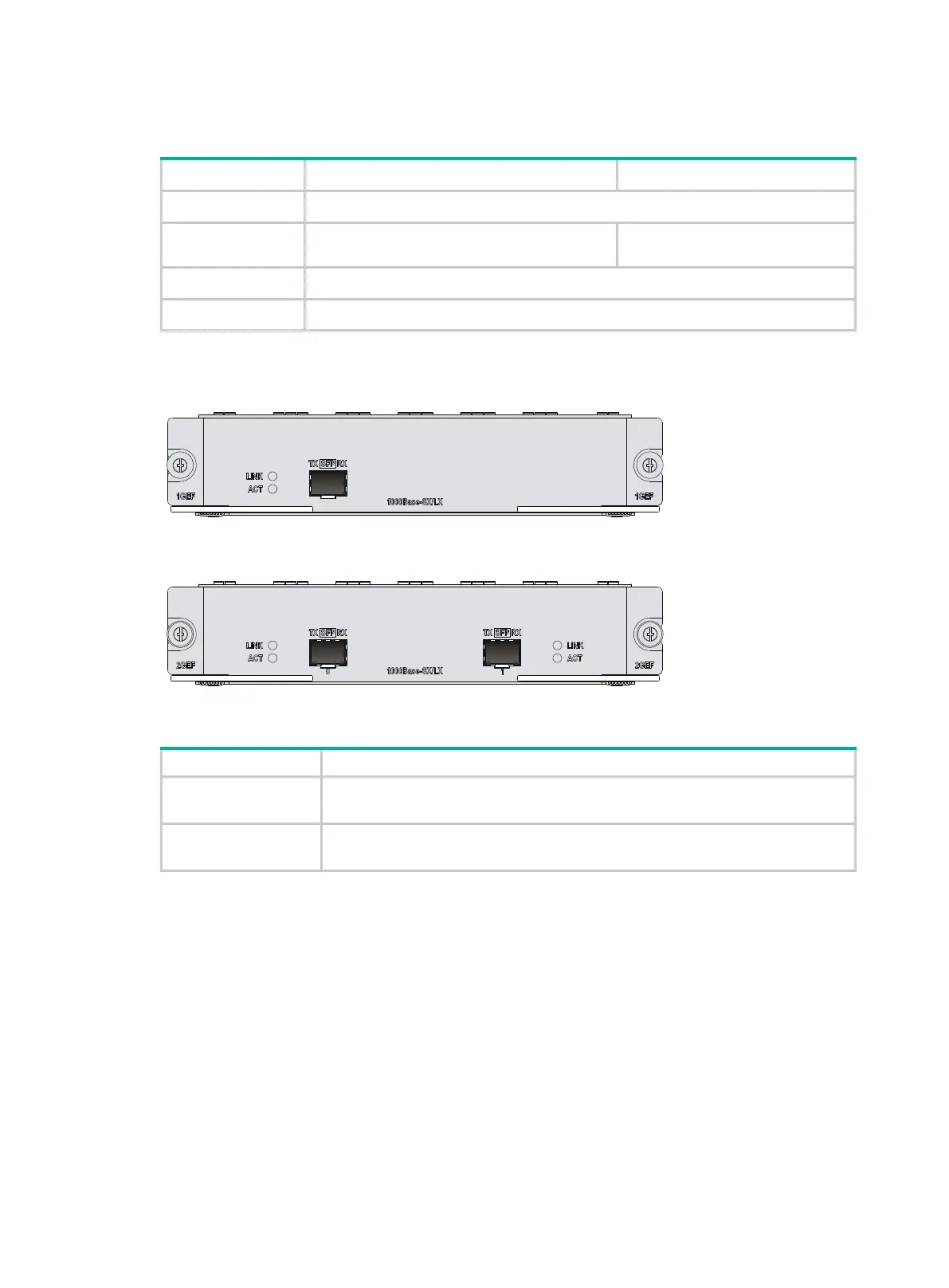

Figure 130 FIC-1GEF panel
Figure 131 FIC-2GEF panel
Table 176 LED description
LED
Description
LINK
• Off means no link is present;
• On means a link is present.
ACT
• Off means no data is being transmitted or received;
• Flashing means data is being received or/and transmitted.
Fiber ports, optical fibers, and the connection method
For more information about fiber ports, optical fibers, and the connection methods, see "Fiber port."
ATM interface module
• FIC-IMA-4E1
• FIC-IMA-8E1
• FIC-1AE3
• FIC-1AT3
• FIC-1ATM-OC3
