Interface cables and connection methods
For more information about synchronous/asynchronous serial port cables, see
"Synchronous/asynchronous serial ports."
HMIM-16ASE
Introduction
The 16-port ASE module (HMIM-16ASE) is an enhanced asynchronous serial interface module that
transmits, receives, and handles asynchronous serial interface data streams. It uses RJ-45
connectors and AUX cables.
Interface specifications
Table 151 Interface specifications
Connector type RJ45
Number of connectors 16
Interface standard and
operating mode
RS232
cable type
• AUX cable
• Standard (straight-through) Ethernet cable
• HMIM-16ASE dumb terminal cable
Minimum baud rate (bps) 300
Maximum baud rate (bps) 115.2 k
Supported services
• Dialup through Modem
• Backup
• Terminal access service
• Asynchronous leased line service
Interface LEDs

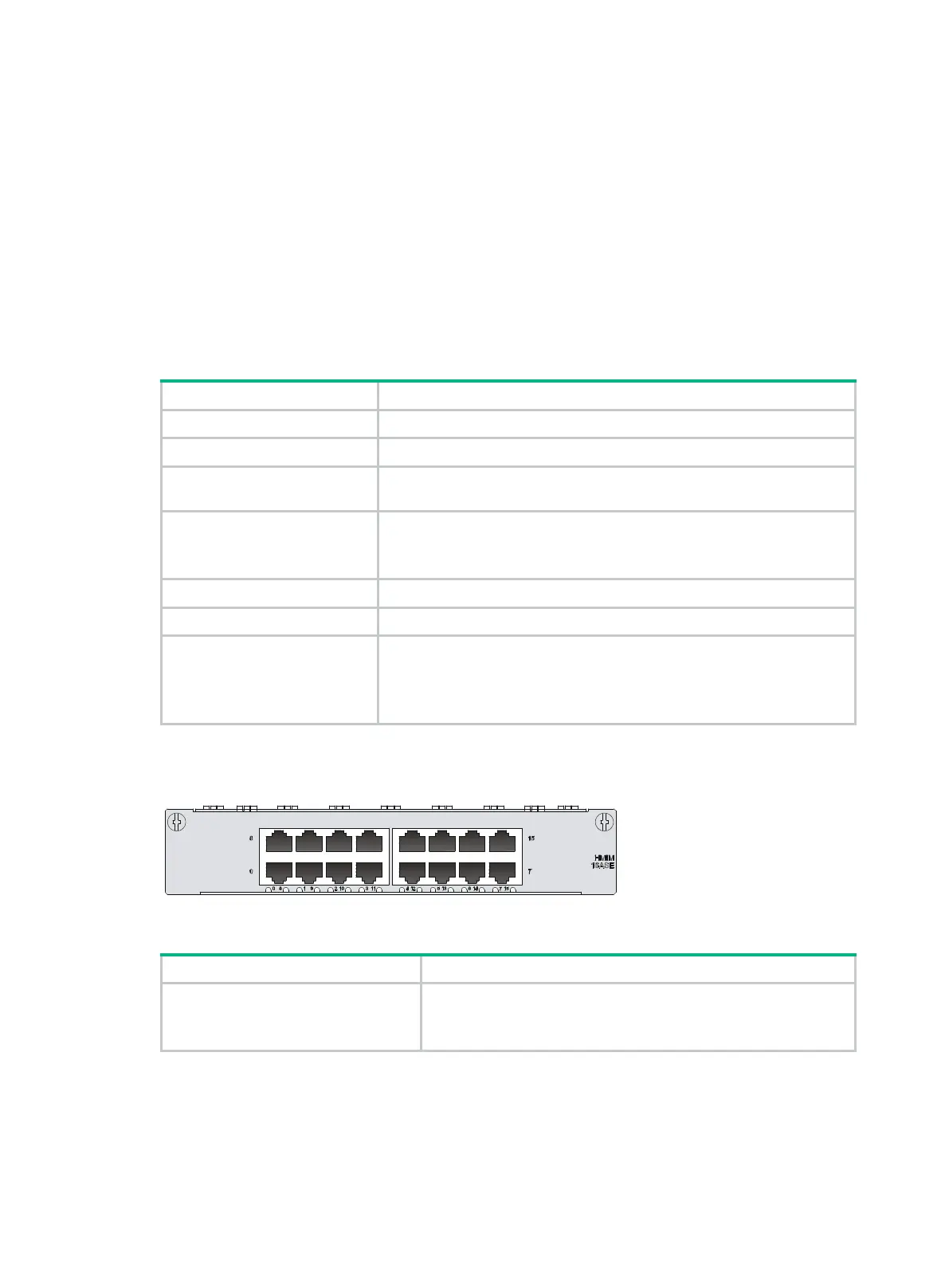

Figure 113 HMIM-16ASE panel
Table 152 LED description
N/A
• On means a link is present.
• Off means no link is present.
• Flashing means data is being received or/and transmitted.
Interface cables and the connection methods
For more information about asynchronous serial port cables, see "Asynchronous serial ports."
