Item
Synchronous
Asynchronous
Minimum baud rate (bps) 1200 1200 300
Maximum baud rate (bps) 64 k 2.048 M 115.2
cable type
V.24 (RS232) DTE cable
V.24 (RS232) DCE cable
V.35 DTE cable
V.35 DCE cable
X.21 DTE cable
X.21 DCE cable
RS449 DTE cable
RS449 DCE cable
RS530 DTE cable
RS530 DCE cable
Supported services
• DDN leased line
• Terminal access service
• Dialup through
modems
• Backup
• Asynchronous
leased line
• Dumb terminal
access
Interface LEDs

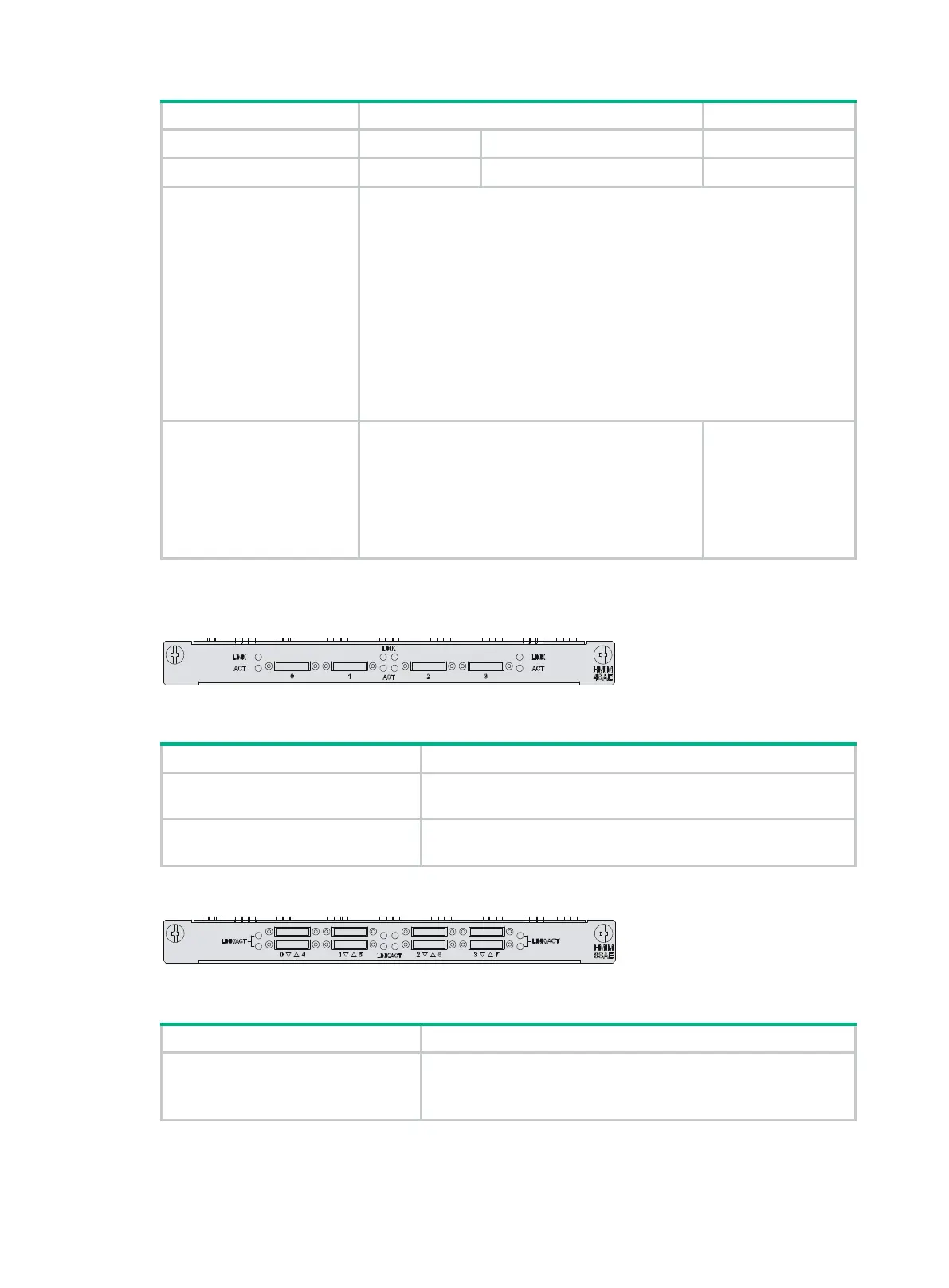

Figure 111 HMIM-4SAE panel
Table 149 LED description
LED
Description
LINK
• Off means no link is present.
• On means a link is present.
ACT
• Off means no data is being transmitted or received.
• Flashing means data is being received or/and transmitted.
Figure 112 HMIM-8SAE panel
Table 150 LED description
LED
Description
LINK/ACT
• On means a link is present.
• Off means no data is being transmitted or received.
• Flashing means data is being received or/and transmitted.
