Interface specifications
Table 173 Interface specifications
Item
FIC-1GBE
FIC-2GBE
Connector RJ-45
Number of connectors 1 2
Interface type MDI/MDIX
Interface standard 802.3, 802.3u, and 802.3ab
Transmission distance
100 m (328.08 ft) over category-5 twisted pair cables (both crossover
and straight-through)
Operating mode 10/100/1000 Mbps auto-sensing, half-duplex/full duplex
Interface LEDs

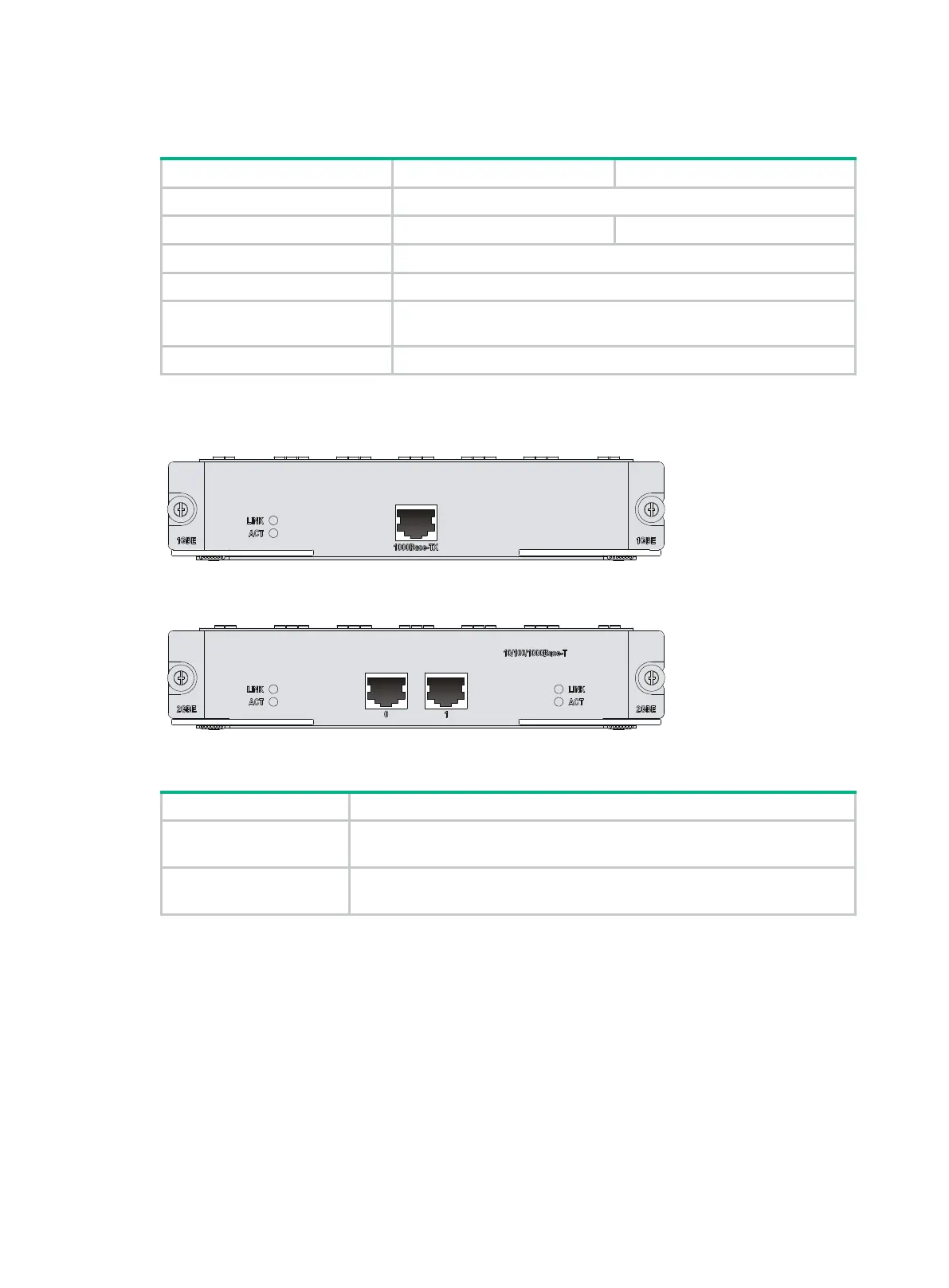

Figure 128 FIC-1GBE panel
Figure 129 FIC-2GBE panel
Table 174 LED description
LED
Description
LINK
• Off means no link is present;
• On means a link is present.
ACT
• Off means no data is being transmitted or received.
• Flashing means data is being transmitted and/or received.
Fiber ports, optical fibers, and the connection method
For more information about fiber ports, optical fibers, and the connection methods, see "Fiber port."
FIC-1GEF/FIC-2GEF
Introduction
The 1-port/2-port 1000Base-SX/1000Base-LX GE optical interface module (The
FIC-1GEF/FIC-2GEF) is used for router-to-LAN communication. The FIC-1GEF/FIC-2GEF supports
multiple transceiver modules.
