HPE FlexNetwork MSR Series Guide

107
Item
Specification
FIC-2FE
FIC-4FE
Connector RJ-45
Number of connectors 2 4
Transmission distance
100 m (328.08 ft) over category-5 twisted pair cables (both crossover
and straight-through)
Operating mode 10/100 Mbps auto-sensing, full duplex/half-duplex
Supported frame format
Ethernet_II
Ethernet_SNAP
Interface LEDs

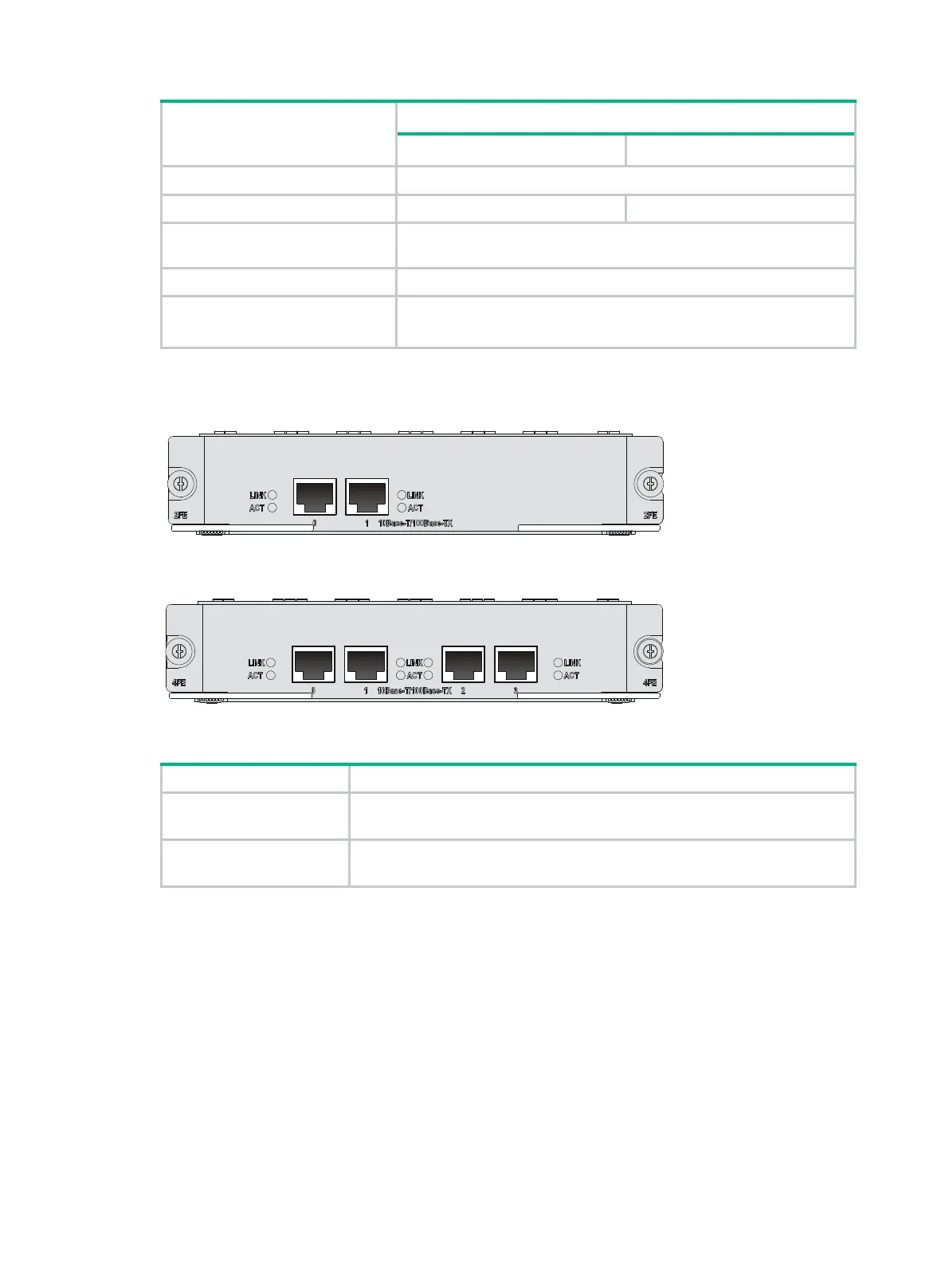

Figure 126 FIC-2FE panel
Figure 127 FIC-4FE panel
Table 172 LED description
LED
Description
LINK
• Off means no link is present;
• On means a link is present.
ACT
• Off means no data is being transmitted or received on the interface.
• Flashing means data is being transmitted and/or received.
Interface cables and connection methods
For more information about the Ethernet interface cables and connection methods, see "Ethernet
interface."
FIC-1GBE/FIC-2GBE
Introduction
The 1-port/2-port 10Base-T/100Base-TX/1000Base-T Ethernet electrical interface module
(FIC-1GBE/FIC-2GBE) is used for router-to-LAN communication.
