Interface cables and connection methods
For more information about E1 interface cables, see "E1 interface."
SIC-2E1-F
Introduction
The 2-port fractional E1 interface module (fractional) provides the following features:
• Transmission/Receiving and handling of E1 data streams
• CE1 (channelized E1) access
• Remote loopback and local loopback functions, facilitating fault test and location.
The FE1 operating mode supported by the SIC-2E1-F module allows only one bundle. The time slots
can only be bundled into one n × 64 kbps channel, where n is in the range of 1 to 31.
The SIC-2E1-F does not support the PRI mode.
Interface specifications
Table 17 Interface specifications
Connector type D15
Number of connectors 1
Interface standard G.703, G.704
Interface rate 2.048 Mbps
Cable type 75-ohm unbalanced coaxial cable (D15 to BNC)
Operating modes
E1
CE1
Supported services
Backup
Terminal access
Interface LEDs

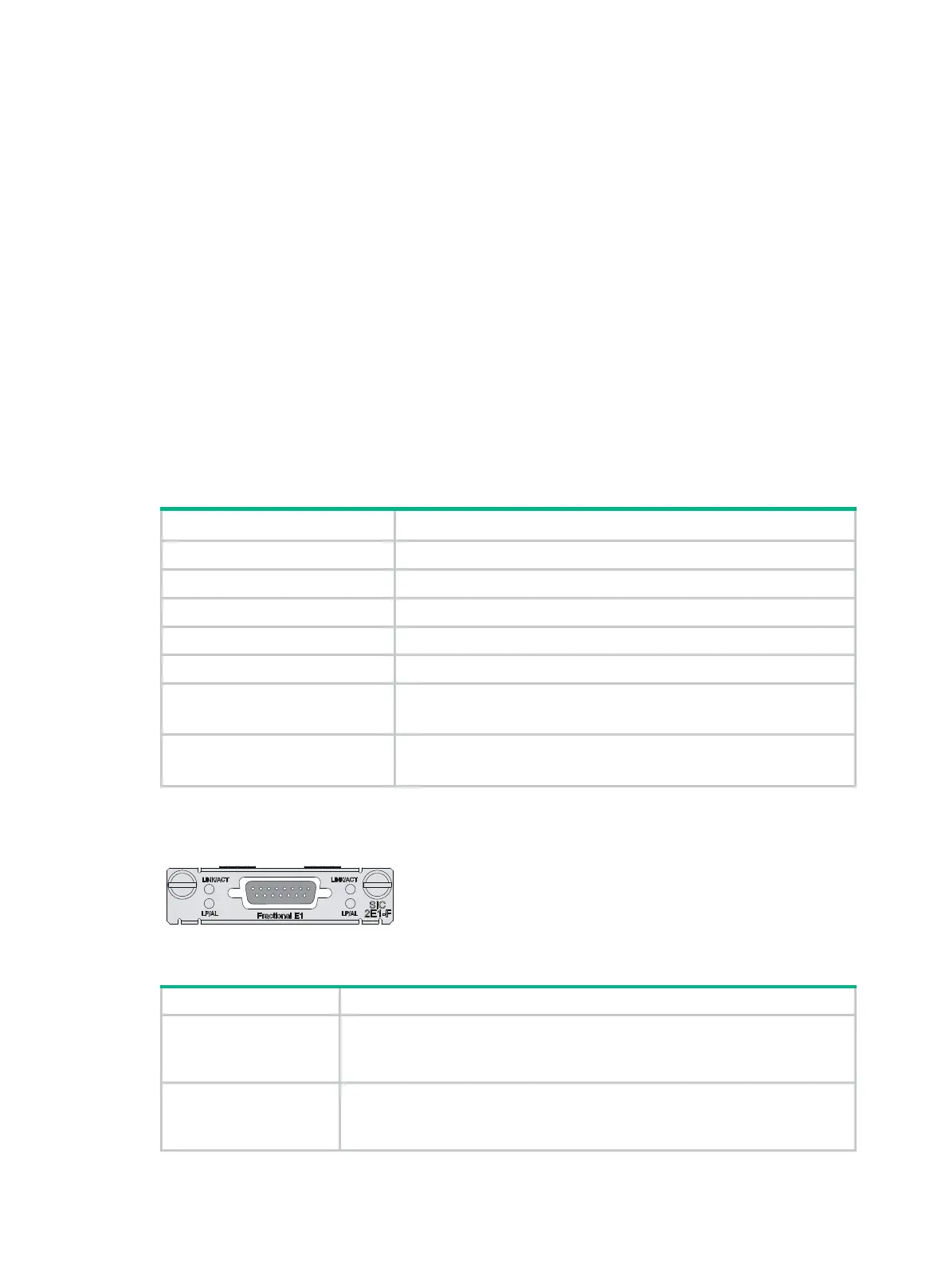

Figure 13 SIC-2E1-F panel
Table 18 LED description
LINK/ACT
• On means carrier signal has been received.
• Flashing means data is being transmitted or received.
• Off means no carrier signal has been received.
LP/AL
• On means the interface is in a loopback.
• Flashing means an AIS, LFA, or RAI alarm signal is present.
• Off means neither loopback nor alarm is present.
