128
Interface LEDs

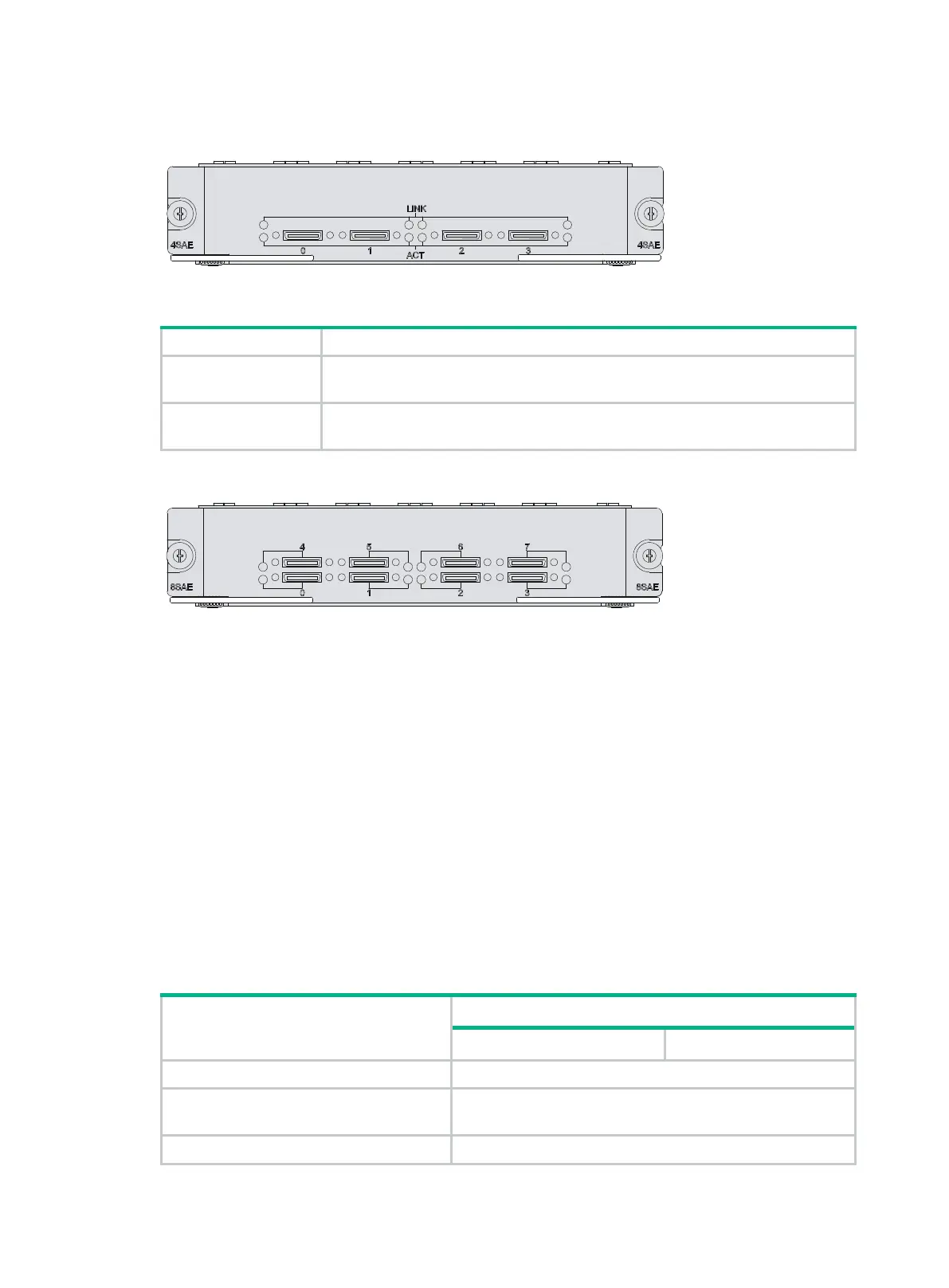

Figure 149 FIC-4SAE panel
Table 206 LED description
LINK
• Off means no link is present;
• On means a link is present.
ACT
• Off means no data is being transmitted or received.
• Flashing means data is being transmitted and/or received.
Figure 150 FIC-8SAE front panel
On the FIC-8SAE panel, each link has a LED. On means a link is present. Flashing means data is
being transmitted and/or received.
Interface cables and connection methods
For more information about asynchronous serial port cables, see "Asynchronous serial ports."
FIC-8ASE/FIC-16ASE
Introduction
The 8-/16-port enhanced asynchronous serial interface module (FIC-8ASE/FIC-16ASE) transmits,
receives, and processes data traffic on asynchronous serial interfaces. Each asynchronous serial
interface can operate at 115.2 kbps, supporting terminal access service and asynchronous leased
line. In addition, these asynchronous serial interfaces can act as the dialup access servers for the
small and medium-sized ISPs to interconnect eight or 16 LANs through asynchronous dialup lines.
Interface specifications
Table 207 Interface specifications
Item
Connector RJ-45
Number of connectors
• 8 (FIC-8ASE)
• 16 (FIC-16ASE)
Interface standard and operating mode RS232
