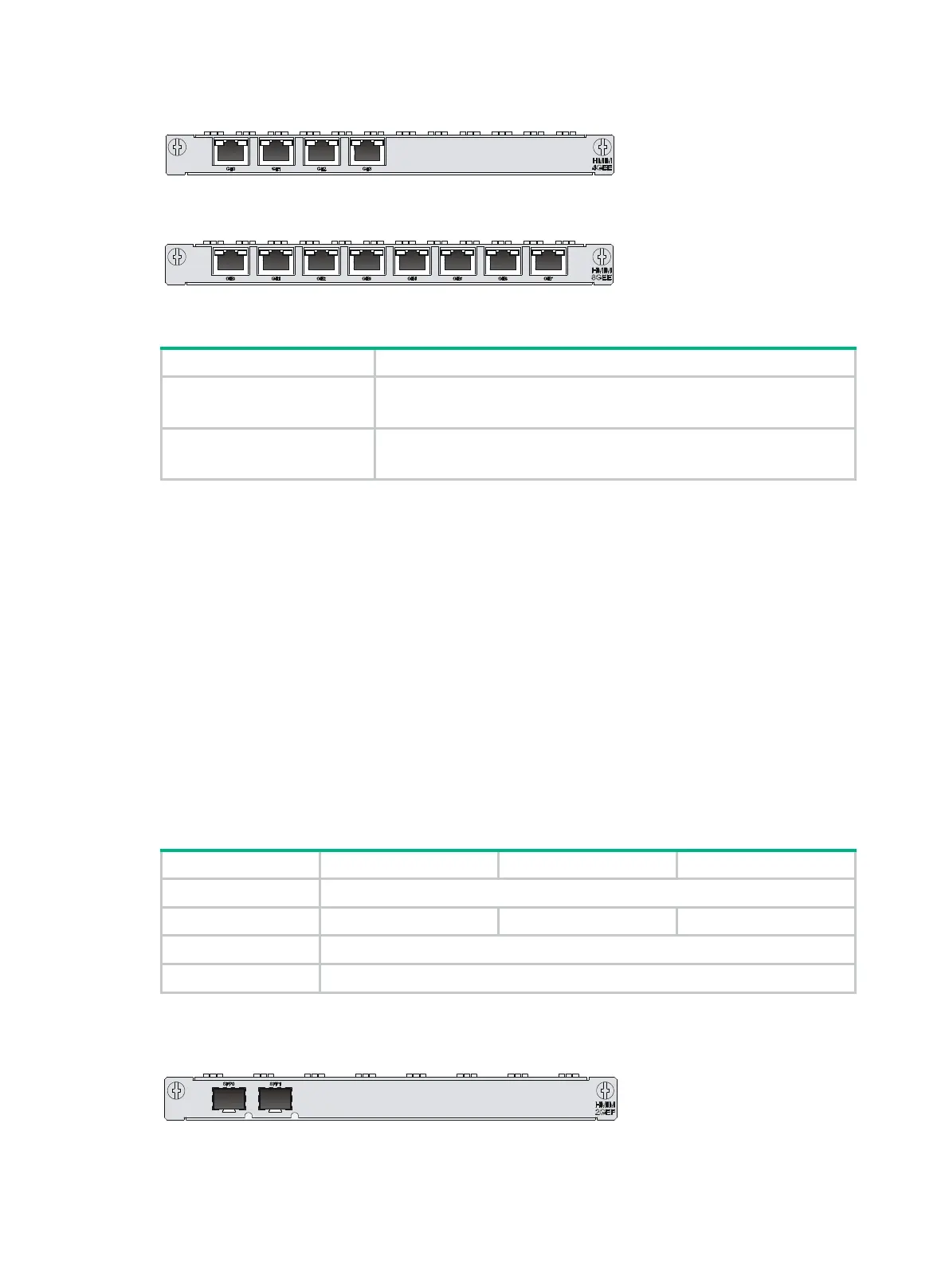

Figure 91 HMIM-4GEE panel
Figure 92 HMIM-8GEE panel
Table 128 LED description
LED
Description
LINK
Off means no link is present.
On means a link is present.
ACT
Off means no data is being transmitted or received on the interface.
Flashing means data is being transmitted and/or received.
Interface cables and connection methods
For more information about the Ethernet interface cables and connection methods, see "Ethernet
interface."
HMIM-2GEF/HMIM-4GEF/HMIM-8GEF
Introduction
The HMIM-GEF module completes the communication between a router and a LAN. It includes the
following types:
• HMIM-2GEF—2-port 10Base-T/100Base-TX/1000Base-T Ethernet optical interface module
• HMIM-4GEF—4-port 10Base-T/100Base-TX/1000Base-T Ethernet optical interface module
• HMIM-8GEF—8-port 10Base-T/100Base-TX/1000Base-T Ethernet optical interface module
Interface specifications
Table 129 Interface specifications
Item
HMIM-2GEF
HMIM-4GEF
HMIM-8GEF
Connector type SFP/LC
Number of connectors 2 4 8
Interface standard 802.3, 802.3u, and 802.3ab
Operating mode 1000 Mbps, full duplex
Interface LEDs
Figure 93 HMIM-2GEF panel
