Interface specifications
Table 41 Interface specifications
Item
Specification
Connector type RJ-11
Number of connectors
4 FXS interfaces
1 FXO interface
Interface standard
• Supports subscriber circuit interface (FXS), compliant with ITU Q.512
• Supports loop trunk interface (FXO), compliant with ITU Q.552
• Over-current and over-voltage protection compliant with ITU K.20
Cable type Telephone cable with ferrite core
Dial-up mode Supports DTMF, compliant with GB3378, but does not support pulse dial-up.
Bandwidth 300 Hz to 3400 Hz
Interface LEDs

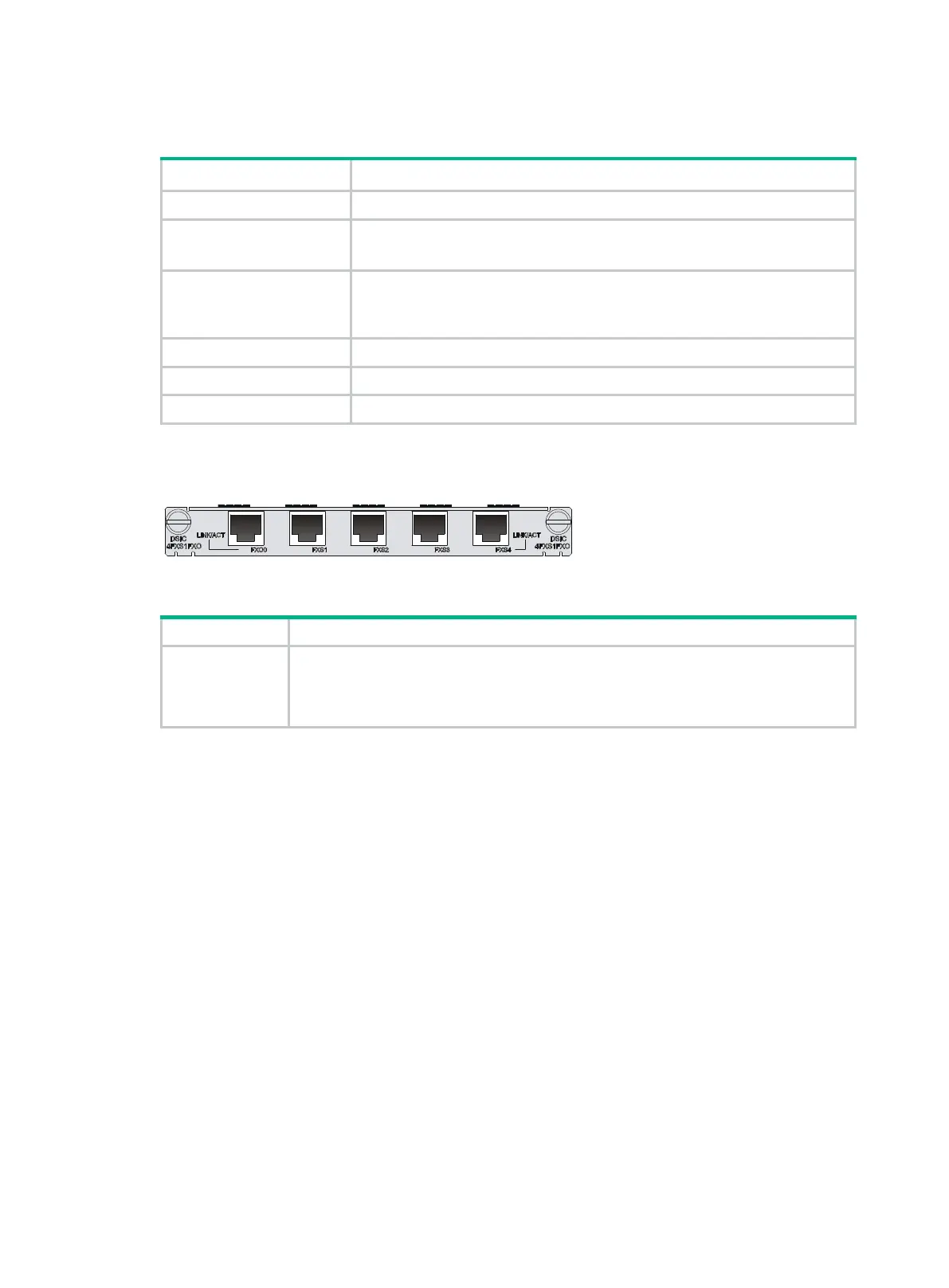

Figure 30 DSIC-4FXS1FXO panel
Table 42 LED description
LED
Description
LINK/ACT
• Off means the link is idle.
• On (Green) means the link is being occupied for call connection.
• Flashing (Yellow) means the link is being occupied for communication.
Interface cables and connection methods
For more information about FXS/FXO interface cables and connection methods, see
"ADSL/BS/FXS/FXO/AM/FCM interface."
SIC-1BSV/SIC-2BSV
Introduction
The 2-port ISDN BRI S/T voice interface module (SIC-2BSV) processes ISDN interface voice traffic.
The interfaces on the SIC-2BSV module are ITU-T I.430-compliant. They use pseudo-ternary coding,
provide 192 Kbps interface rate, and allow a maximum transmission distance of 1 km (0.6 miles) in
point-to-point mode. In the upstream direction, the SIC-2BSV module can be connected to a user
interface on an ISDN switch to receive and decompress, compress and transmit ISDN BRI digital
voice traffic. In the downstream direction, the module can be connected to a TE device to forward
voice packets from the TE device to the Internet through a WAN interface on the router to implement
VoIP. The module provides the following features:
• A BSV interface supports user and network modes for connecting an ISDN network and a TE
device, respectively.
• When a BSV interface operates in network mode, traffic is processed as follows:
 The digital voice traffic received on the BSV interface is compressed and forwarded through
the CPU on the main processing unit (MPU) to a WAN interface.
