FIC-1VE1
Introduction
The 1-port E1 voice interface module (FIC-1VE1) handles dense voice signals in VoIP system. It
provides a CE1/PRI/R2 port that allows access of a maximum of 30 channels of voice signals.
Interface specifications
Table 218 Interface specifications
Connector D15
Number of connectors 1
Operating mode
CE1
ISDN PRI
R2
Interface rate 2.048 Mbps
Cable
• E1 120-ohm balanced twisted pair cable
• 75ohm-to-120ohm adapter
• Network interface connector
Supported service
• R2 signaling
• DSS1 signaling
• IP Fax
• General VoIP features in Comware
Interface LEDs

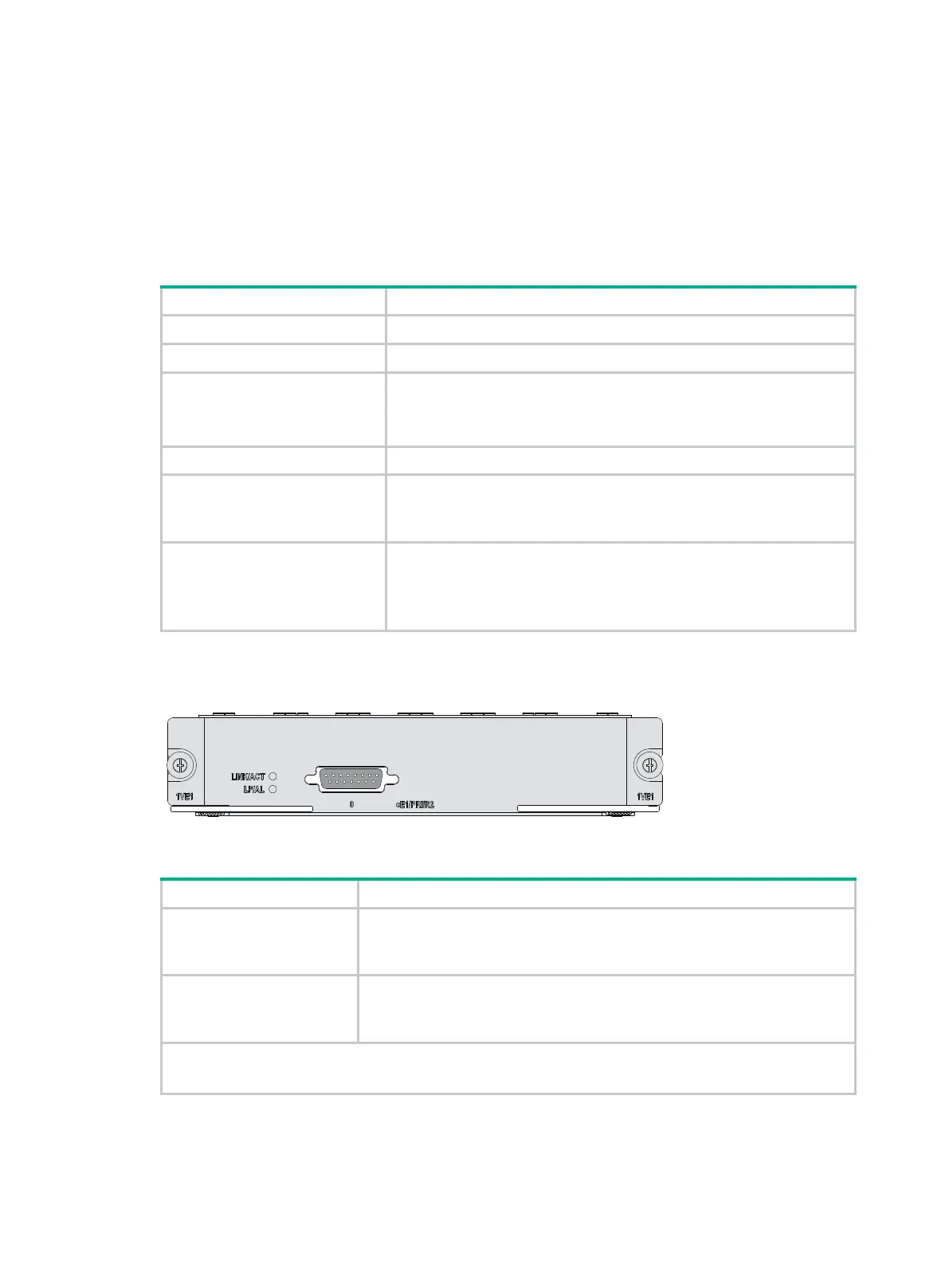

Figure 159 FIC-1VE1 panel
Table 219 LED description
LINK/ACT
• On means carrier signal has been received.
• Flashing means data is being received or/and transmitted.
• Off means no carrier signal has been received.
LP/AL
• On means the interface is in a loopback.
• Flashing means an AIS, LFA, or RAI alarm signal is present.
• Off means no loopback or alarm is present.
Note:
AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication
Interface cables and connection methods
For more information about E1 interface cables and connection methods, see "E1 interface."
