Interface LEDs

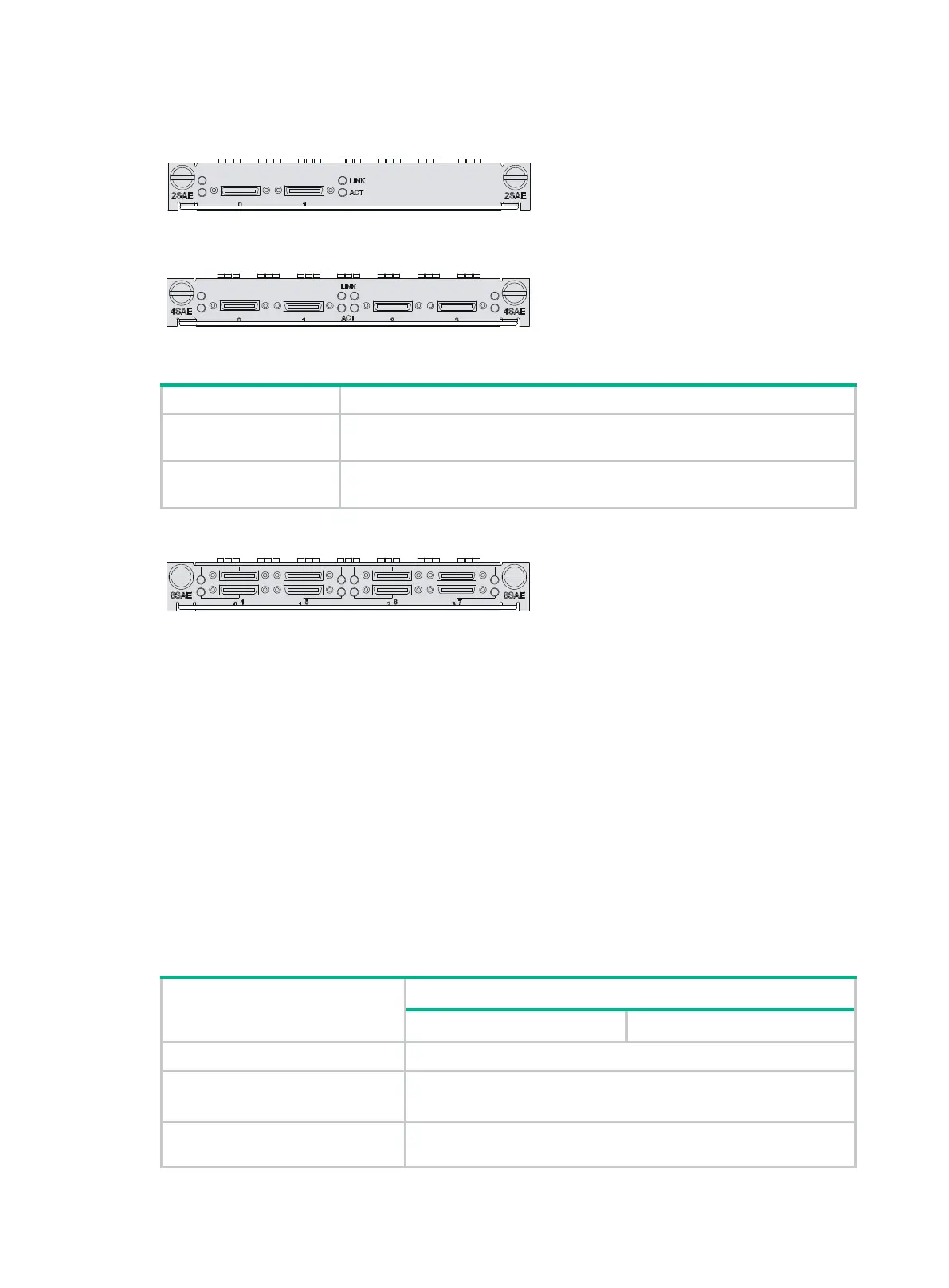

Figure 71 MIM-2SAE panel
Figure 72 MIM-4SAE panel
Table 104 LED description
LED
Description
LINK
• Off means no link is present;
• On means a link is present.
ACT
• Off means no data is being transmitted or received;
• Flashing means data is being received or/and transmitted.
Figure 73 MIM-8SAE panel
On the MIM-8SAE module, each link has one LED. On means the link is connected. Flashing means
data is being transmitted or received.
Interface cables and connection methods
For more information about synchronous/asynchronous serial port cables, see
"Synchronous/asynchronous serial ports."
MIM-8ASE/MIM-16ASE
Introduction
The 8/16-port enhanced asynchronous serial interface module (MIM-8ASE/MIM-16ASE) transmits,
receives, and handles asynchronous serial interface data streams. The ASE modules use RJ-45
connectors and AUX cables.
Interface specifications
Table 105 Interface specifications
Item
Specification
MIM-8ASE module
MIM-16ASE module
Connector RJ-45
Number of connectors
8 (MIM-8ASE)
16 (MIM-16ASE)
Interface standard and operating
mode
RS232
