HPE FlexNetwork MSR Series Guide

33
Item
Specification
Supported wireless band
850/900/1900/2100MHz WCDMA/HSDPA/HSUPA
850/900/1800/1900MHz GPRS/EDGE
Interface LEDs

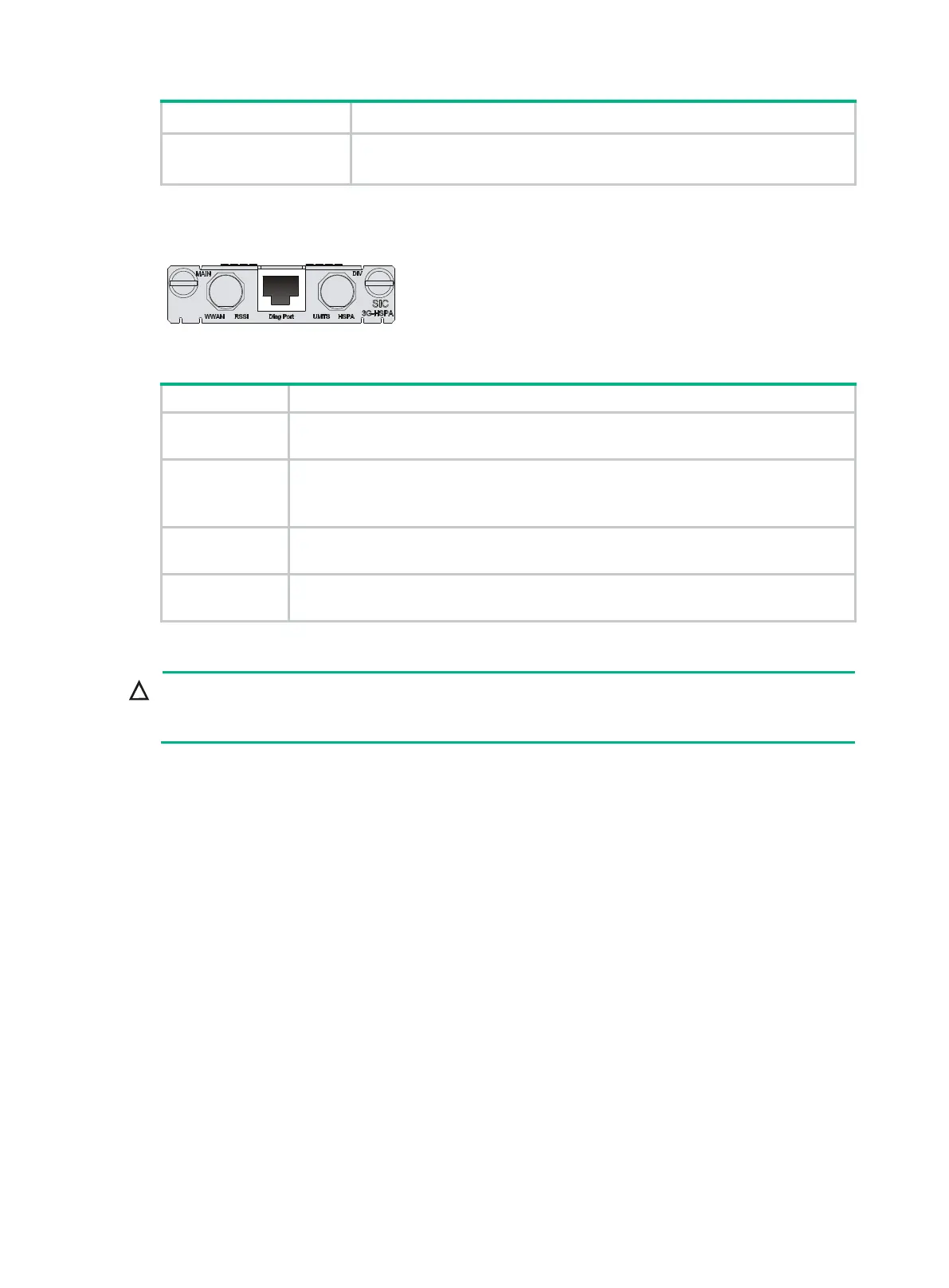

Figure 38 SIC-3G-HSPA panel
Table 56 LED description
LED
Description
WWAN
• Steady green means that a link is present.
• Flashing green means that data is being transmitted or received.
RSSI
• Steady green means strong signal.
• Flashing green means middle or low signal.
• Off means weak signal or no signal.
UMTS
• Steady yellow means the service is valid.
• Off means no service.
HSDPA
• Steady yellow means the service is valid.
• Off means no service.
Antenna, interface cables, and connection methods
CAUTION:
T
he 3G antenna provided with the SIC-3G-HSPA must be installed on the antenna
port that has a
MAIN mark.
For more information about SIC-3G-HSPA Interface cables and connection methods, see "WLAN
interface."
Installing a SIM card
1. Push the 3G SIM card holder in the direction marked "OPEN" so the holder projects upwards.
Do not insert the 3G SIM card to the card holder before projecting the card holder up. Do not
forcibly lift the holder.
2. Insert the 3G SIM card along the slide rails to the holder.
3. Put down the holder and push the holder in the direction marked "LOCK" to lock the card in
position.
4. Position the 3G SIM card socket cover and fasten the screws on the cover.
5. Execute the display cellular [slot]/0 all command after the router is started. When "SIM Status
= OK" appears in the output information, the SIM card is identified.
SIC-3G-HSPA+
Introduction
The SIC-3G-HSPA+ module provides access to 3G networks. It provides the following features:
• GPRS
