16
XDSL interface module
• DSIC-1SHDSL-8W
• SIC-1ADSL
• SIC-1ADSL-I
DSIC-1SHDSL-8W
Introduction
The 1-port 8-wire (4-pair) high-speed digital subscriber line interface module (DSIC-1SHDSL-8W)
supports symmetric link rate of up to 22.76 Mbps.
The G. SHDSL provides symmetric uplink and downlink and transmission rates of 192 kbps to 2312
kbps. Developed from G. SHDSL, the G.SHDSL.BIS provides a higher-speed negotiation rate and
supports scalability of multi-pair wires in addition to the functions of the G. SHDSL.
The DSIC-1SHDSL-8W provides the following features:
• Communications in the ATM/EFM mode.
• Manual and automatic switchover between the ATM and EFM mode.
• Supports using four, three, two, and one pair(s) of wires.
Interface specifications
Table 29 Interface specifications
Connector RJ-45
Number of connectors 1
Interface standard
ITU-T G991.2 ANNEX A, ANNEX B, ANNEX F, ANNEX G
ITU-T G994.1 handshaking
Interface rate
• 5.69 Mbps (1 pair mode)
• 11.38 Mbps (2 pair mode)
• 17.07 Mbps (3 pair mode)
• 22.76 Mbps (4 pair mode)
Cable
Telephone cable with ferrite core (one RJ-45 connector converts to two
RJ-11 connectors.)
Operating mode
• ATM
• EFM
Supported services G.SHDSL over the regular telephone line
Interface LEDs

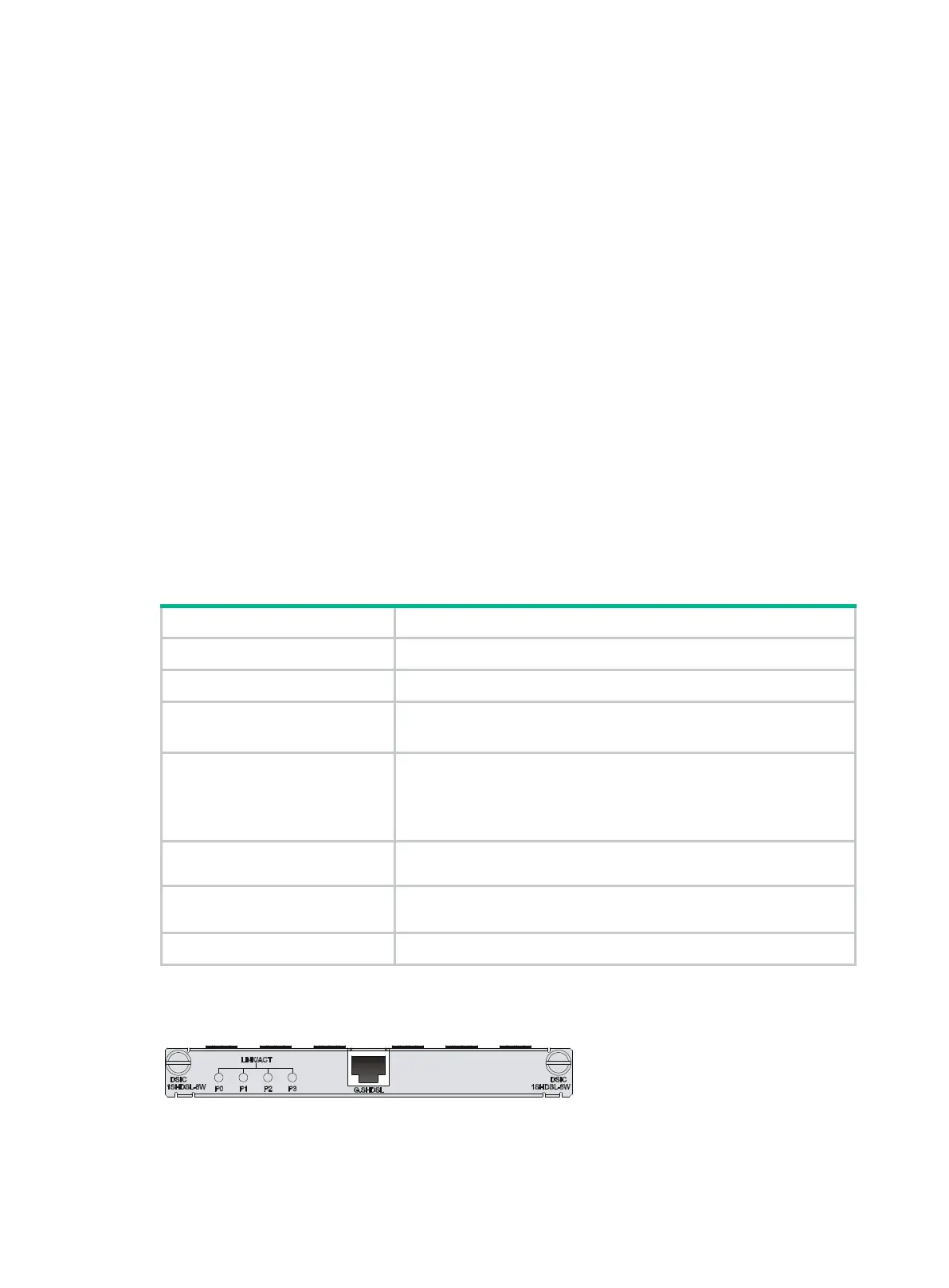

Figure 21 DSIC-1SHDSL-8W panel
